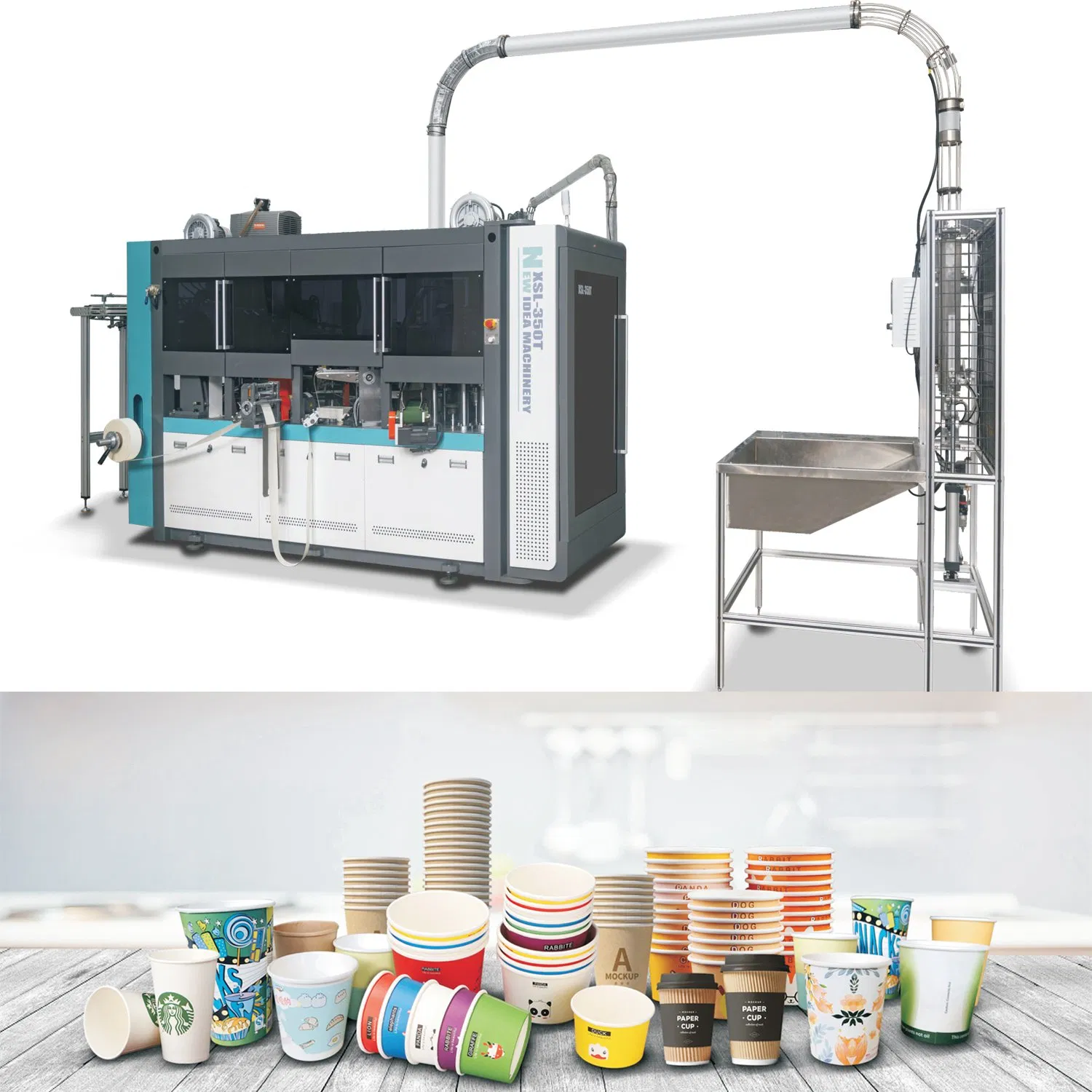

XSL-350T paper cup machine utilizes a tabletop layout, which isolates the forming parts and transmission parts. All transmission parts use longitudinal shafts, barrel indexing cams, and gear transmissions. The transmission components are lubricated by spray.

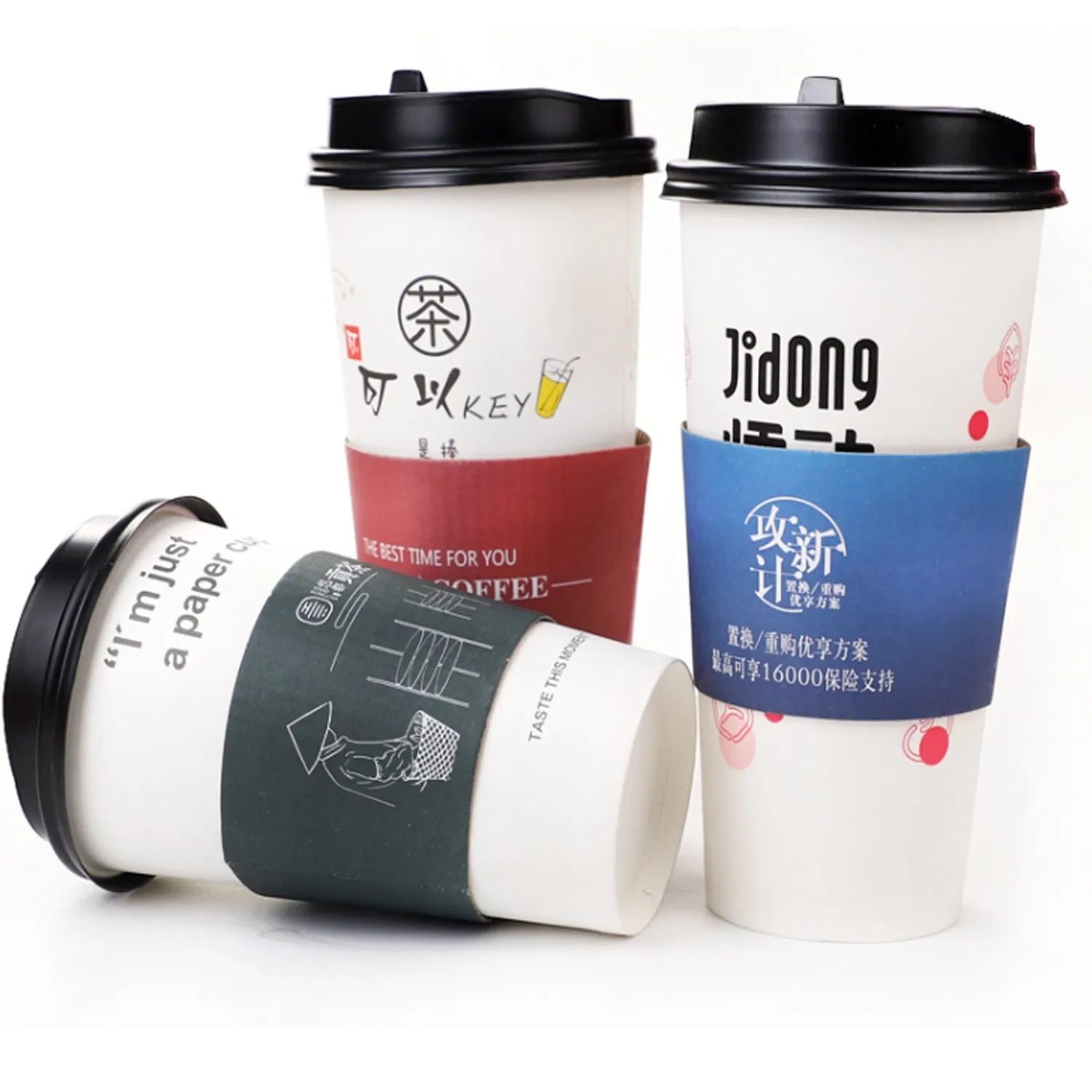

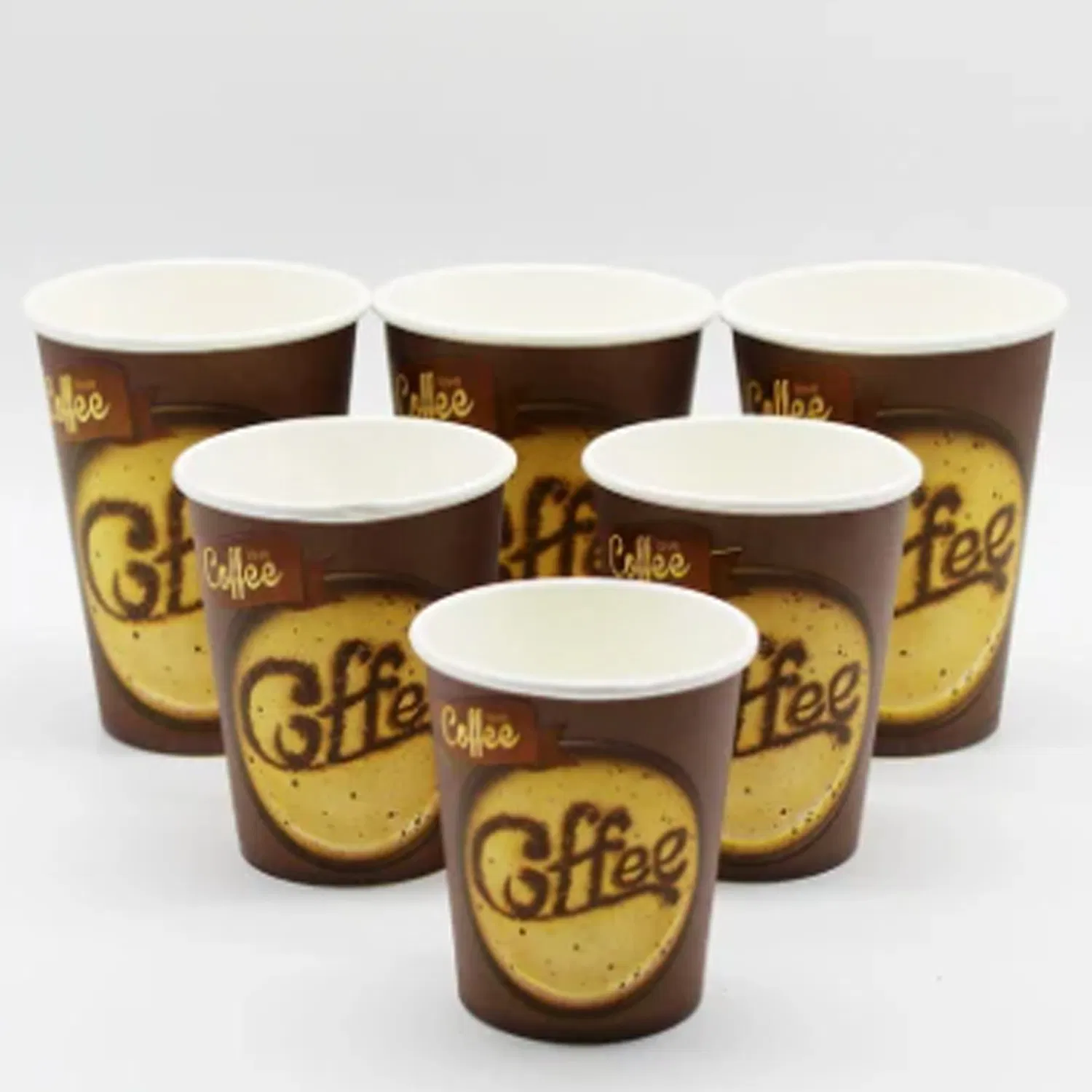

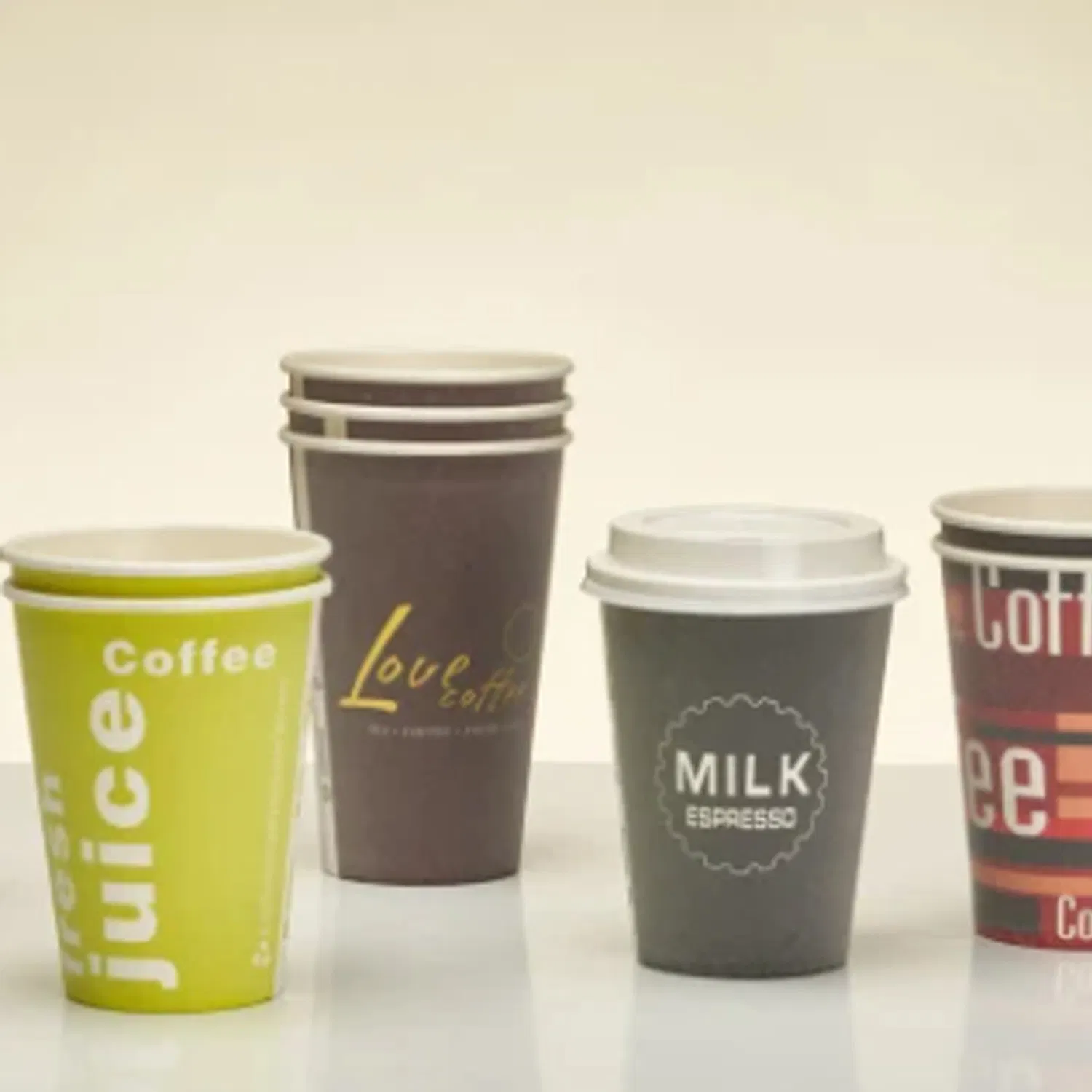

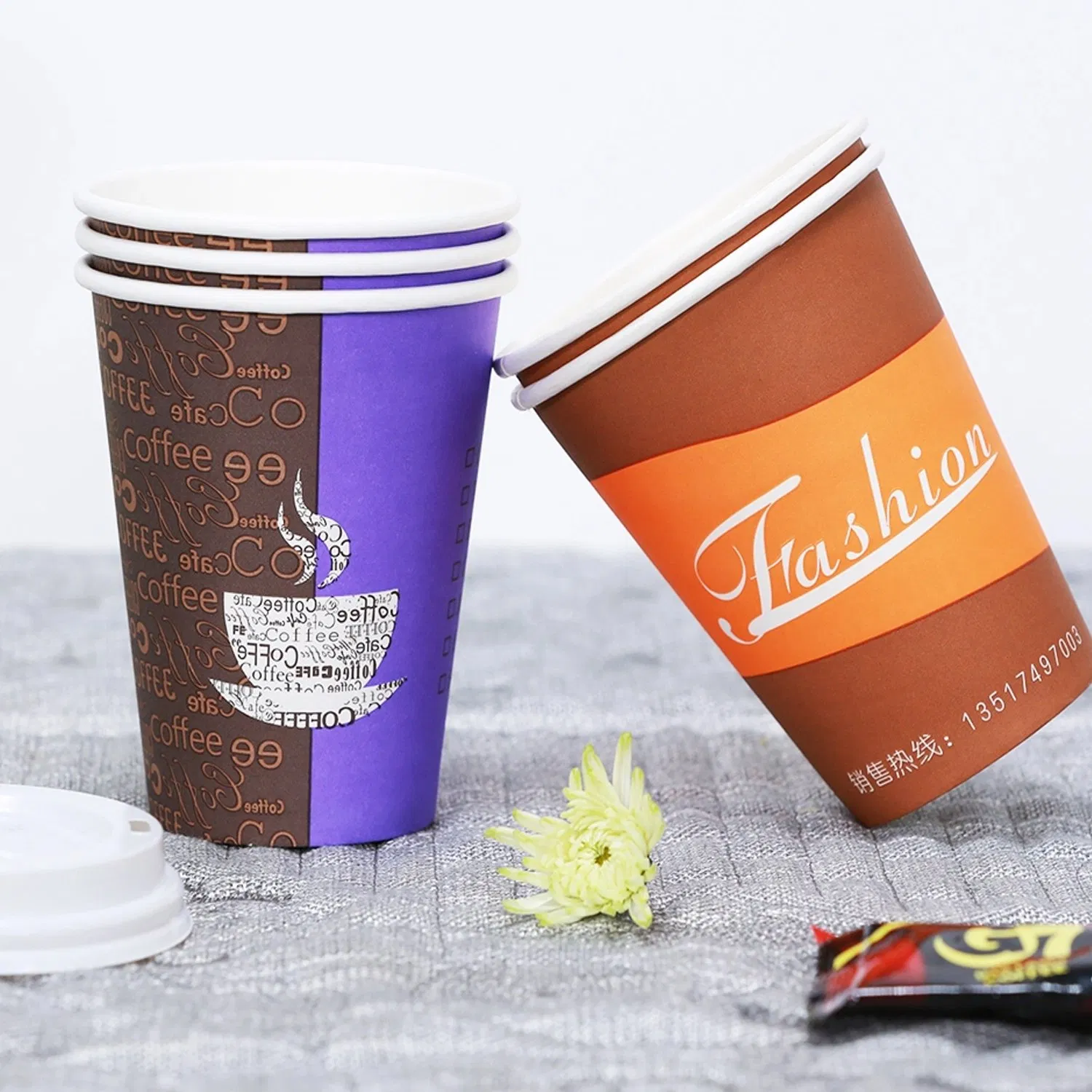

The machine is controlled by PLC, with the entire process monitored by photoelectric sensors and feeding by servo. It is suitable for producing 4-16 OZ cold and hot drink cups.
| Technical Specification | |
|---|---|
| Model | XSL-350T High Speed Paper Cup Machine |
| Suitable Size | Top: 60-95mm | Bottom: 40-75mm | Height: 50-135mm |
| Speed | 120-150 PCS/min |
| Paper Request | 170-380GSM Single/Double PE Paper |
| Machine Size | 3700 * 1300 * 2060 mm |
| Air Consumption | 0.6-0.8m³/min |

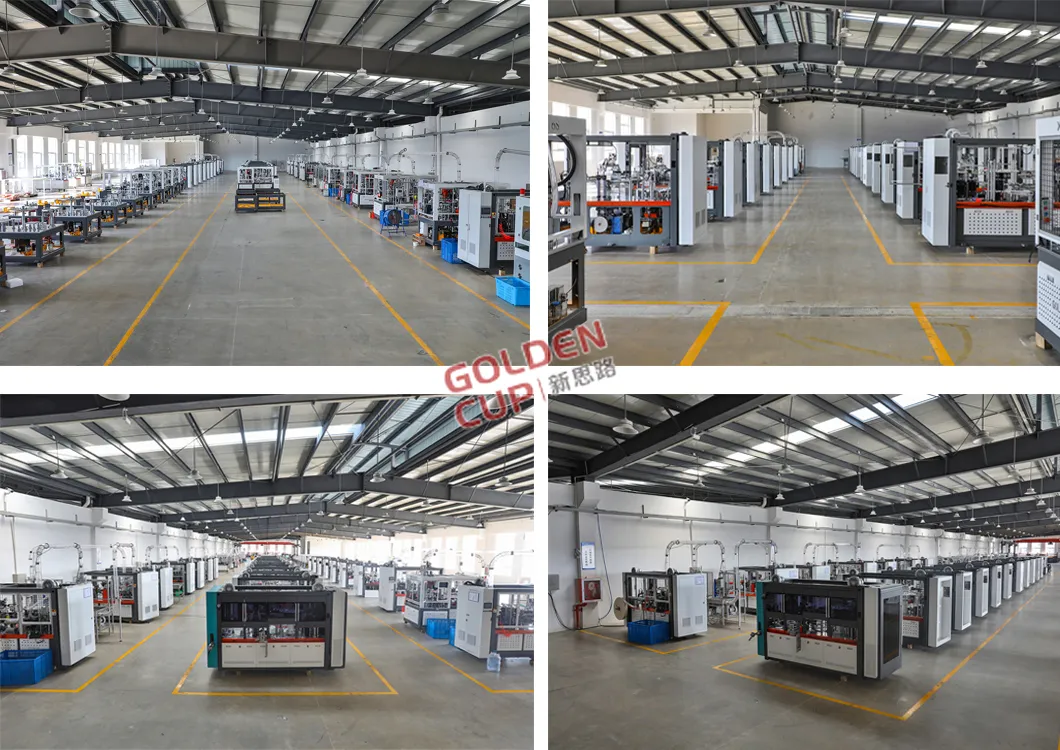

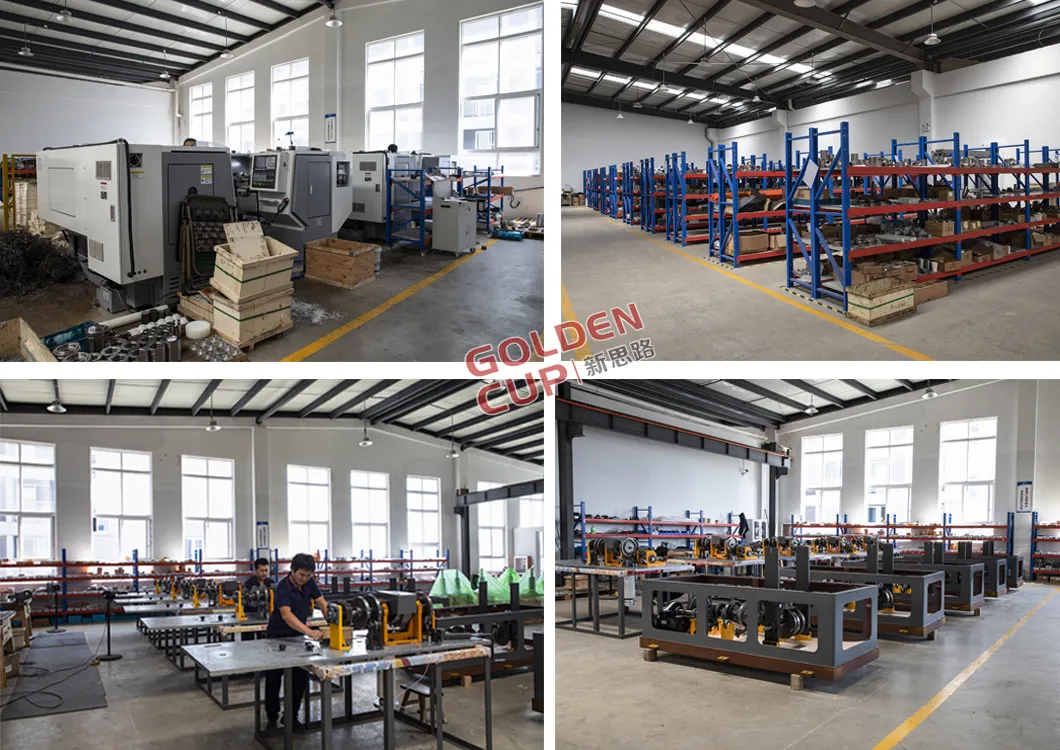

We are a leading manufacturer of high-quality machinery in the paper cup industry. Our state-of-the-art facility spans around 10,000 square meters, equipped with advanced production capabilities. We specialize in the production of high-speed paper cup machines, paper bowl machines, and double wall sleeve machines.

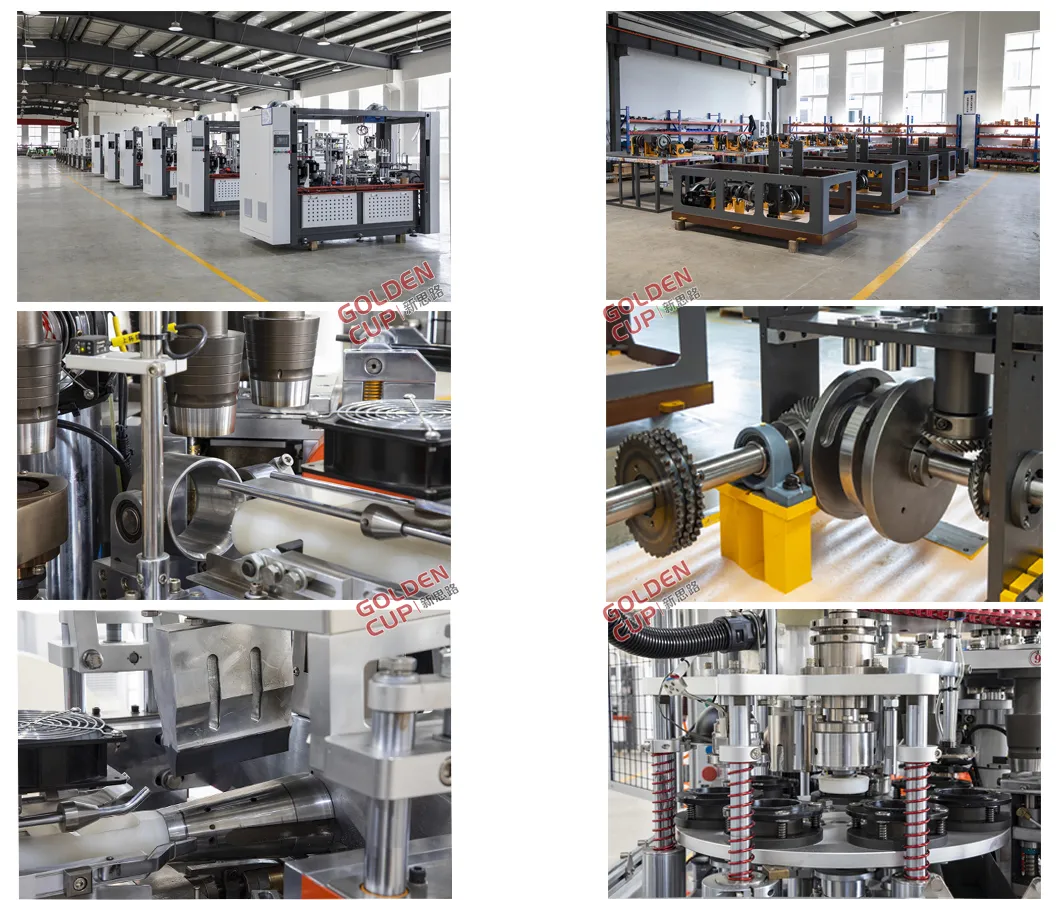

To ensure top-notch performance, we use components from renowned international brands. Important bearings are sourced from Japan, and molds are made with high-quality materials. The transmission part utilizes cam and gear mechanisms, eliminating the need for chains and incorporating a spray circulating lubrication system.

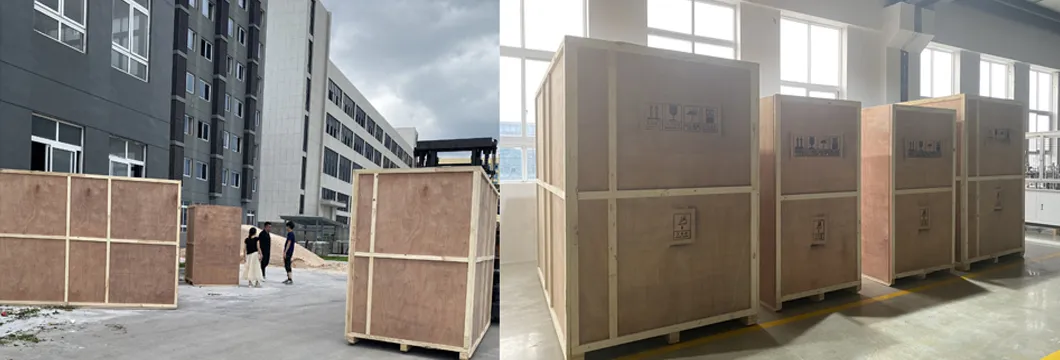

Before the product is shipped, it is securely packed in professional wooden cases to ensure safe transportation via sea freight from the port to the destination.
