High Speed Fully Automatic Making Disposable Coffee Ice Cream Paper Cardboard Cup Production Line Machine for Hot Cold Drink Cup

1 / 5

High Speed Fully Automatic Making Disposable Coffee Ice Cream Paper Cardboard Cup Production Line Machine for Hot Cold Drink Cup

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

MG-G800

Cup Size

4-12oz & 12-16oz

Speed

120-150PCS/Min

Required Paper

Single/Double PE/PLA/Bio Coated

Automation

Automatic

Certification

Condition

New

System

Open Cam or Gearbox

Lubrication

Automatic Shower System

HS Code

84414000

Product Description

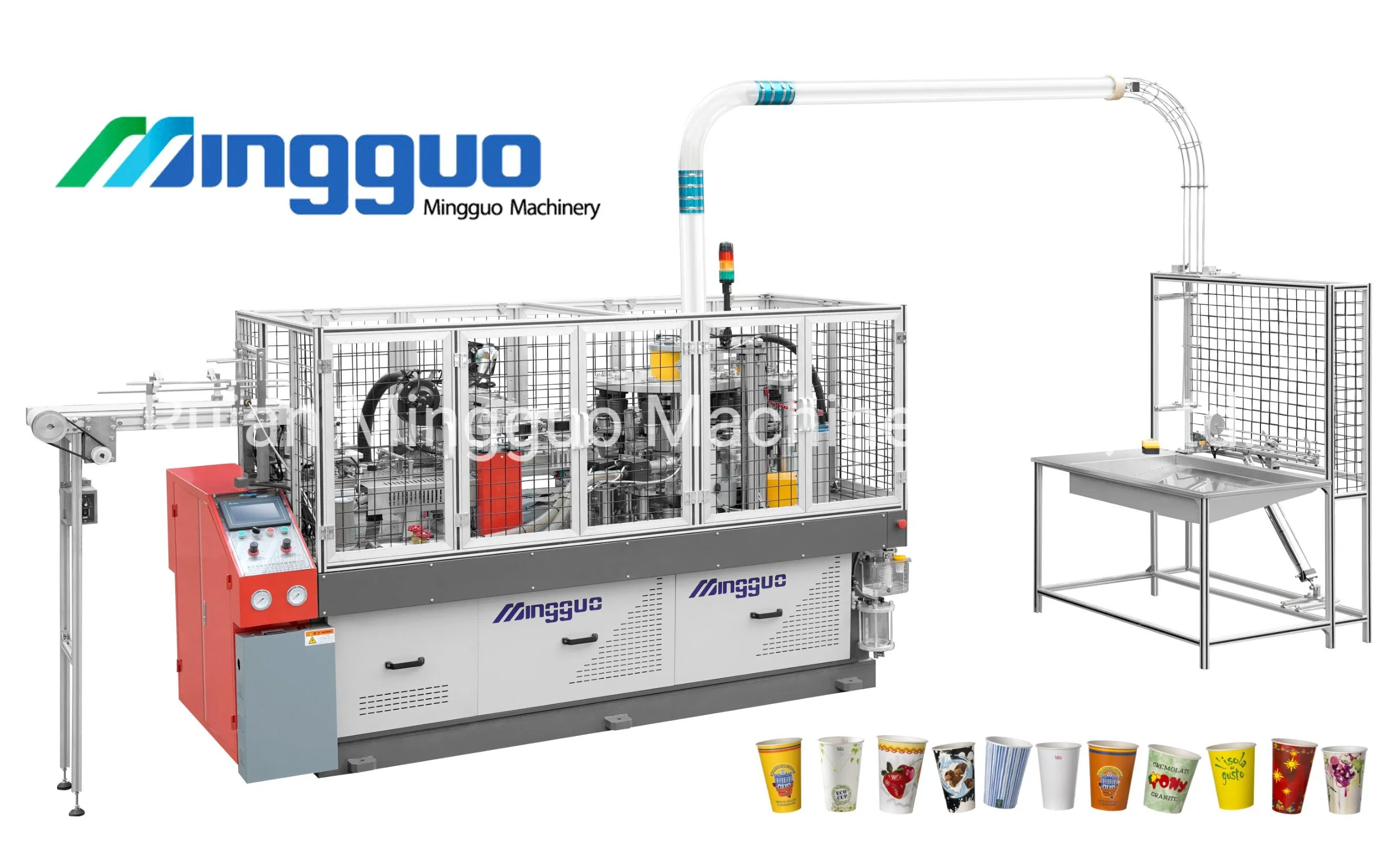

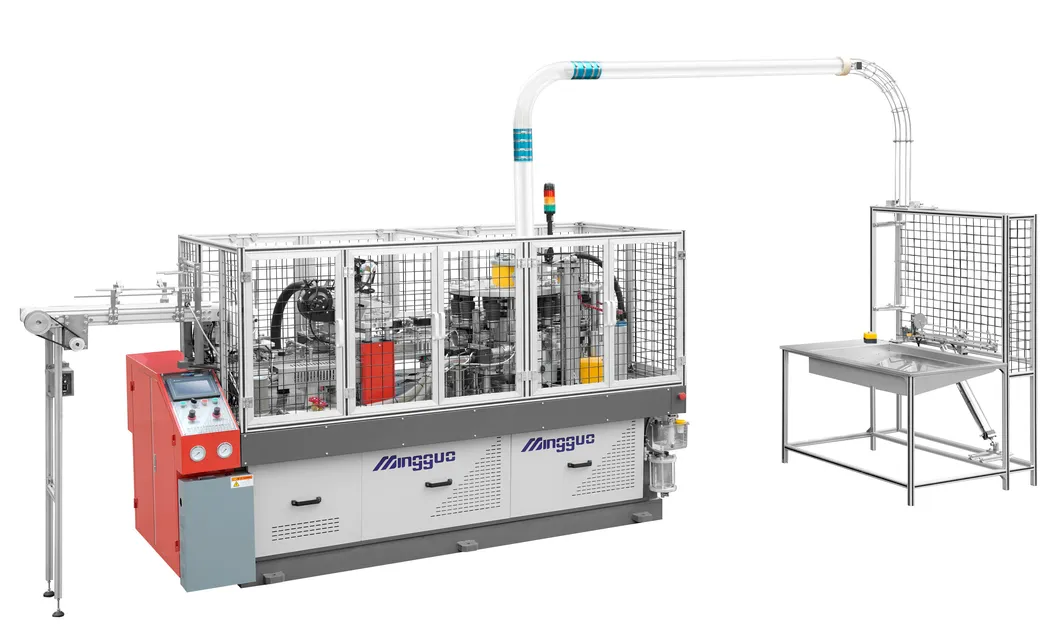

MG-G800 New High-Speed Paper Cup Forming Machine

The MG-G800 high-speed paper cup forming machine is a latest developed high-speed paper cup machine, achieving a stable cup making speed of 120-150pcs/min. In actual development tests, the maximum speed can reach more than 140pcs/min. We have optimized the mechanical transmission and forming system, making the main transmission parts and helical gear transmission more efficient and compact.

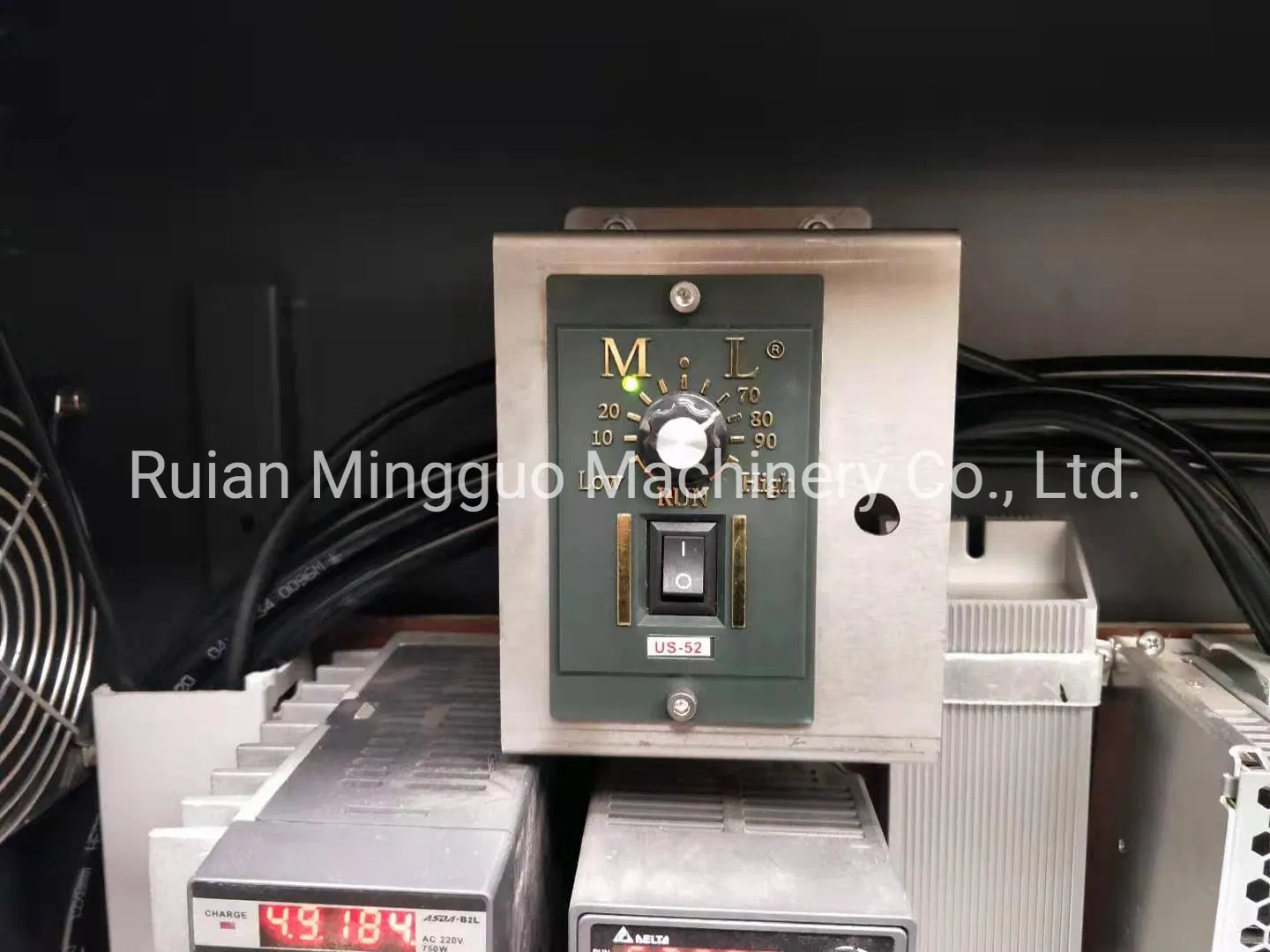

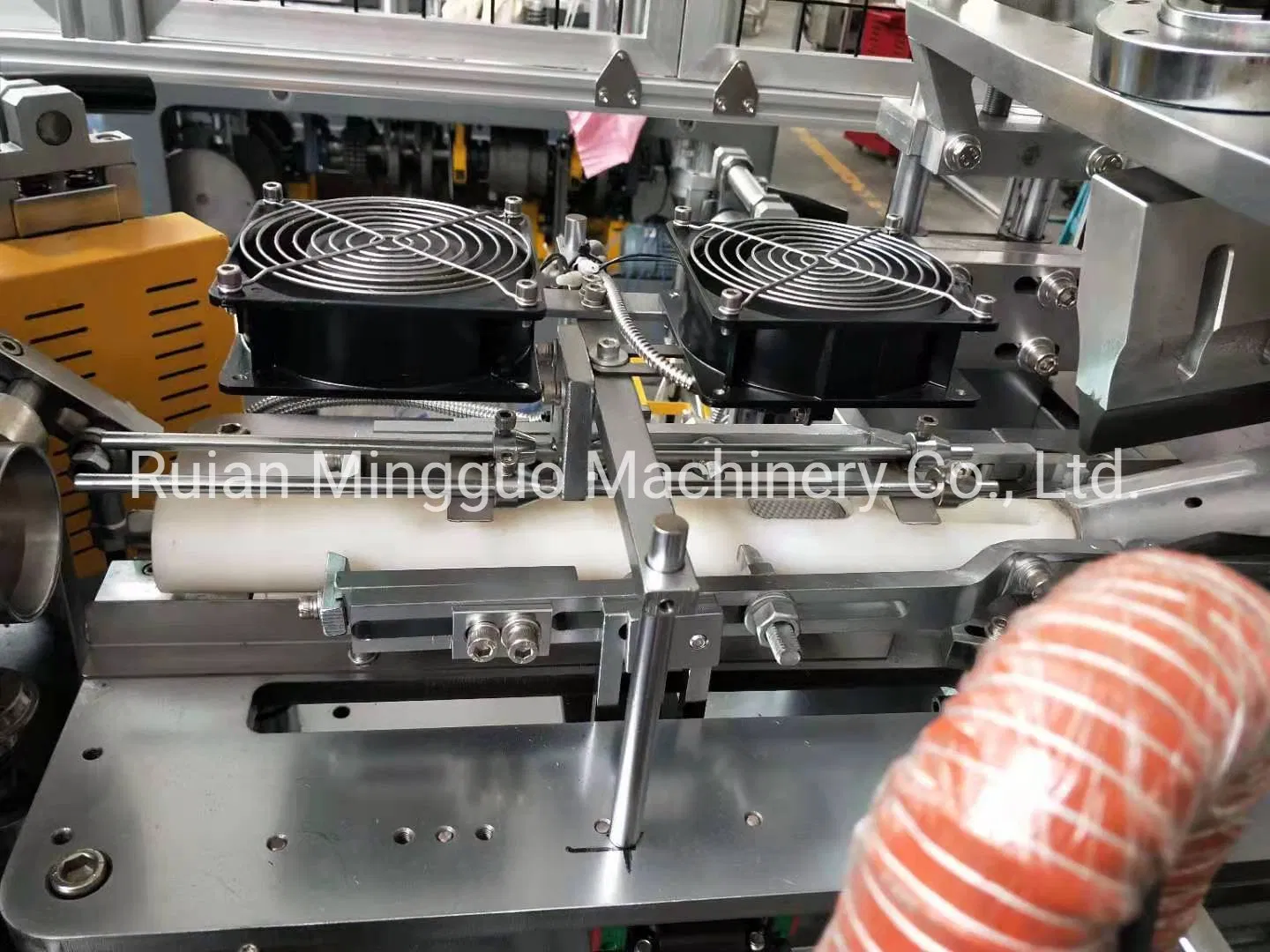

Cup walls and bottoms are sealed with LEISTER heaters and GREEN ultrasonic side welders. The entire process is monitored by Delta inverter, Delta servo feeding, Delta PLC, and Delta touch screen interface, ensuring fast and stable operation with high automation.

Technical Specification

Parameter	Details
Model	MG-G800
Paper Cup Specifications	4-16oz (100-450ml), Mold exchangeable
Paper Specification	150-350 GSM single/double PE coated paper
Speed	120-150pcs/min
Voltage	220/380V
Full Load Power	12KW
Air Supply Requirement	0.5-0.8Mpa, 0.5cbm/min
Dimensions	2800x1500x1700mm
Customization	Available for various cup and bowl sizes

Service Excellence

⚓ Pre-sales Service

Professional product consultation
Free paper cup samples (excluding freight)
Factory visit appointments

🛠️ After-sales Service

1-year machine warranty
Technician dispatch for installation and adjustment
Free consumable spare parts for the first year

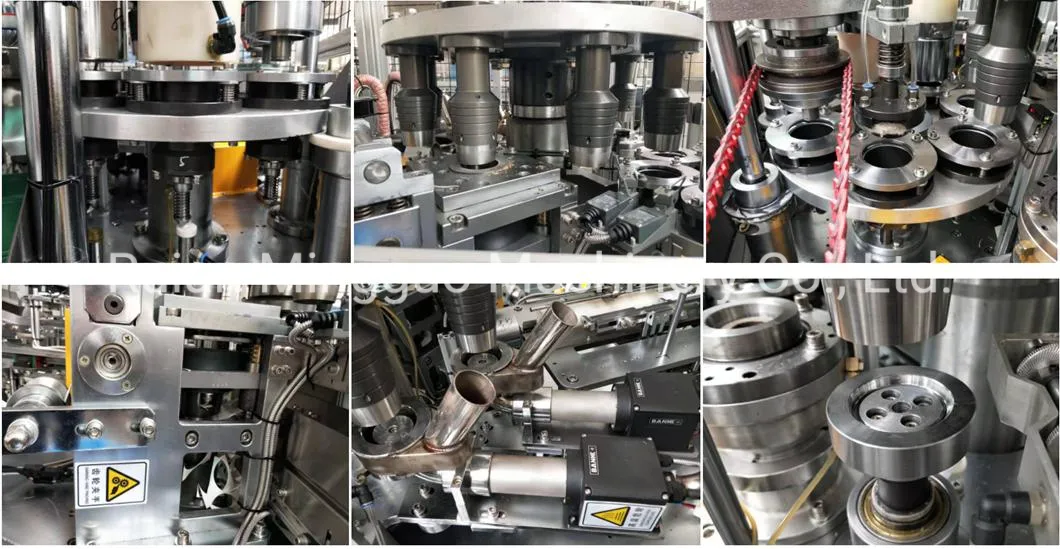

Product Gallery

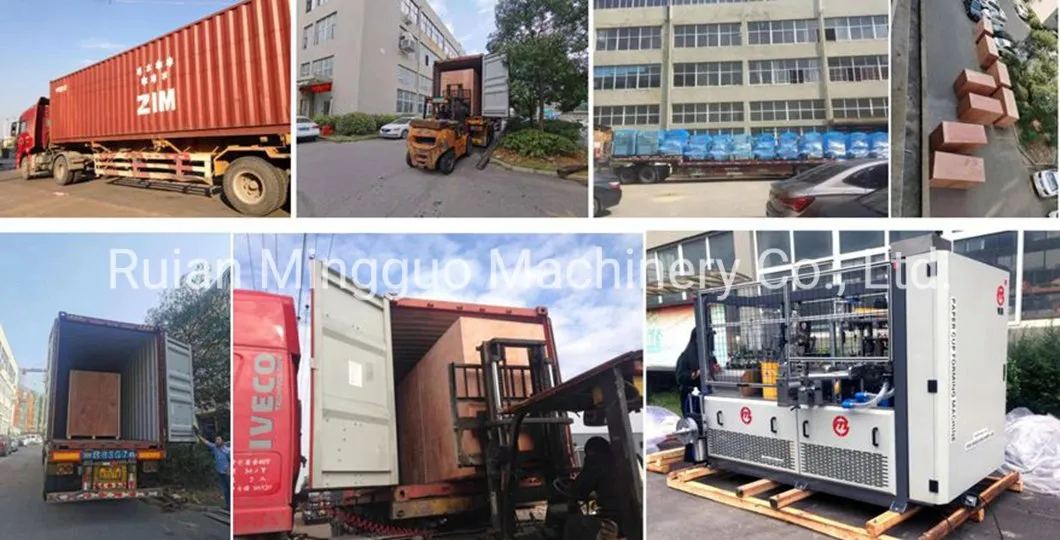

Loading & Shipping

Frequently Asked Questions

What products can be made by these machines?

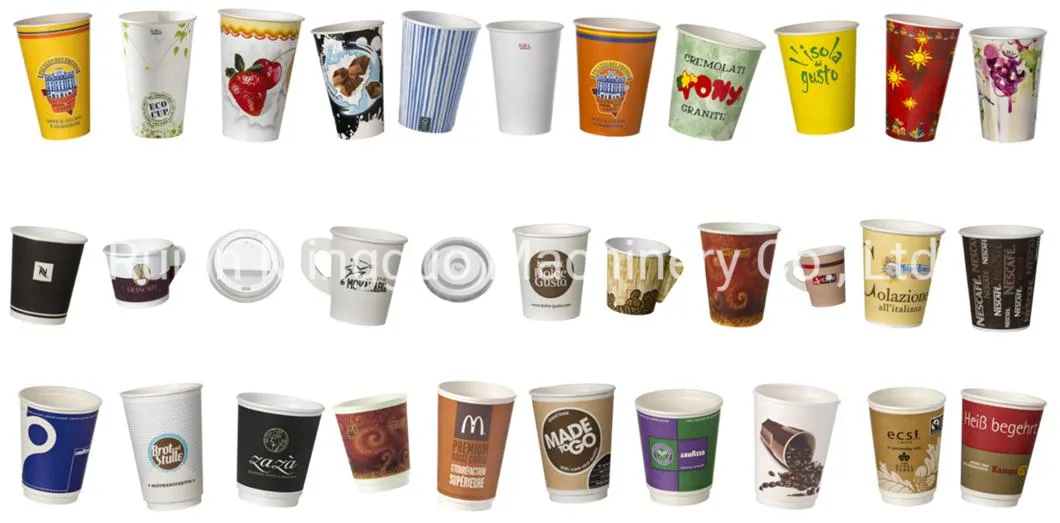

Our machines can produce tea cups, coffee cups, ice cream cups, noodle bowls, salad bowls, and various regular or irregular paper containers for food and drinks.

What volume range can the machines handle?

The capacity ranges from 2oz to 190oz, which is approximately 50ml to 5000ml depending on the specific model and configuration.

What information is needed for an accurate quotation?

Please provide sample pictures, cup specifications (Top diameter, Bottom diameter, Height), and the GSM of the single/double PE coated paper you intend to use.

What are the standard payment terms?

Usually, we require a 30% T/T deposit in advance, with the remaining 70% balance paid before shipping.

Is customization available for specific needs?

Yes, almost all of our paper container forming machines can be modified and customized to meet your specific cup or bowl requirements.

What is the warranty and after-sales support?

We provide a 1-year warranty, free consumable spare parts for the first year, and can dispatch technologists to your facility for installation and training.
