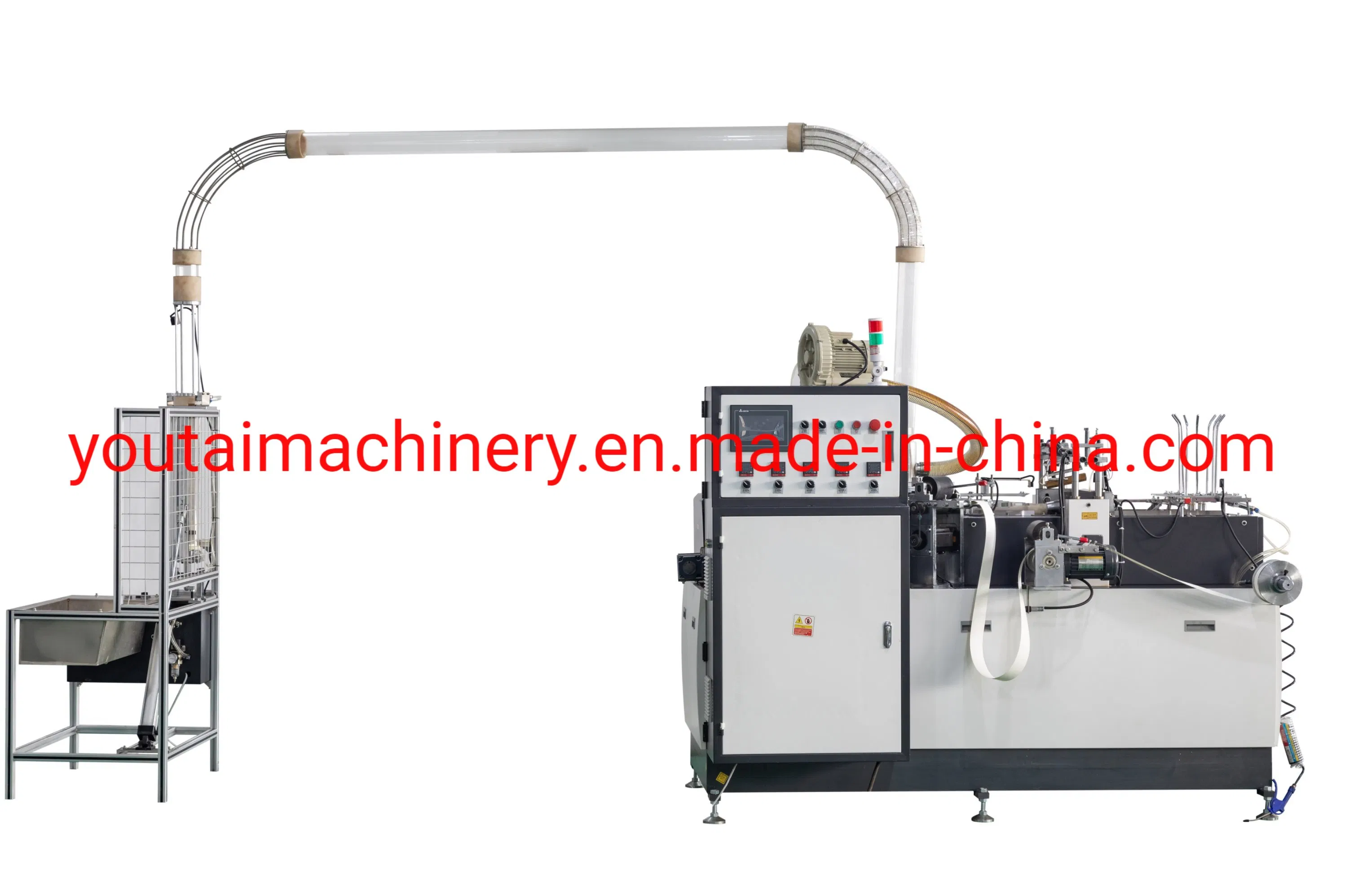

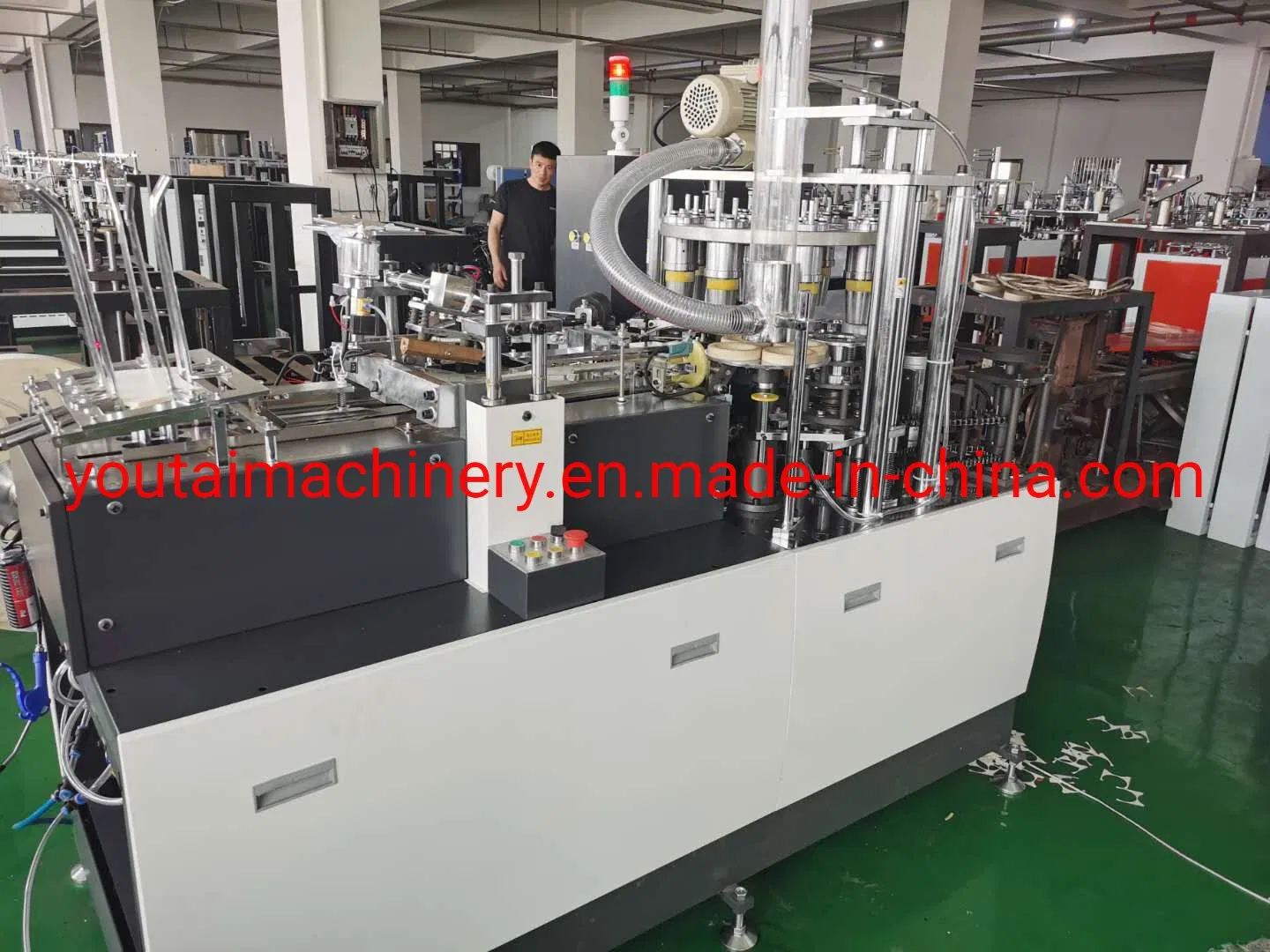

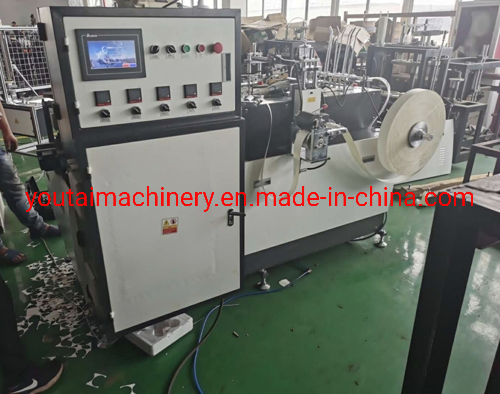

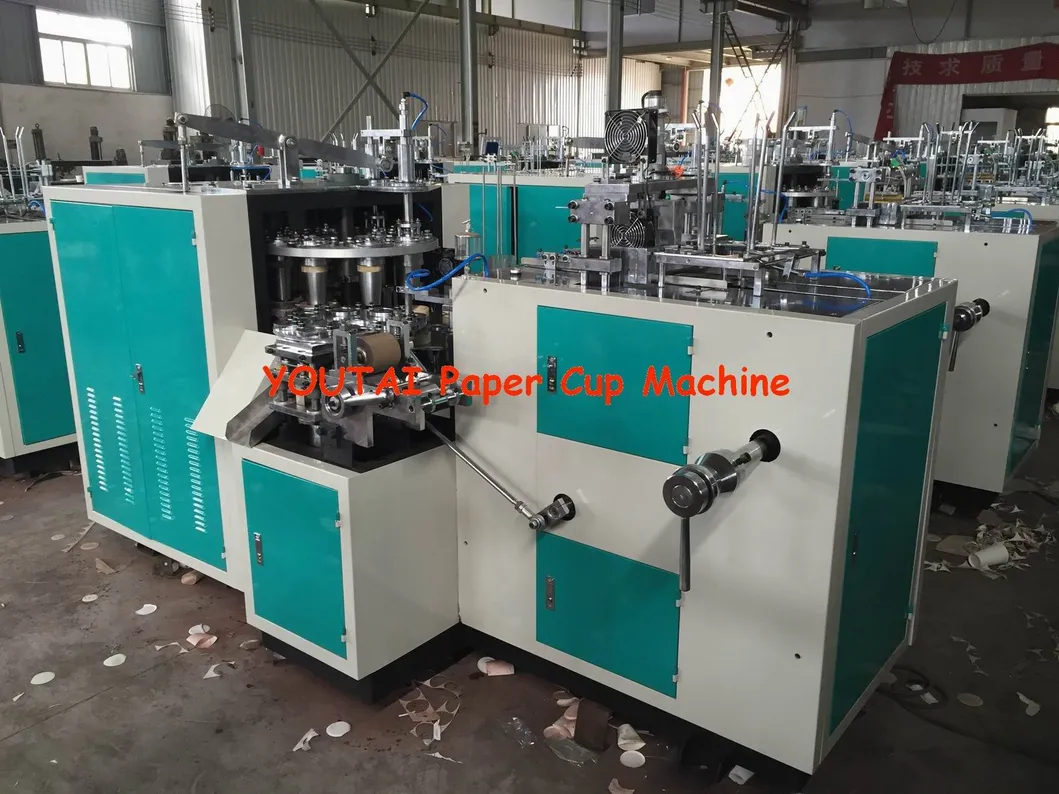

NAME: Paper Cup Machine
Model No.: YT-LI
The YT-LI paper cup machine is an automatic multi-working-station machine equipped with photosensor detecting, failure alarming, and counting functions. It is designed for manufacturing paper cups using single or double PE coated paper. The integrated process includes automatic paper feeding, sealing, silicon-oil lubricating, bottom punching, heating, knurling, curling, and bowl discharging. It serves as ideal equipment for producing drinking cups, ice-cream cups, and various food cone-shaping containers.
| Technical Specifications - YT-LI1 | |
|---|---|
| Cup Size | 2-12oz |
| Raw Material | One-side PE paper (170-320g/m2) |
| Productivity | 45-55pcs/min |
| Power Source | 380v/220v, 50hz or others |
| Total Power | 4kw |
| Weight | 1350kg |
| Size (L*W*H) | 2300*1150*1600mm |
| Packaging | Wooden Case |
| Technical Specifications - YT-LI2 | |
|---|---|
| Cup Size | 3-18oz |
| Raw Material | One-side PE paper (170-320g/m2) |
| Productivity | 45-55pcs/min |
| Power Source | 5kw |
| Weight | 1600kg |
| Size (L*W*H) | 2700*1350*1750mm |
| Packaging | Wooden Case |
| Technical Specifications - YT-LI3 | |
|---|---|
| Cup Size | 18oz, 22oz, 24oz, 32oz etc. |
| Raw Material | One-side PE paper (170-320g/m2) |
| Productivity | 35-45pcs/min |
| Power Source | 6kw |
| Weight | 1800kg |
| Size (L*W*H) | 2900*1350*1900mm |
| Packaging | Wooden Case |
