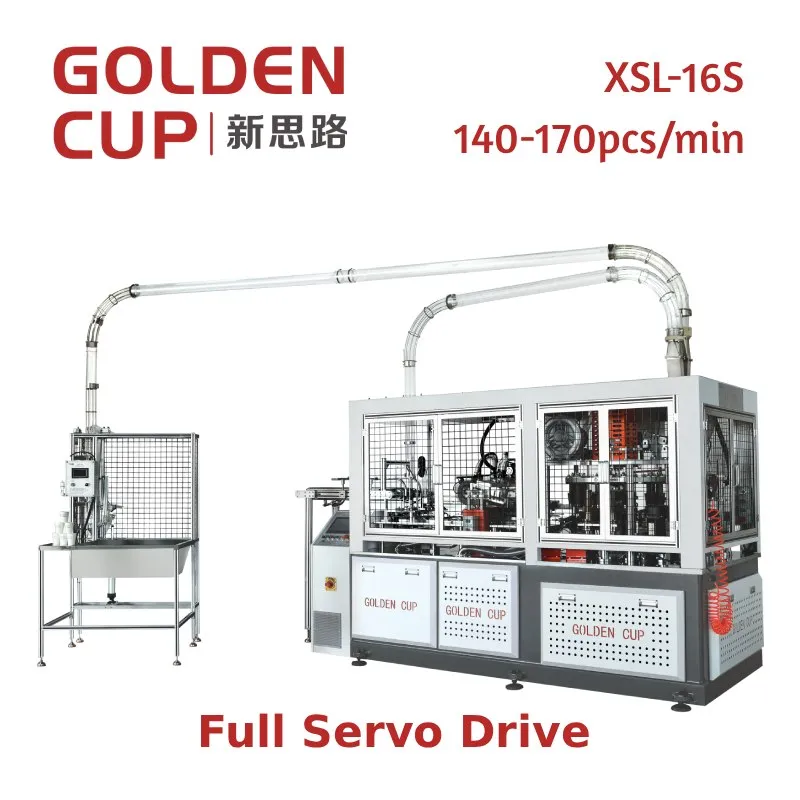

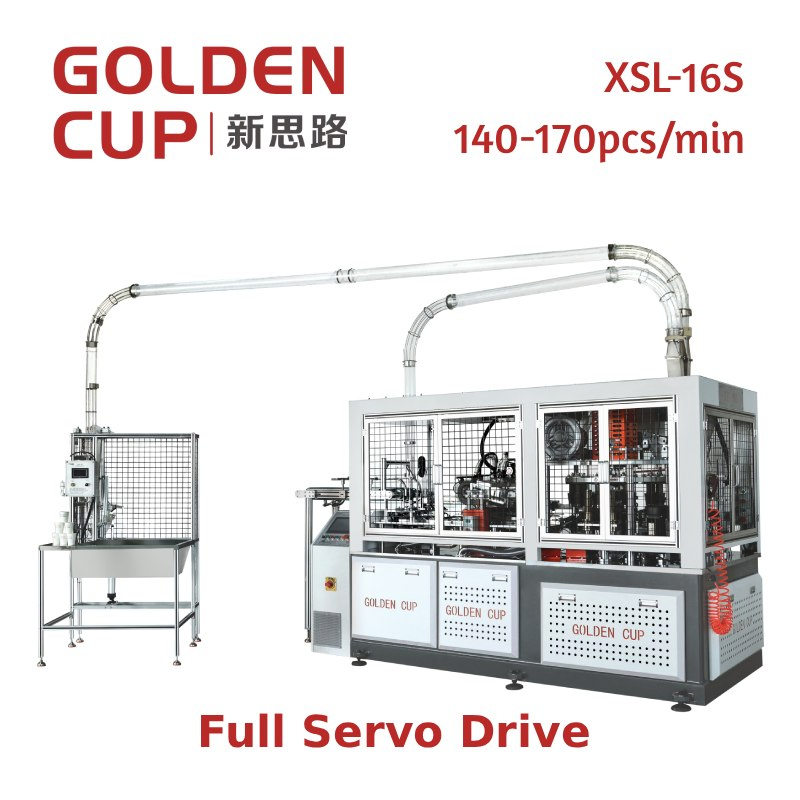

Full Servo Paper Cup Machine Xsl-16s High Speed

📊

Basic Information

Model NO.

XSL-16S

Cup Size

4-16oz

Speed

140-170PCS/Min

Required Paper

PE & PLA Paper

Automation

Automatic

Certification

CE

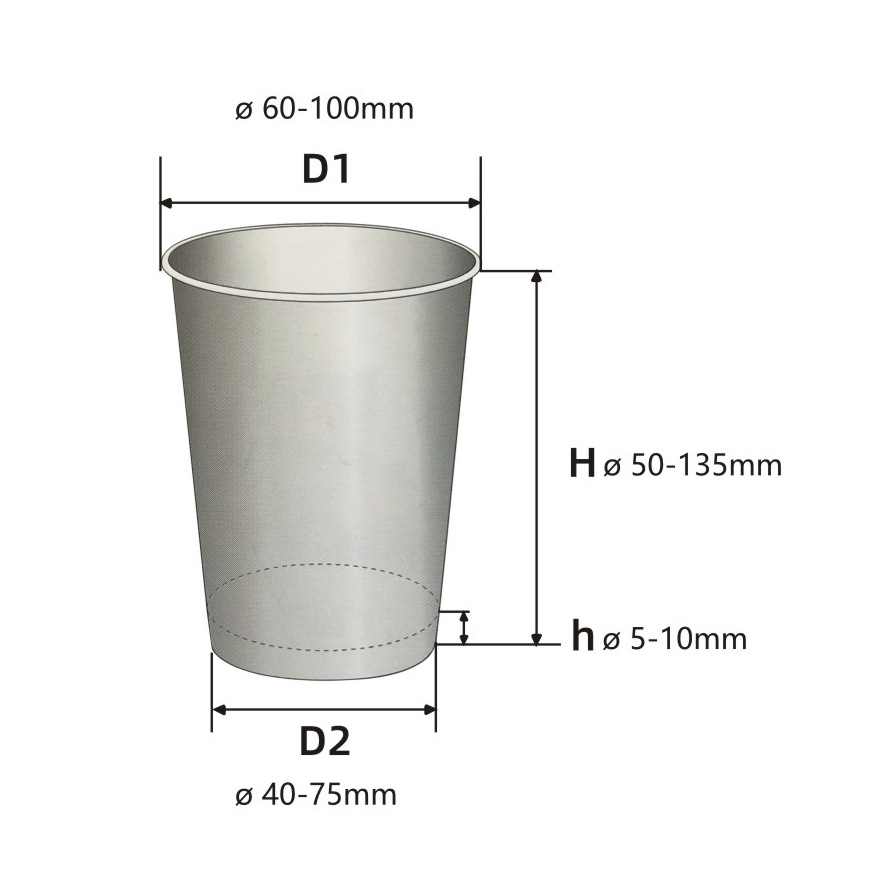

Top Diameter

φ60-100mm

Bottom Diameter

φ40-75mm

Height

50-135mm

Paper Thickness

150-380GSM

Power

3 Phase, 380V, 50Hz 21kw

Weight

3200kg

⚙️

Product Description

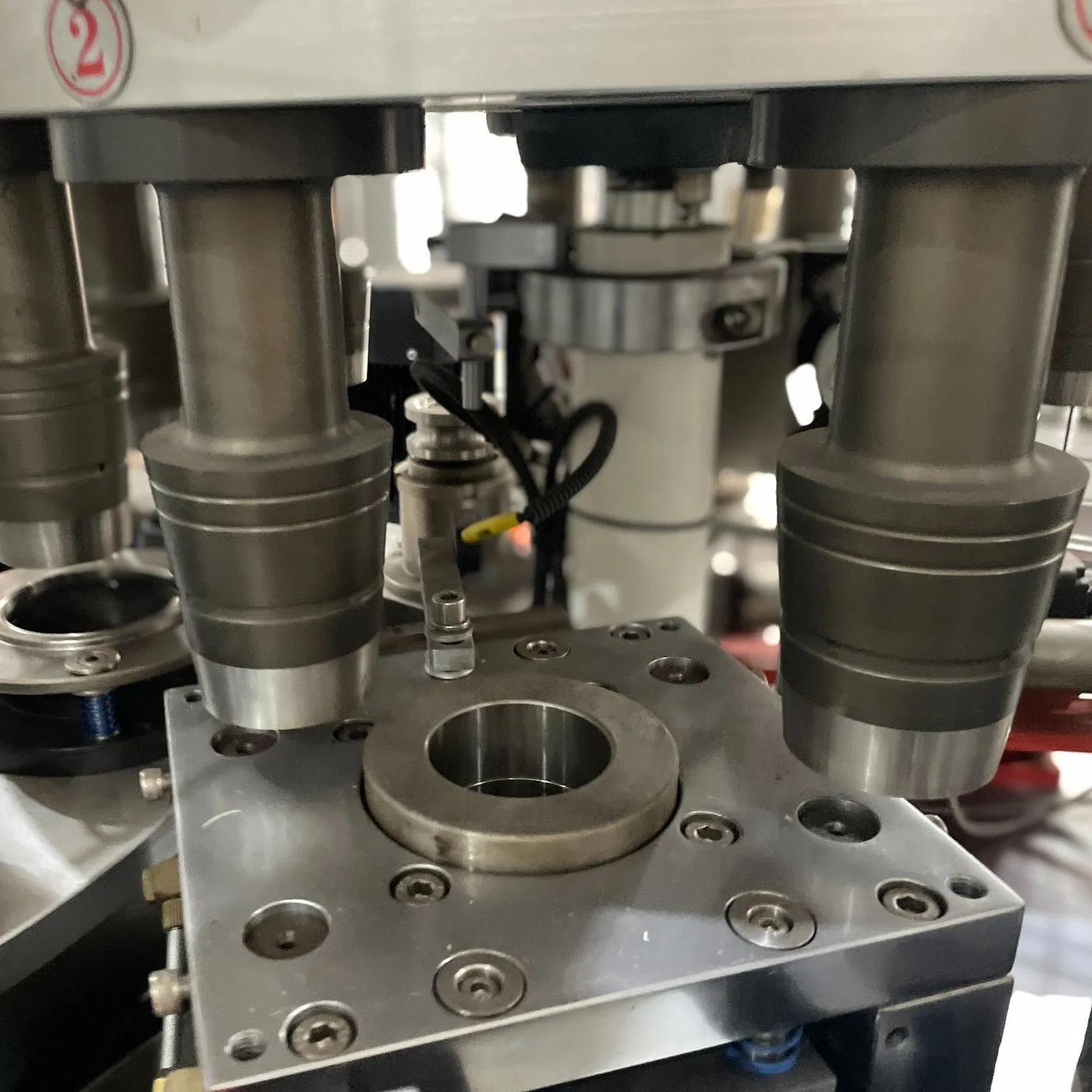

The XSL-16S Full Servo Paper Cup Machine is a high-speed, intelligent, and eco-friendly paper cup forming equipment designed for efficiency and precision.

Powered by a full servo motor system and PLC digital control, it ensures accurate, stable, and consistent cup forming performance with easy parameter adjustment.

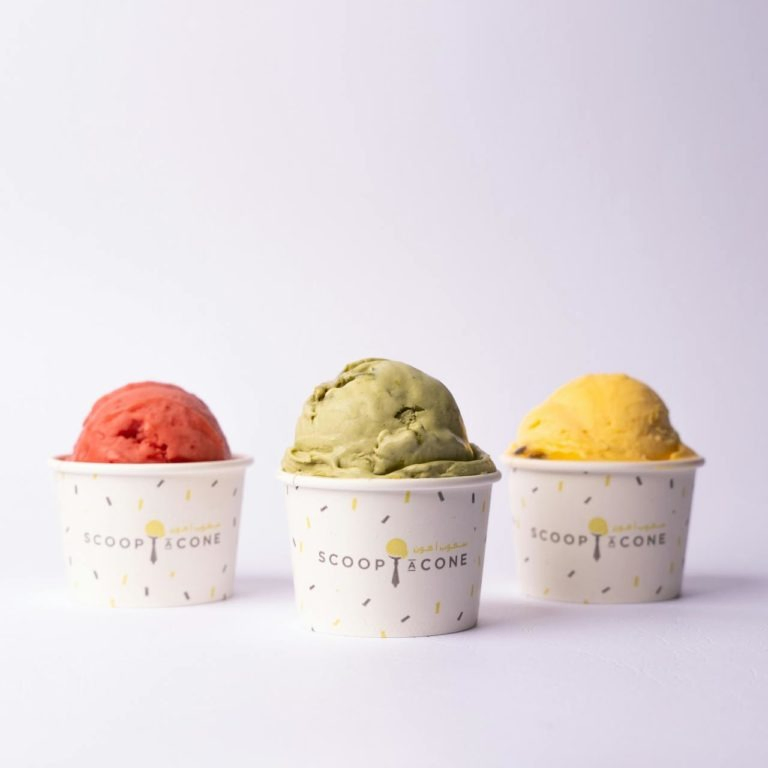

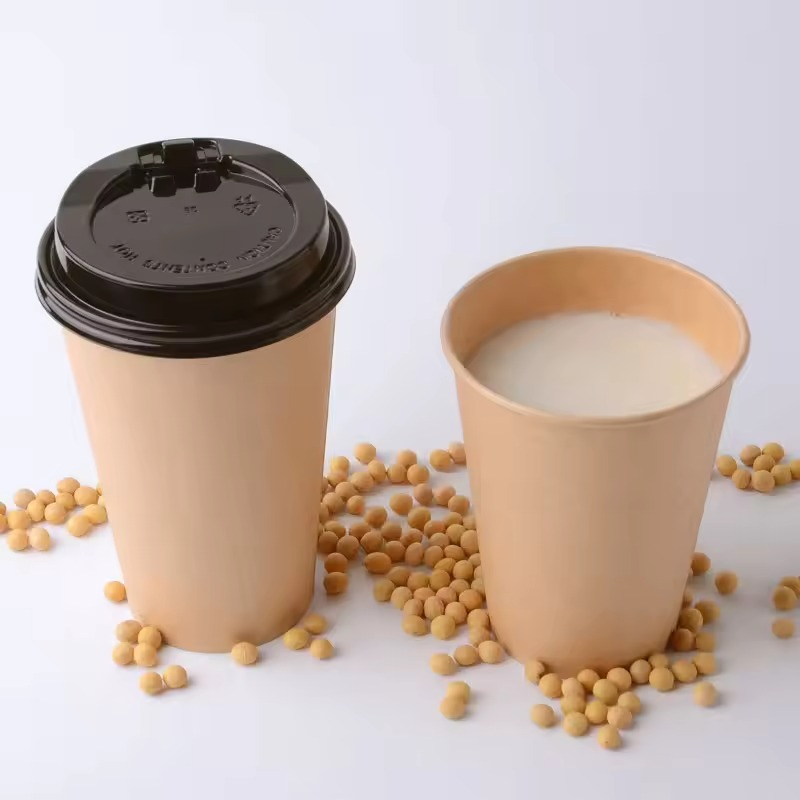

With a maximum output of 170 pcs/min, the machine is ideal for producing 4–16oz paper cups, including coffee cups, ice cream cups, and cold drink cups. It supports optional configurations such as visual inspection systems, paper cup sleeve machine connection, and automatic cup packing machine, enabling a fully intelligent paper cup production and packaging line.

☕

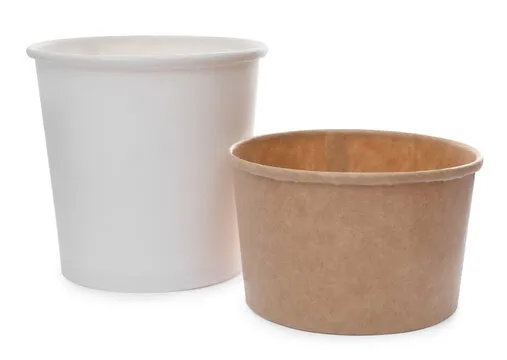

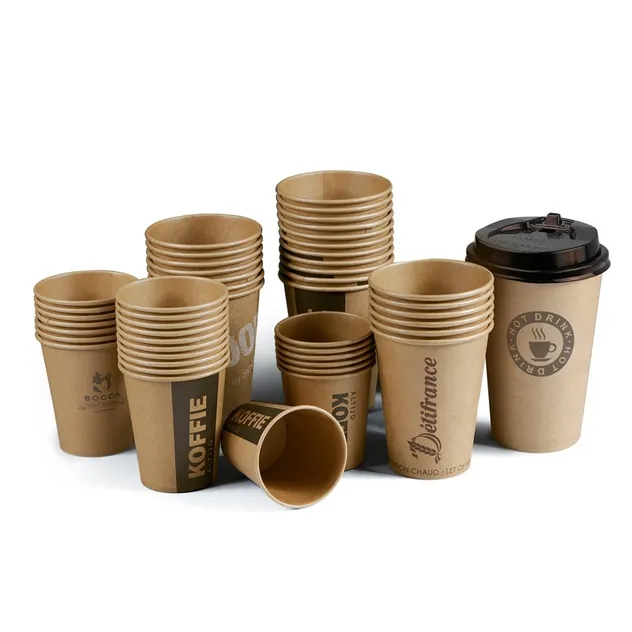

Application

Our machines are widely used for producing various disposable containers, ensuring high quality and durability for the food and beverage industry.

📋

Technical Specifications

Model	XSL-16S	XSL-16T
Weight	3300kg	3600kg
Cup Size	4-16OZ	4-16OZ
Drive System	Full Servo Drive	Mechanical Cam System
Machine Size	3400 x 1400 x 1900mm	3700 x 1400 x 2060mm
Rated Power	380V, 35KW	380V, 24KW
Max Capacity	140-170pcs/min	130-150pcs/min
Paper Materials	PE & PLA Paper	PE & PLA Paper
Paper Thickness	150-380gsm	150-380gsm

🚀

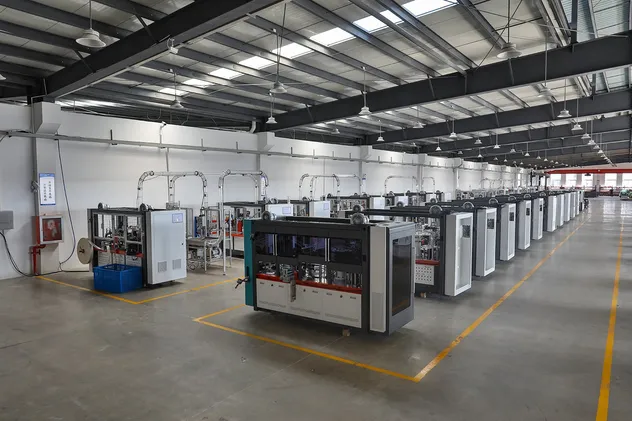

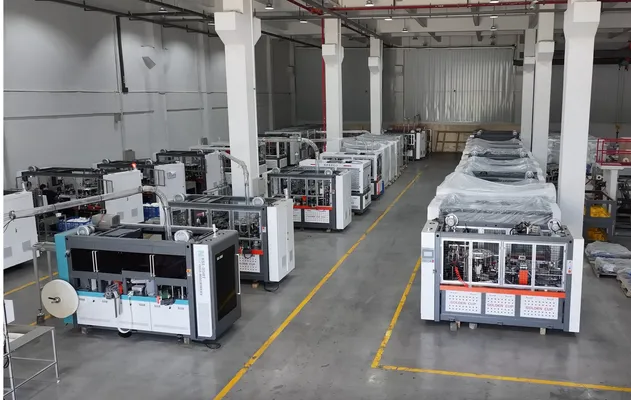

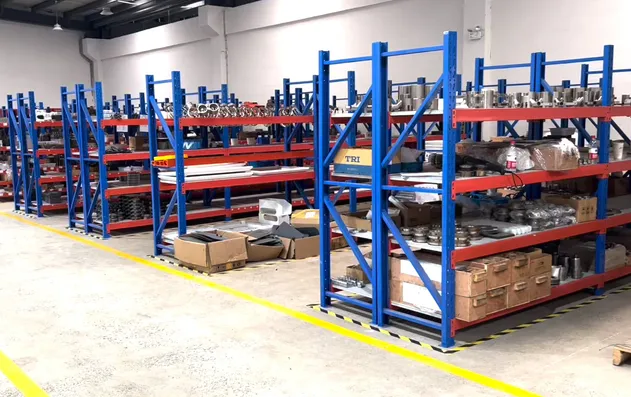

Manufacturing Excellence

We are a professional manufacturer specializing in high-speed, intelligent paper cup production solutions. Our expertise covers cup forming, sleeve attaching, packing, and boxing with advanced technology and global technical support.

📜

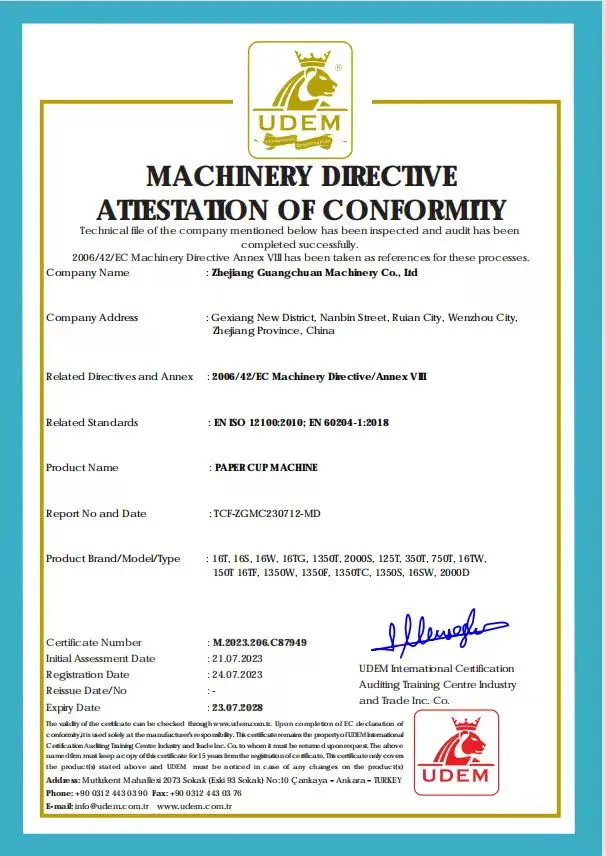

Certifications

📦

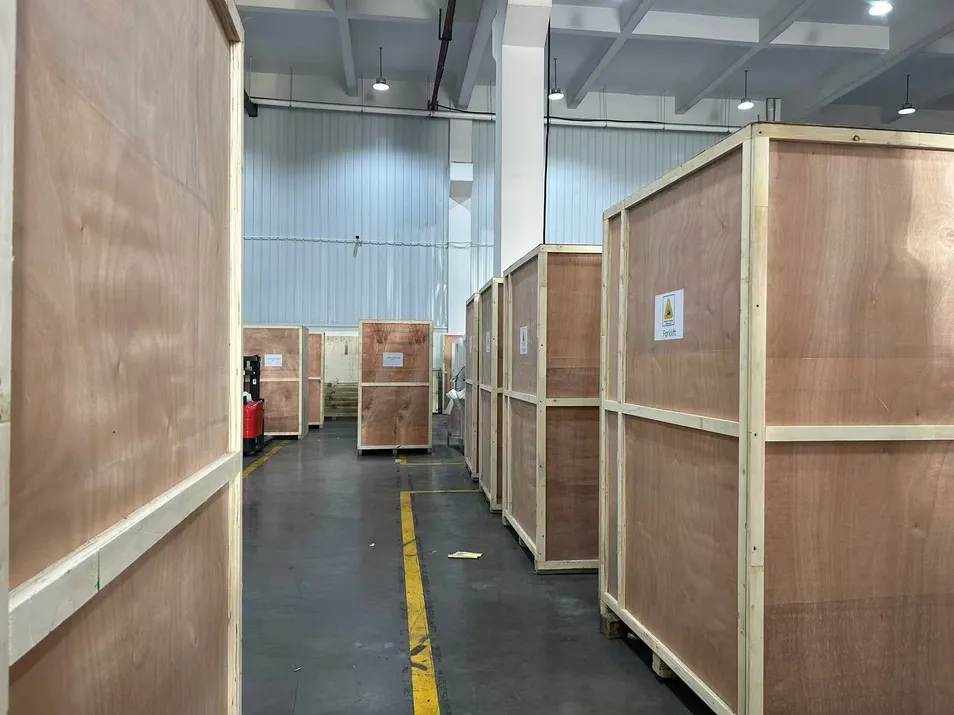

Packing & Delivery

❓

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a leading manufacturer specializing in high-speed paper cup & bowl forming machines, providing intelligent, automated production solutions covering cup forming, packing, and cartoning.

What cup sizes can the machine produce?

Standard models cover 2.5oz to 22oz. For larger sizes such as 32oz soup bowls or salad cups, we offer specialized machinery.

What is the production speed?

Different models offer different speeds. Our high-speed servo models can reach up to 170 pcs/min depending on the cup size and configuration.

What are your payment terms?

Price depends on the model and configuration. Standard payment terms are usually a 30% deposit and 70% balance before shipment.

How about after-sales service?

We provide comprehensive online video technical support, training, and installation guidance. Engineers can also be dispatched overseas if required.

What materials can the machine process?

The machine is compatible with both PE coated paper and eco-friendly PLA coated paper, supporting a wide range of paper thicknesses from 150 to 380gsm.
