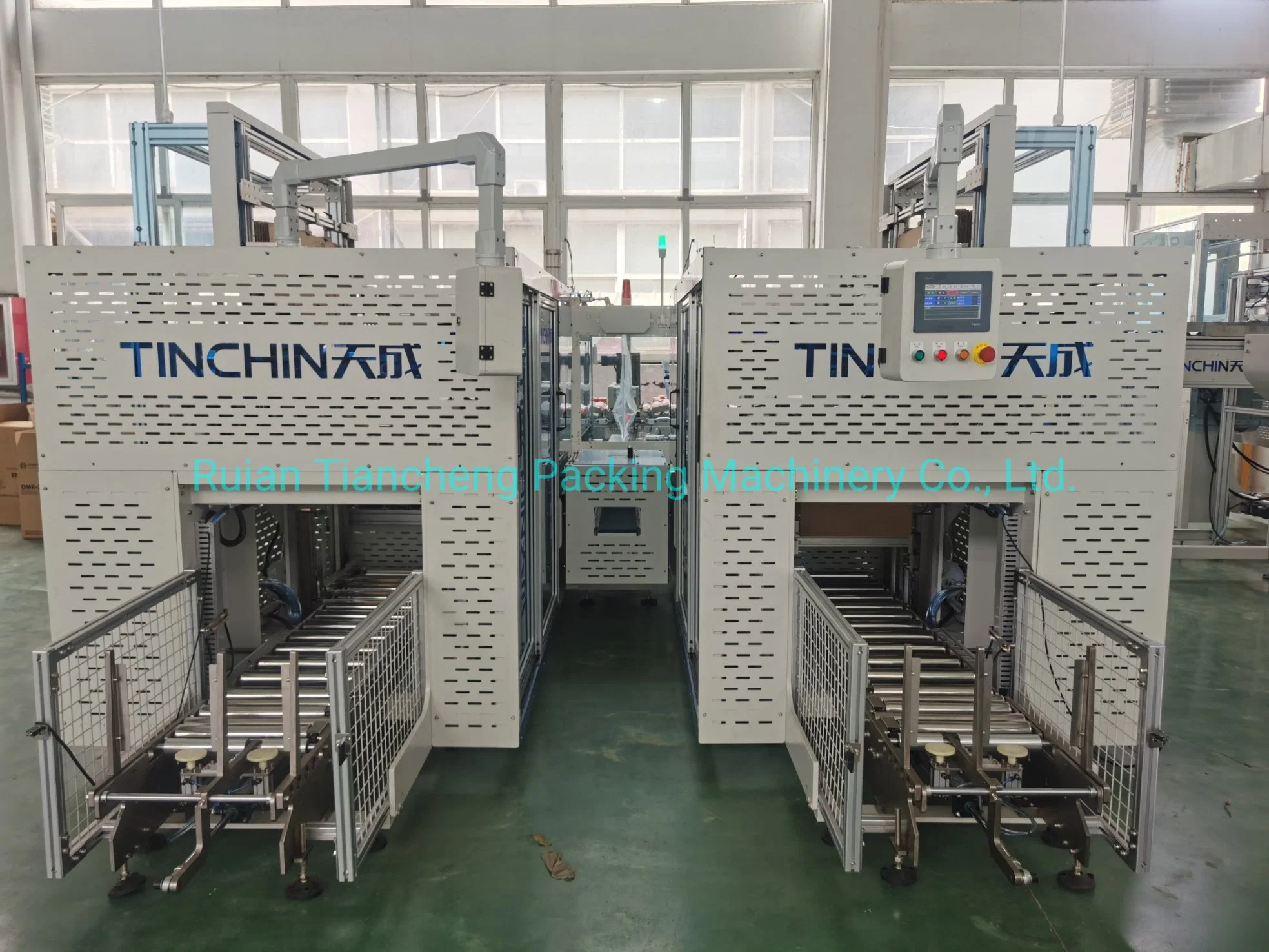

Automatic High Speed Disposable Paper Plastic Cup Coffee Cup Bowl Lid Cover Plate Tray Food Container Case Machine Packing Machine Case Erector

1 / 5

Automatic High Speed Disposable Paper Plastic Cup Coffee Cup Bowl Lid Cover Plate Tray Food Container Case Machine Packing Machine Case Erector

Customization:	Available
After-sales Service:	Engineers Available to Service Machinery Overseas
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

TCJ-QZB750

Automatic Grade

Automatic

Type

Filling and Sealing Machine

Forming Species

Bag Moulding

Driven Type

Electric

Material Type

Solid

Packaging

Bag

Packaging Material

Film

HS Code

8422309090

Capacity

2000 Set / Year

Product Description

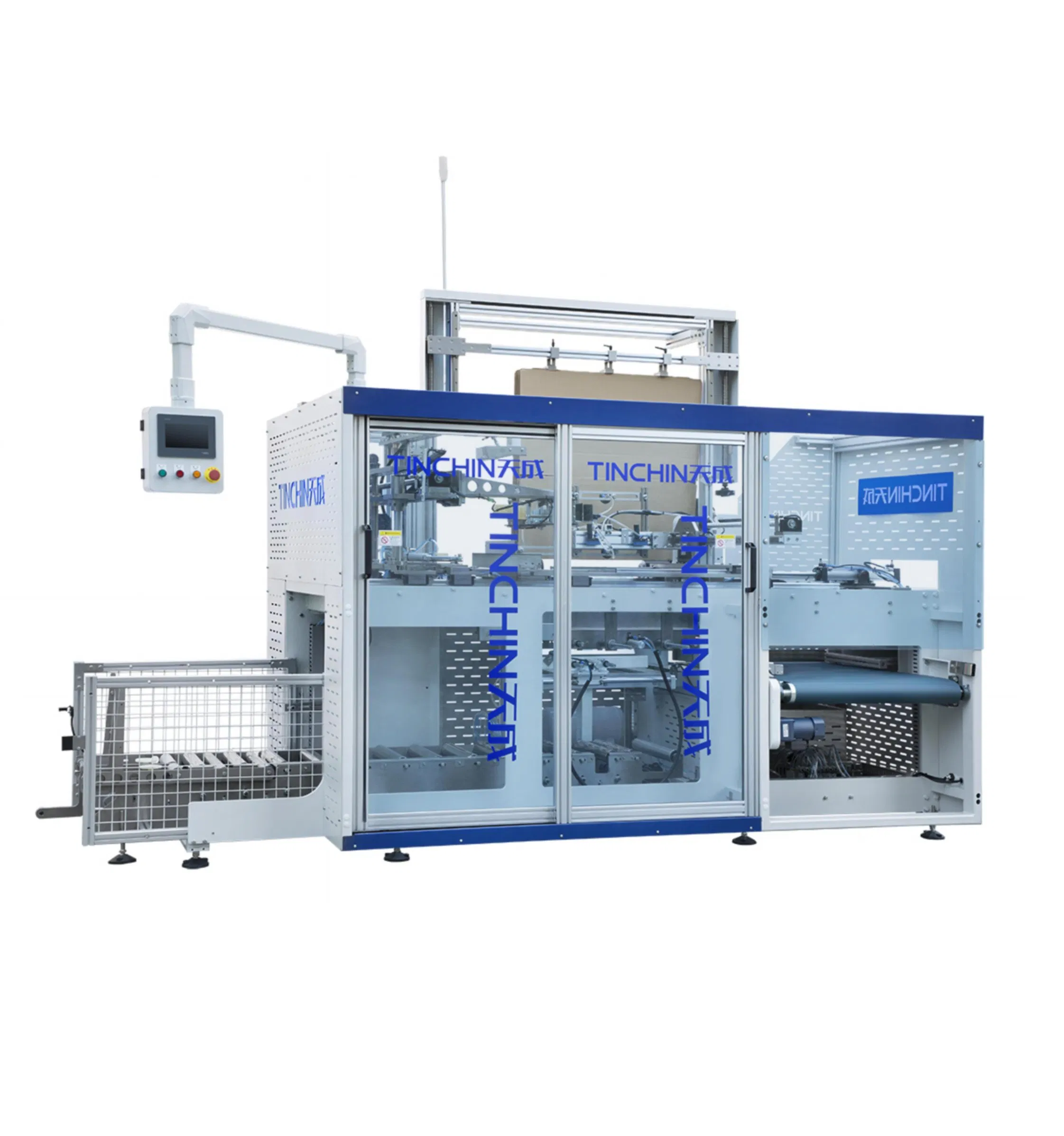

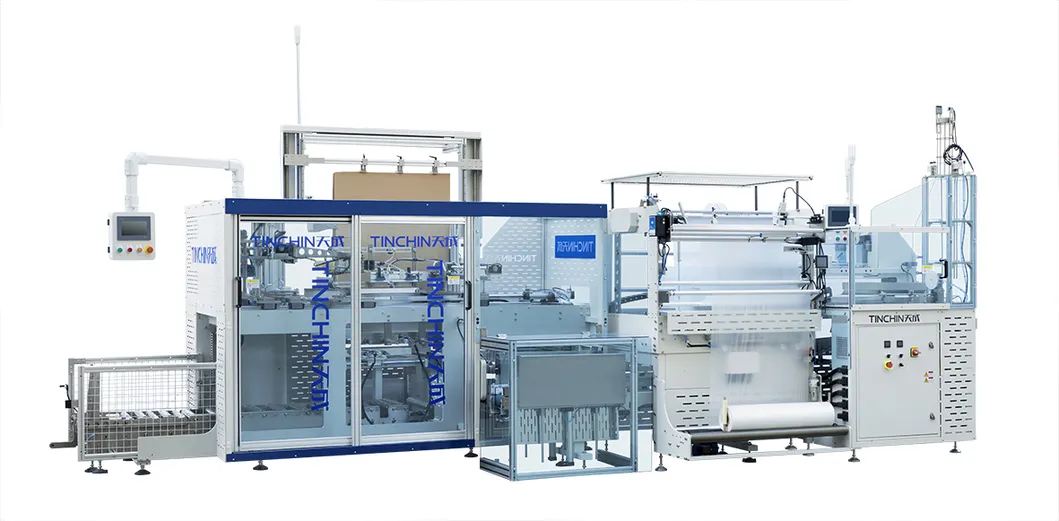

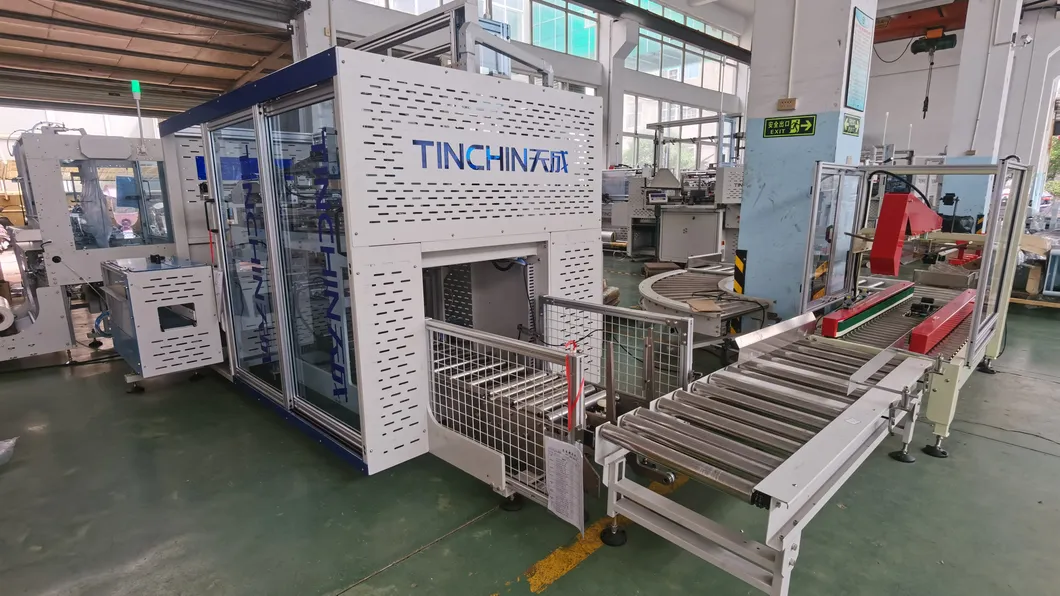

TCJ-QZB750 Full-automatic paper (plastic) cup (Bowl) packing machine

⚙️ Automatic paper (plastic) cup (bowl) packing machine is essential equipment in modern production, serving as the ideal replacement for manual labor.

🛡️ Eliminates dust and fingerprint contamination issues common in manual handling.

💰 Reduces labor costs and significantly saves on packaging materials.

✨ Delivers a more professional and aesthetic packaging result compared to manual bagging.

Key Features

🔵Integrated functions: automatic film feeding, air release hole punching, and color mark tracking.
🔵Seamless integration into full-automatic production lines with multiple paper cup machines.
🔵On-line production automatically adjusts film length based on cup top diameter.
🔵Optional ink-jet printer for production dates, models, and batch numbers.

Technical Parameters

Parameter Item	Specification (TCJ-QZB750)
Product Type	Paper cup / Paper bowl
Top Diameter	Φ60mm-Φ95mm / Φ95mm-Φ150mm (Customizable)
Max. Stacking Length	630mm / 720mm
Packaging Material	HDPE, LDPE, PP, POF, PO
Film Thickness	12μm - 50μm
Max Speed	16 bags/min

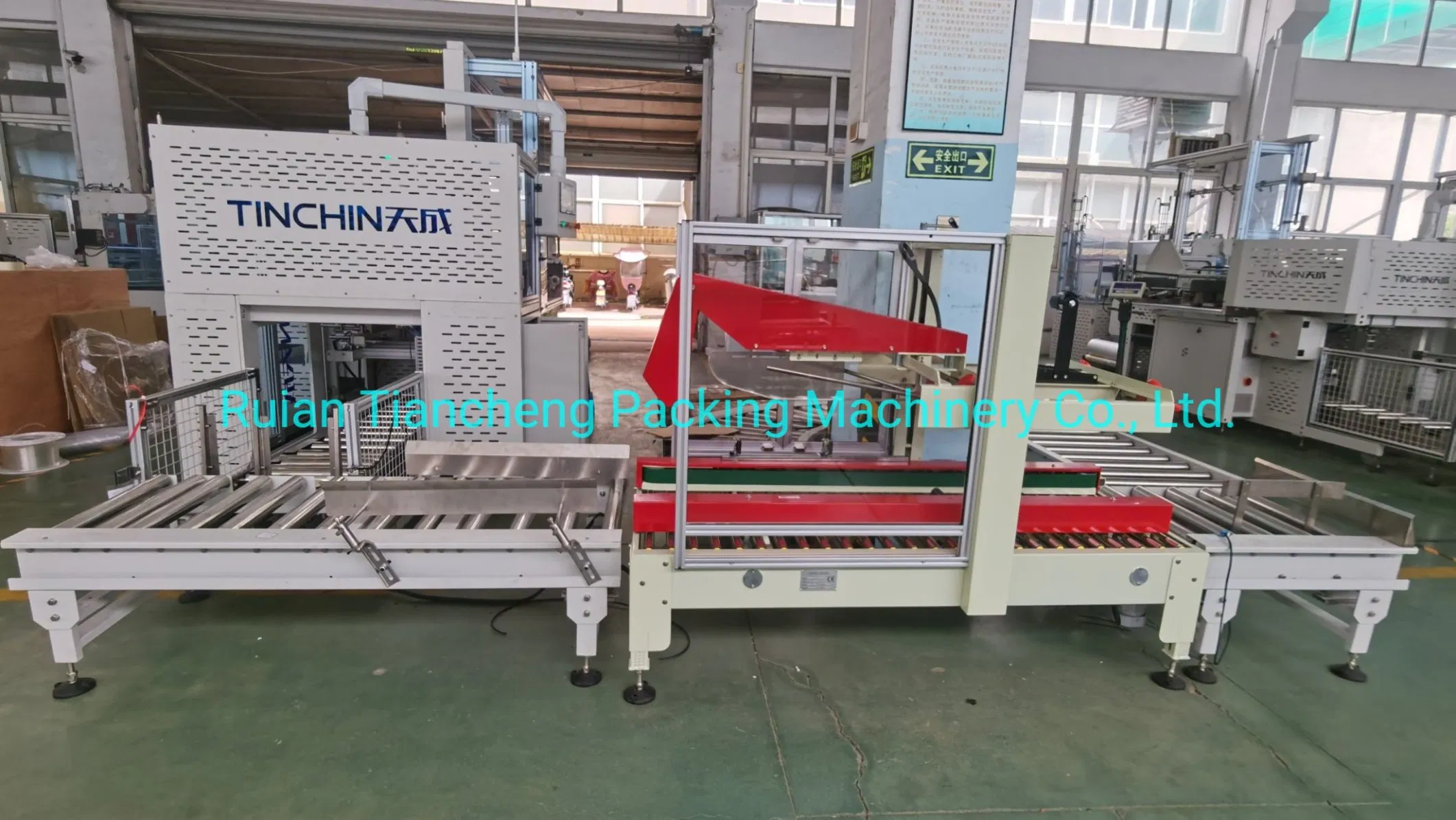

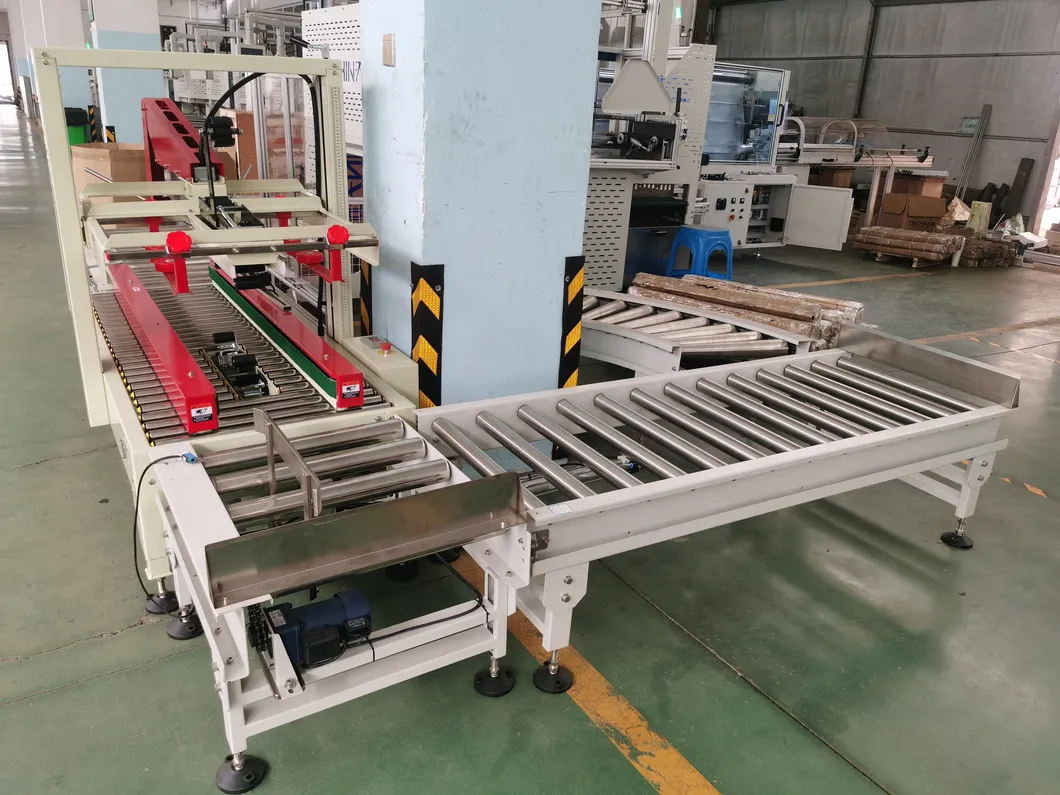

Case Machine Specifications

Feature	Details
Max. Packaging Speed	12 sleeves / min
Effective Cup Diameter	Φ60mm - Φ150mm
Carton Dimensions (LxWxH)	(350-500) x (240-450) x (330-600) mm
Electrical Requirement	0.8KW, Single Phase 220V 50HZ/60HZ
Air Requirement	0.6MPa

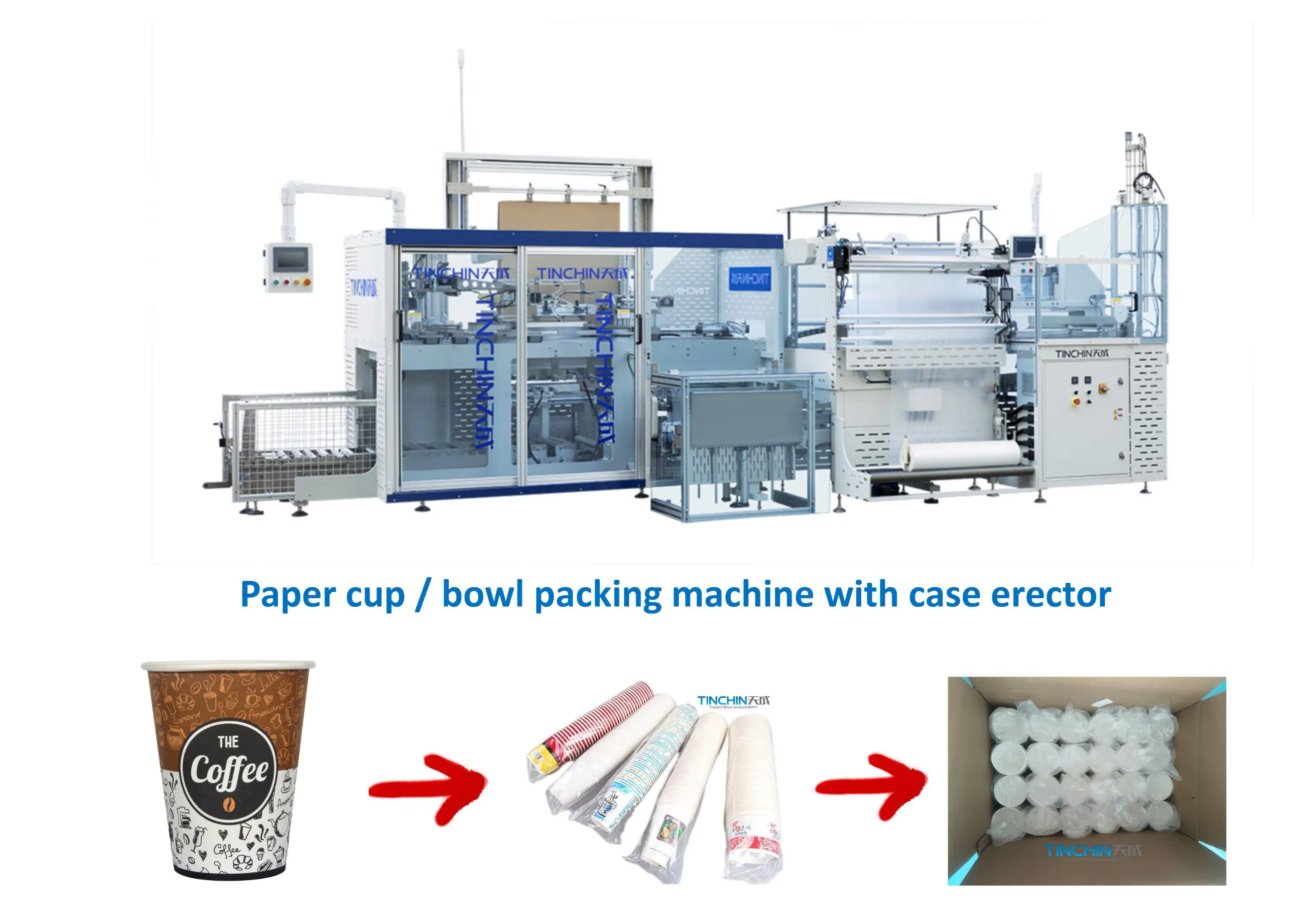

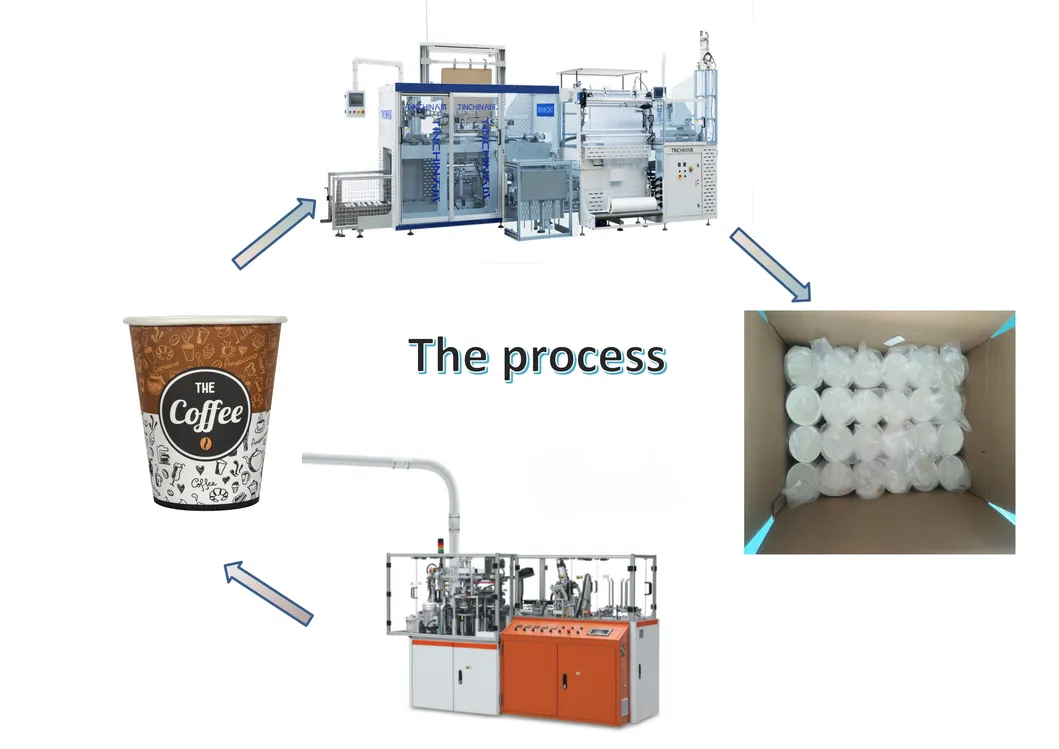

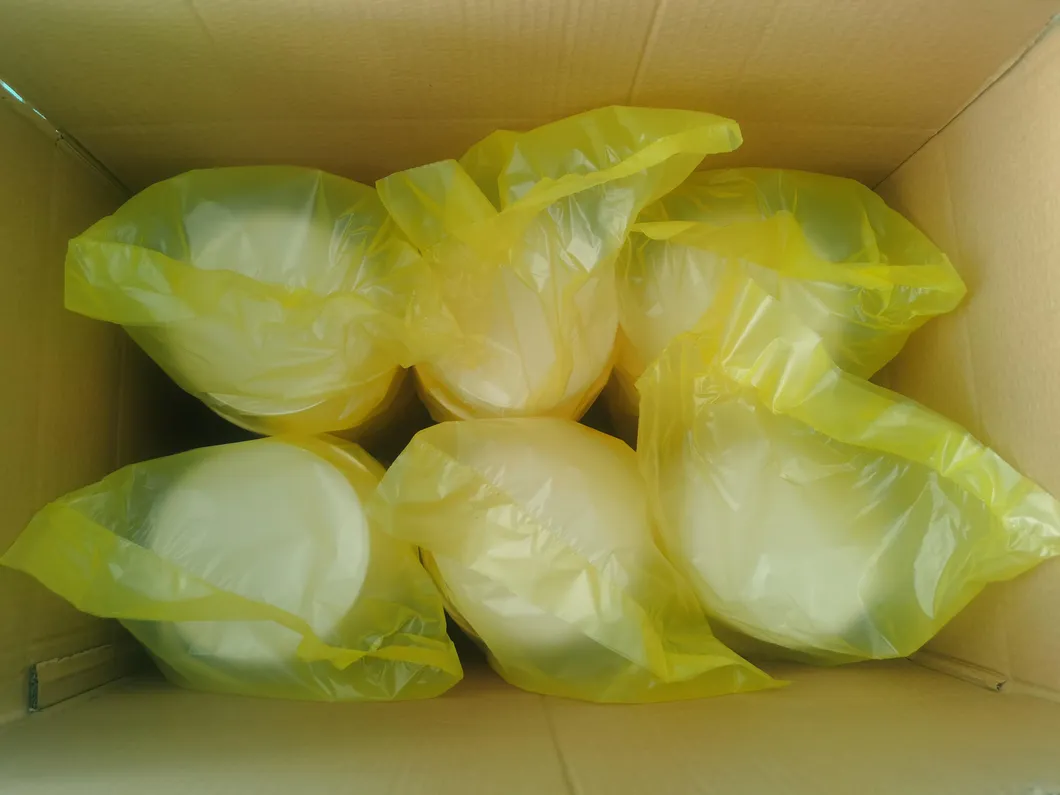

Applications & Process

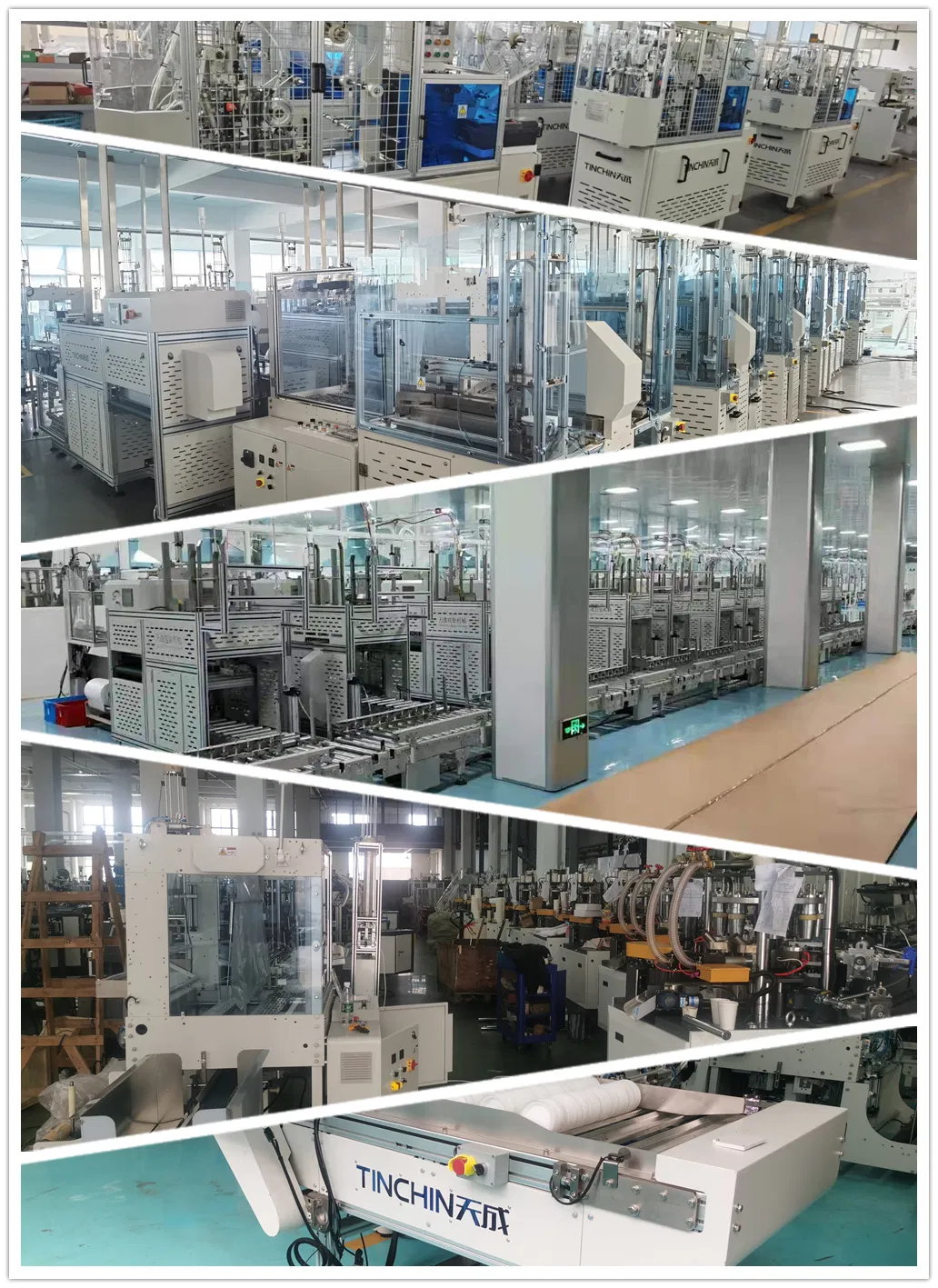

Workshop & Quality Control

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a specialized manufacturer in this field with 21 years of experience.

What is the product range for your packing machines?

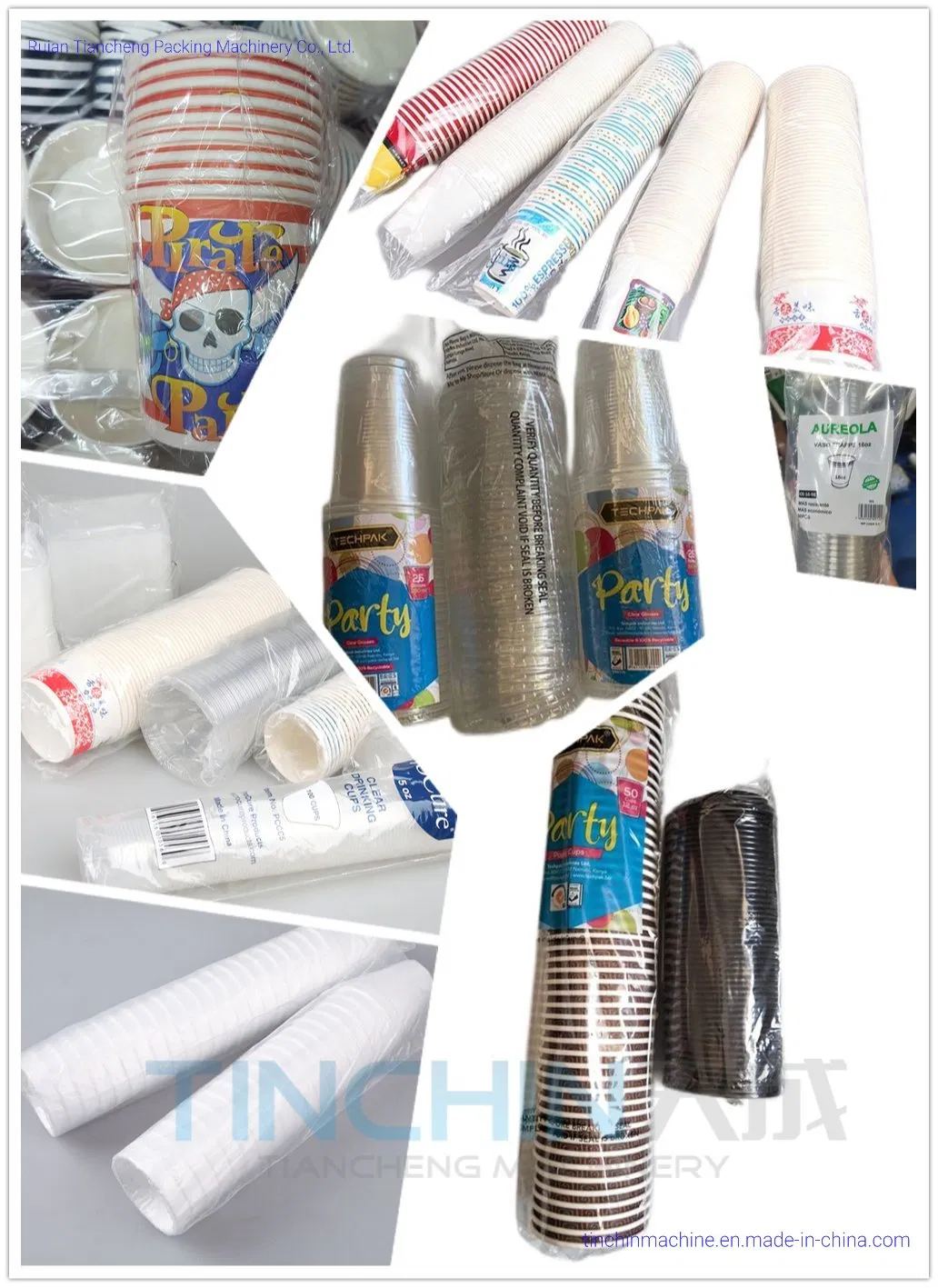

Our machines handle tea cups, milk tea cups, coffee cups, ice cream cups, yogurt cups, sauce cups, noodle bowls, and all types of disposable lids.

What cup sizes can be accommodated?

Standard sizes range from Φ60mm to Φ150mm top diameter. Other sizes can be customized upon request.

What information is needed for a quotation?

Please provide the required quantity, detailed cup dimensions (top/bottom diameter and height), and specific requirements for collection stations or case machines.

What are the advantages of your equipment?

We offer 21 years of industry expertise, global customer reach, CE certification, and a rapid-response support team.

What are the payment and after-sales terms?

Payment is typically 30% T/T deposit before manufacture and the balance before shipment. After-sales include engineer overseas service, video technical support, and online maintenance.
