📊 Basic Information
Required Paper
Single/Double PE/PLA/Water Based
📝 Product Description

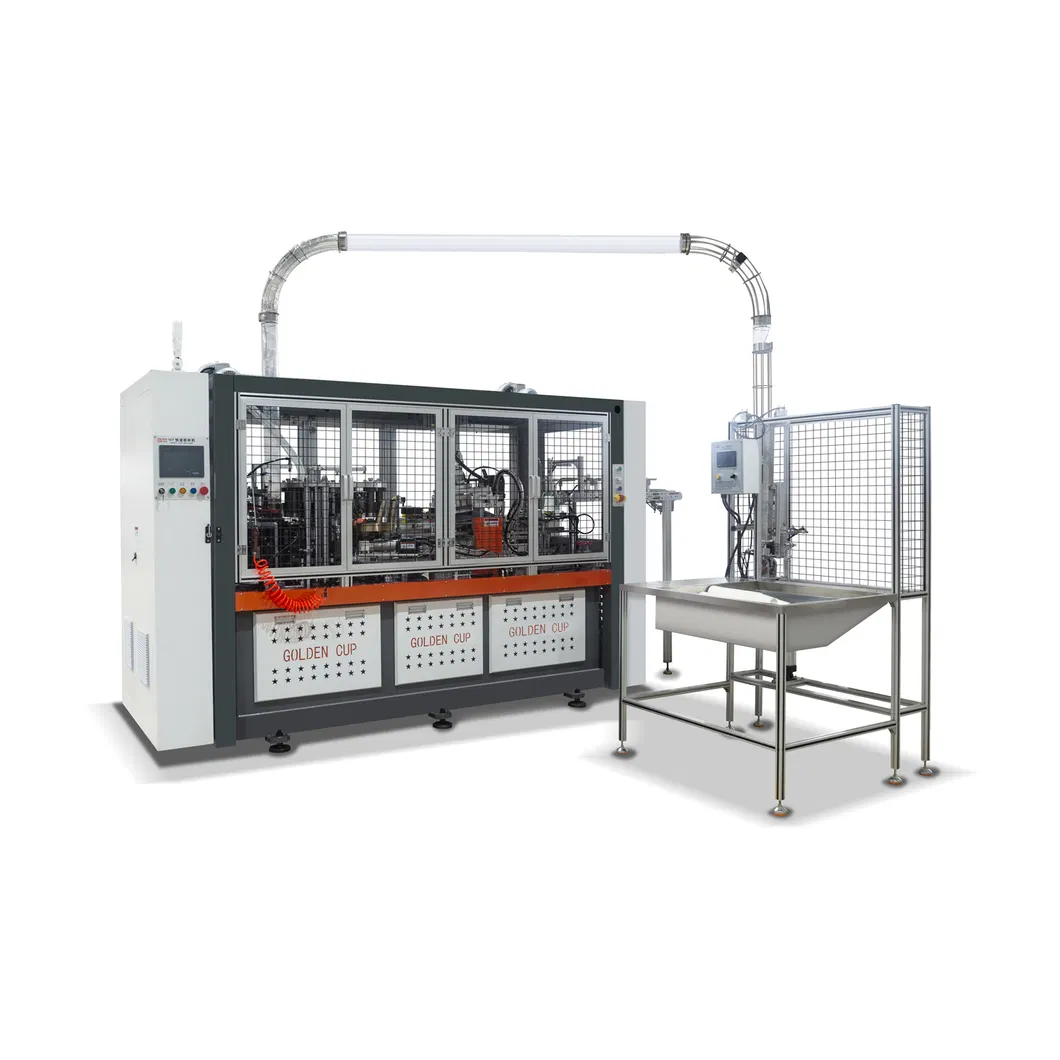

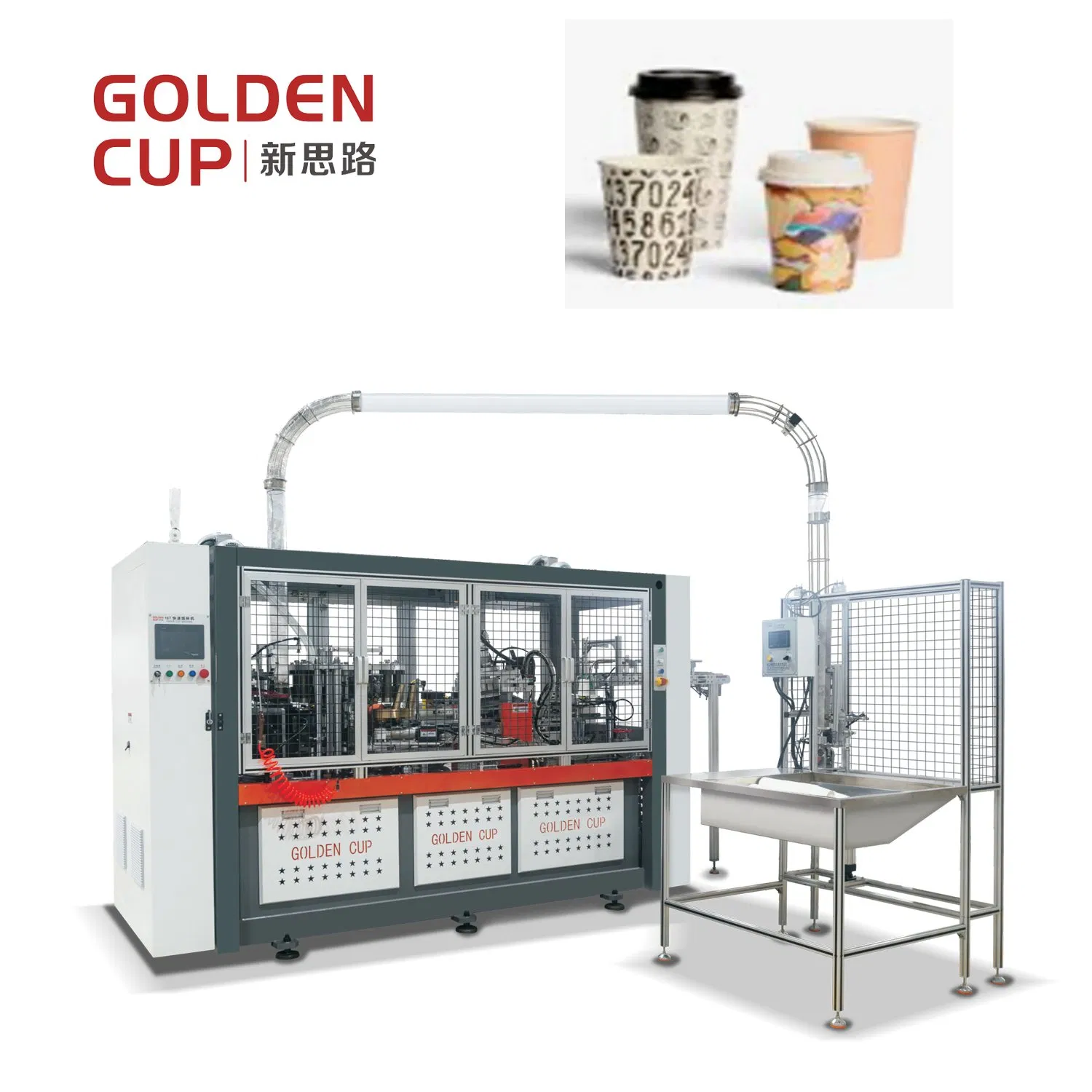

The XSL-16T paper cup machine features a tabletop layout that effectively isolates forming parts from transmission components. All transmission utilizes longitudinal shafts, barrel indexing cams, and gear systems, ensuring stability and precision. The components are continuously lubricated via a spray system for long-term durability.
The machine is fully controlled by PLC, with the entire production process monitored by photoelectric sensors. Feeding is handled by a high-precision servo system. An optional visual inspection system is available to automatically detect and remove disqualified cups, ensuring 100% quality output.
⚙️ Technical Parameters
| Parameter |
Specification |
| Model | XSL-16T High Speed Paper Cup Machine |
| Suitable Size | Top: 60-95mm | Bottom: 40-75mm | Height: 50-135mm |
| Production Speed | 120-150 pcs/min |
| Paper Requirement | 170-380gsm Single/Double PE Paper |
| Machine Weight | 3600kgs |
| Dimensions (L*W*H) | 3700*1300*2060mm |
| Air Consumption | 0.6-0.8m³/min |

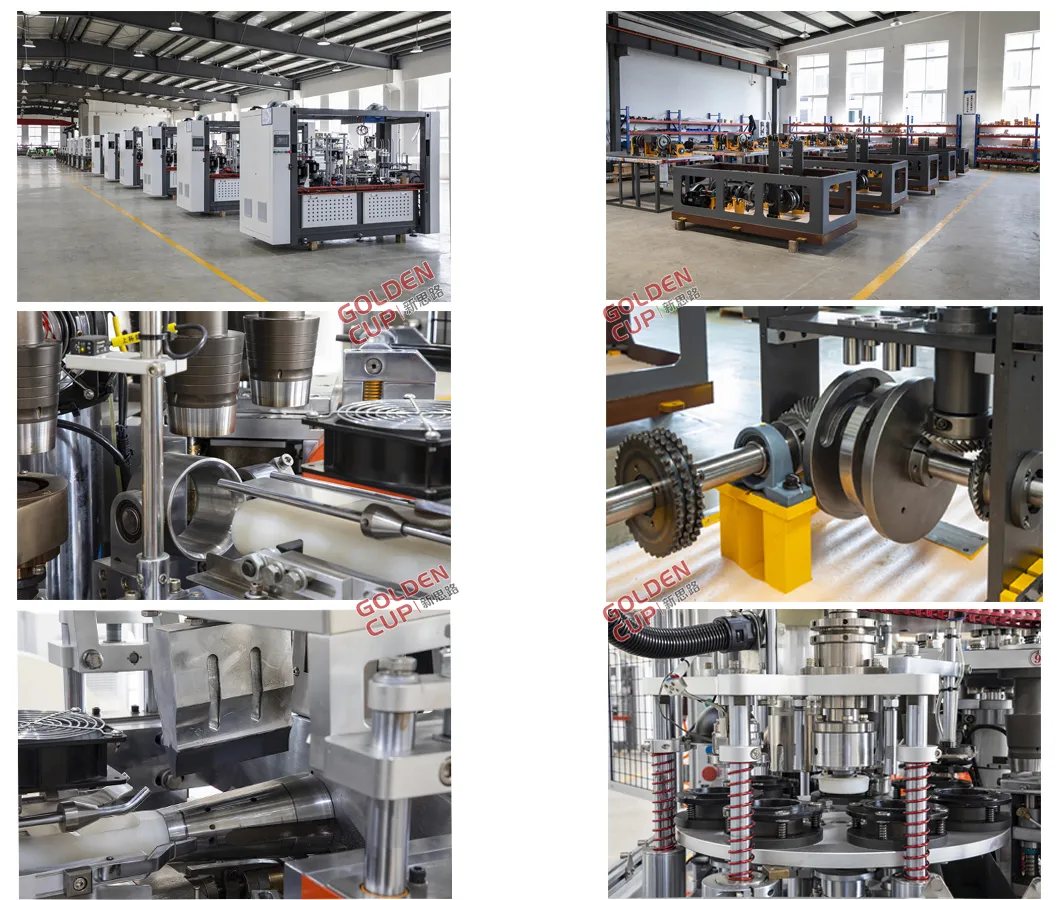

🔍 Detailed Photos
🏢 Manufacturing Excellence

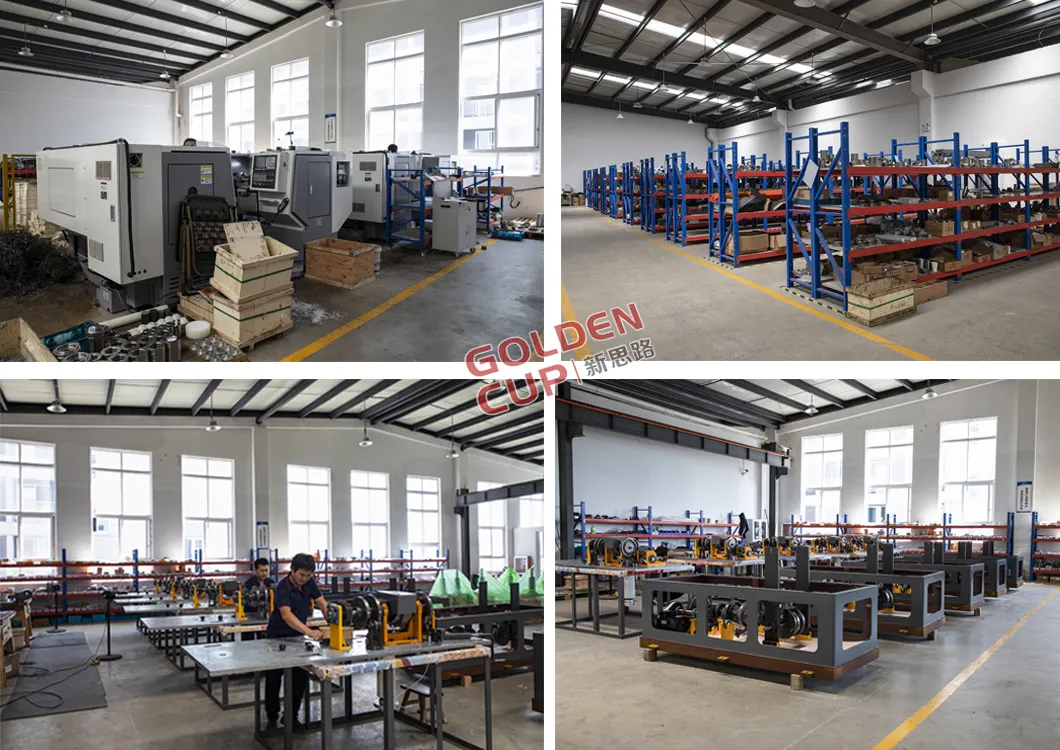

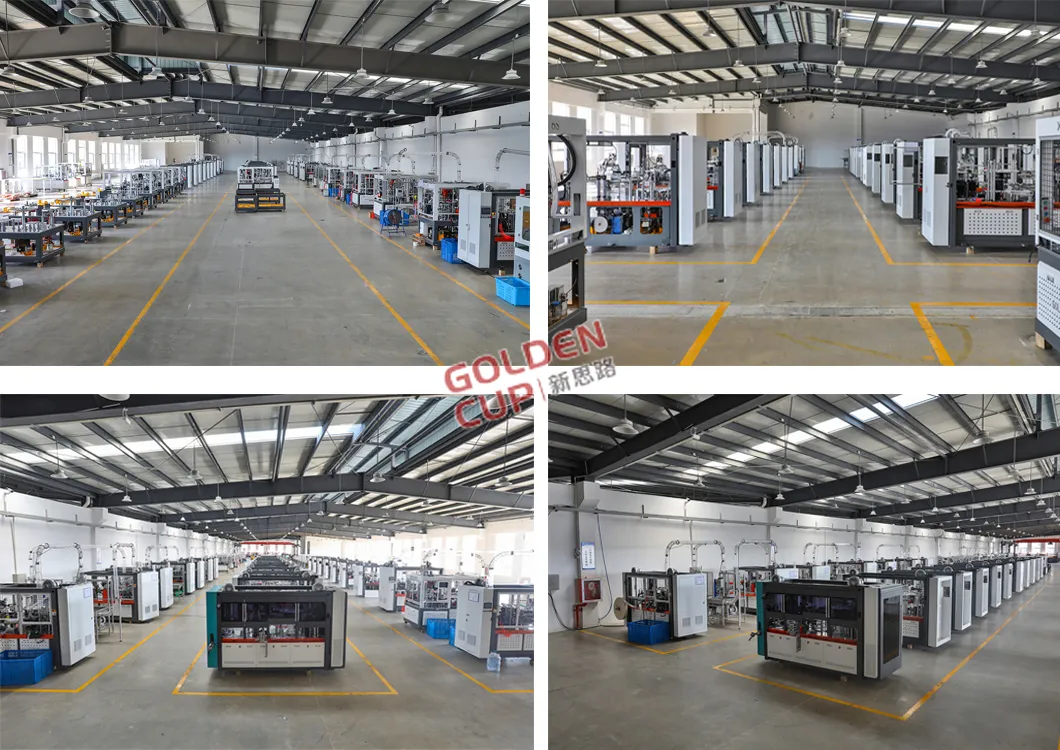

Our state-of-the-art facility spans approximately 10,000 square meters, equipped with advanced production capabilities. We specialize in high-speed paper cup machines, paper bowl machines, and double-wall sleeve machines. To ensure top-notch performance, we utilize components from renowned international brands for electrical parts and high-quality bearings sourced from Japan. The transmission part utilizes cam and gear mechanisms, eliminating the need for chains and incorporating a spray circulating lubrication system.
📦 Packaging & Shipping
All machines are securely packed in robust wooden cases to ensure safe international transit. Products are generally shipped from major ports to the destination by sea.
❓ Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer specializing in high-speed paper cup machinery with a dedicated production facility.
What range of cup sizes can your machines produce?

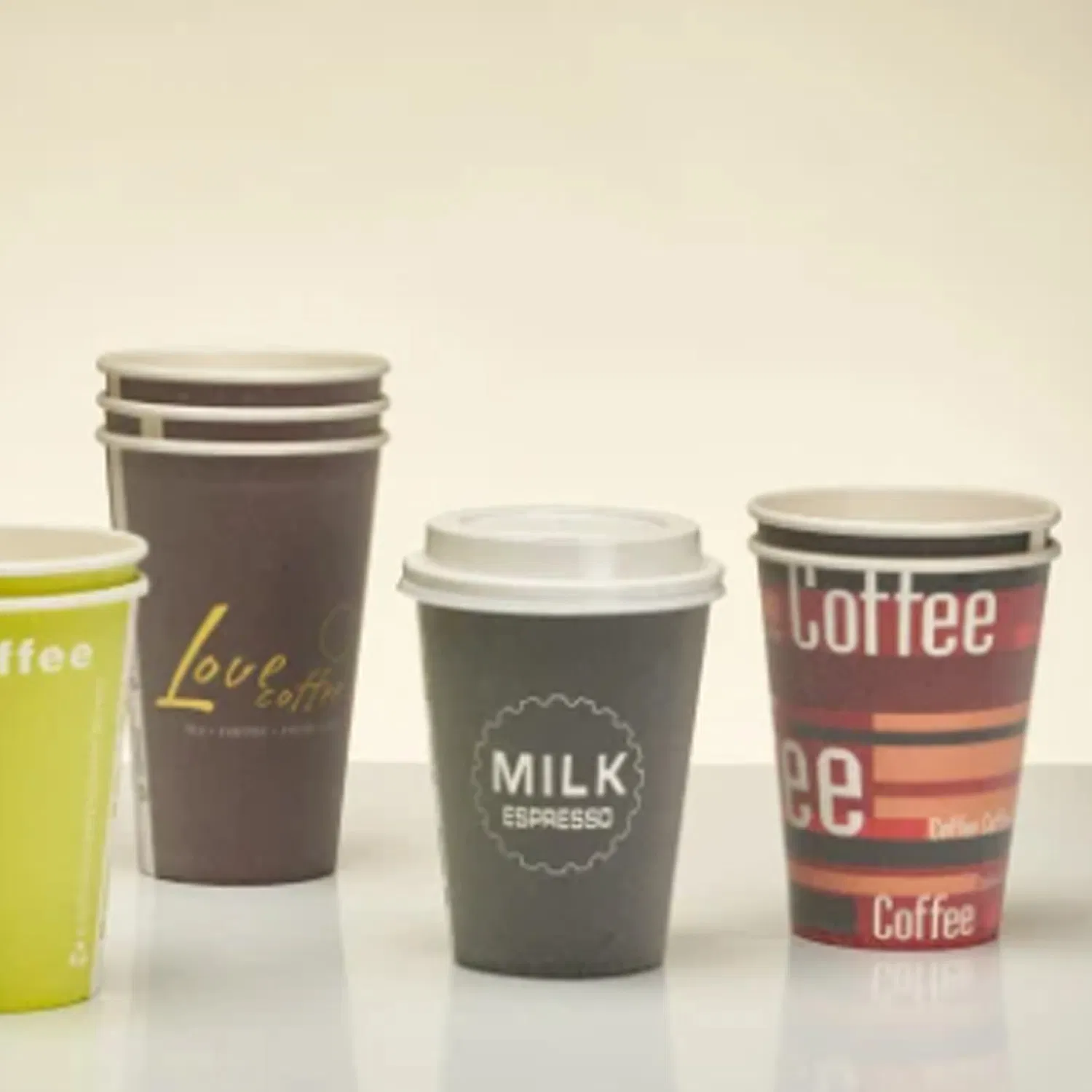

Our machines can produce sizes ranging from 4oz to 32oz using different molds. We can also accommodate non-standard sizes upon technical confirmation.
What is the standard delivery time?
Standard machines generally require 45 working days after receiving the deposit and confirming the final technical drawings.
What is the warranty period for the machine?
We provide a 3-year warranty for the cam transmission parts and a 1-year warranty for electrical components, along with lifetime maintenance services.
How do you handle after-sales technical support?
We provide on-site installation and training. If any issues arise during operation, our team responds immediately via phone or video guidance to solve the problem.
What information is needed for a quotation?
Please provide the required quantity, detailed cup dimensions (top/bottom diameter and height), and the paper thickness (gsm) you plan to use.
