Customization: Available
Application: Machinery&Hardware
Type: High-Speed Slitting Machine
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
FQ-1600
Work Method
Round Knife Cutting
Structure
Frame Part
Packaging
Case
Applicable Process
Process Materials
Suitable Substrates
Paper
Packaging Material
Wood
Automatic Grade
Automatic
Main Function
Slitting and Rewinding
Speed
150-300m/Min
Voltage
380V
PLC
Yes
Touch Screen
Yes
Transport Package
Wooden Box
Specification
3900x1700x1250mm
HS Code
8441100000
Production Capacity
500 Sets/Year
⚙️

Product Description

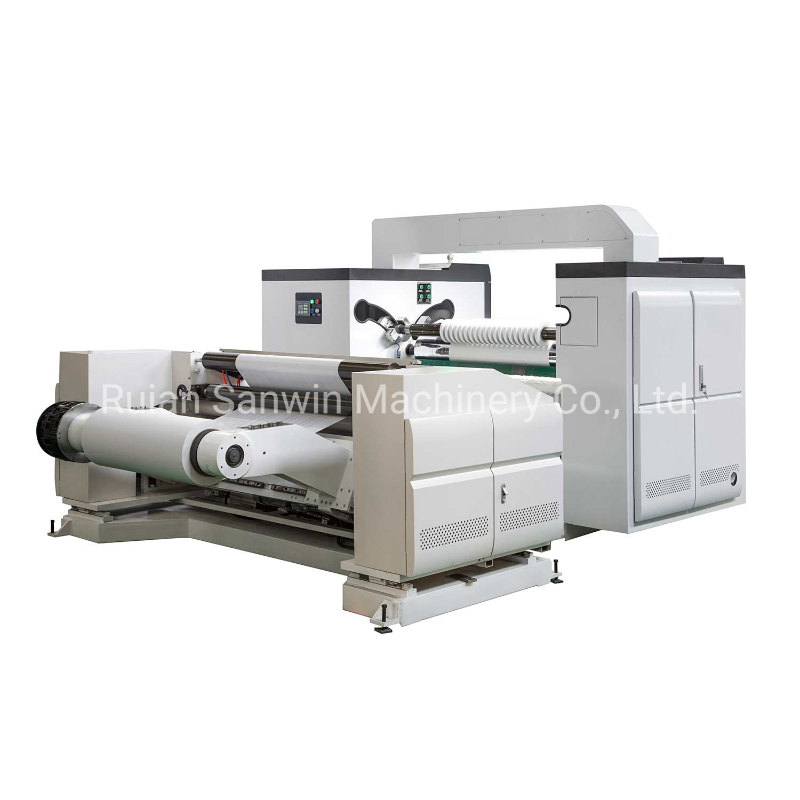

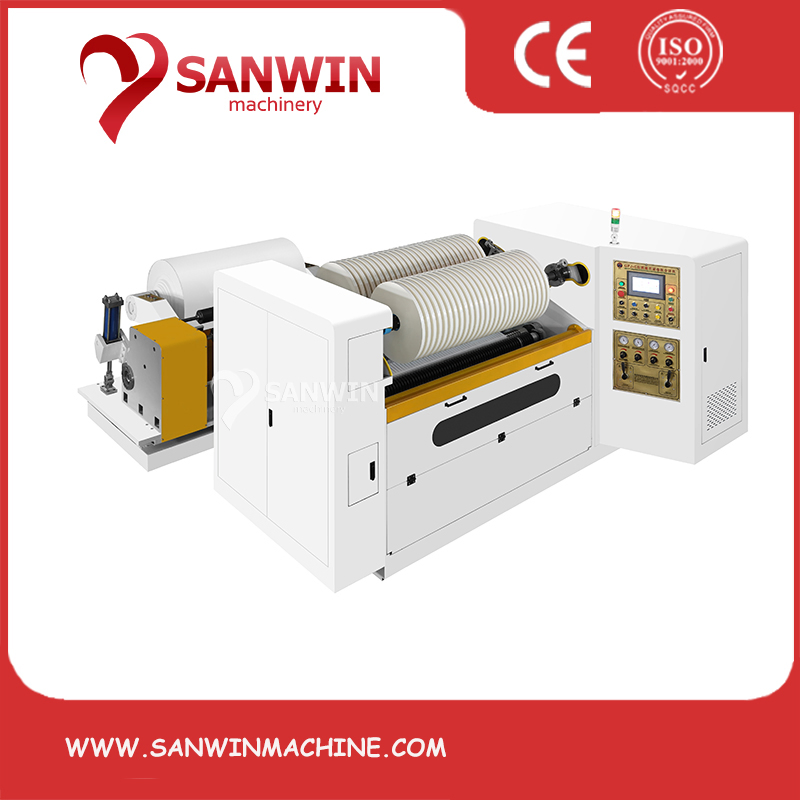

Automatic High Speed Jumbo Roll Paper Slitting Machine

Automatic High Speed Slitting Machine Header

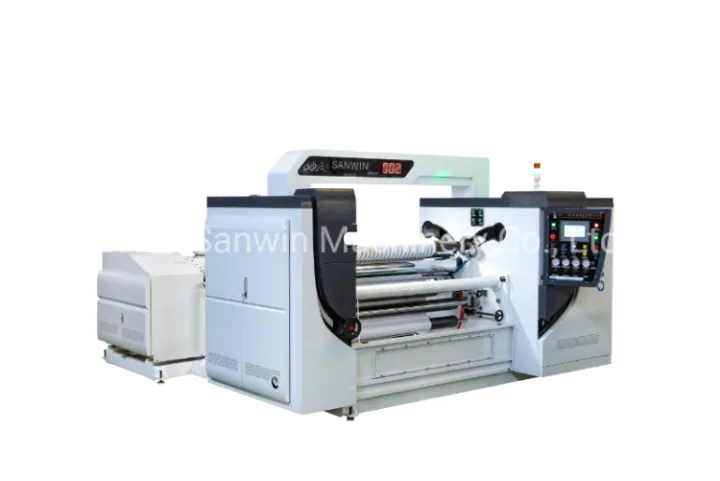

Machine Overview

Application

This type automatic slitting machine is suitable for slitting wide roll BOPP, PET, Non woven fabric, Paper etc. according to production let roll material slitting, scrap waste side. The structure of the complete machine is compact, fast with high efficiency, easy and steady operation.

Key Features

  • ✔ 1. This machine installs a round knife device, it can slit the rolls paper within 350g.
  • ✔ 2. Independent master control screen, more flexible and even easier operation.
  • ✔ 3. Automatic deviation-rectifying of releasing; photoelectric eye is suitable for tracking the edge and color of transparent material.
  • ✔ 4. Releasing tension adopts magnetic powder clutch control.
  • ✔ 5. Rolling adopts magnetic clutch control.
  • ✔ 6. Automatic slitter edge blowing-inhaling device.
  • ✔ 7. Automatic meter counting of material moving length.
📊

Main Technical Parameter

Unwind Width1600mm
Unwind Diameterφ1000mm
Rewind Diameterφ1000mm
Working Speed0-300meters/min
Mini Slitting Width50mm
Speed regulationBy Inverter(5.5kw)
Material Loading DeviceAirshaft φ3inch
Loading TypePneumatic
Rewinding Type (2 PCS)Air Inflation Shaft
Power Supply380V/3Phase/50Hz
Measurement3000*1700*1550mm
Weight3200kgs
Total Power8kw
Inverter5.5KW
Main Motor5.5
PLC CONTROLSimens
Touch ScreenChina
🔍

Component Details

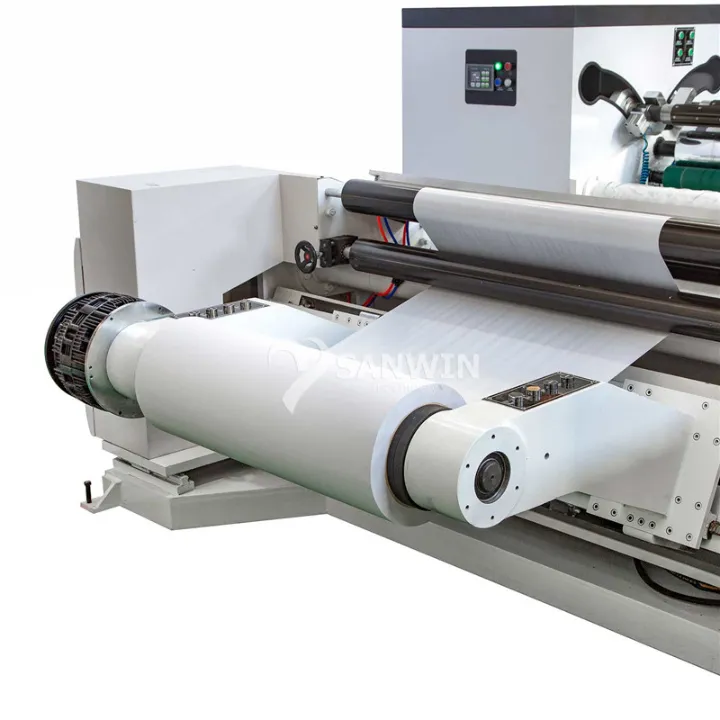

1. Unwinding Unit (Auto load)

Unwinding unit

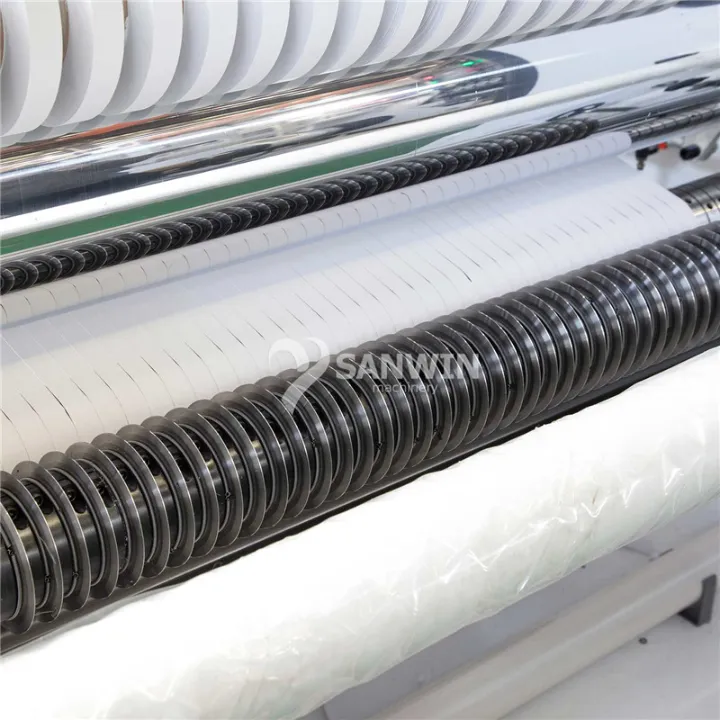

2. Cutting Knives

Cutting Knives

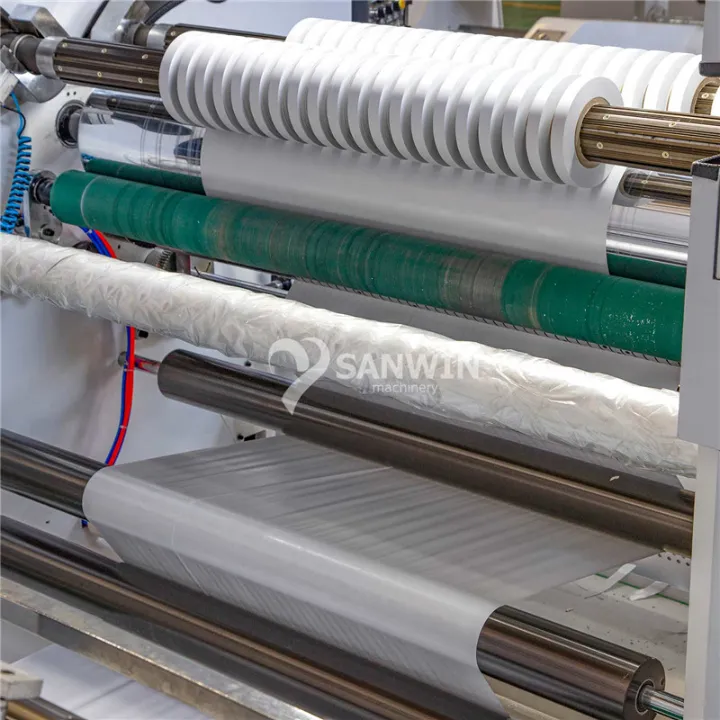

3. Rewinding Part

Rewinding Part

Control System & Interface

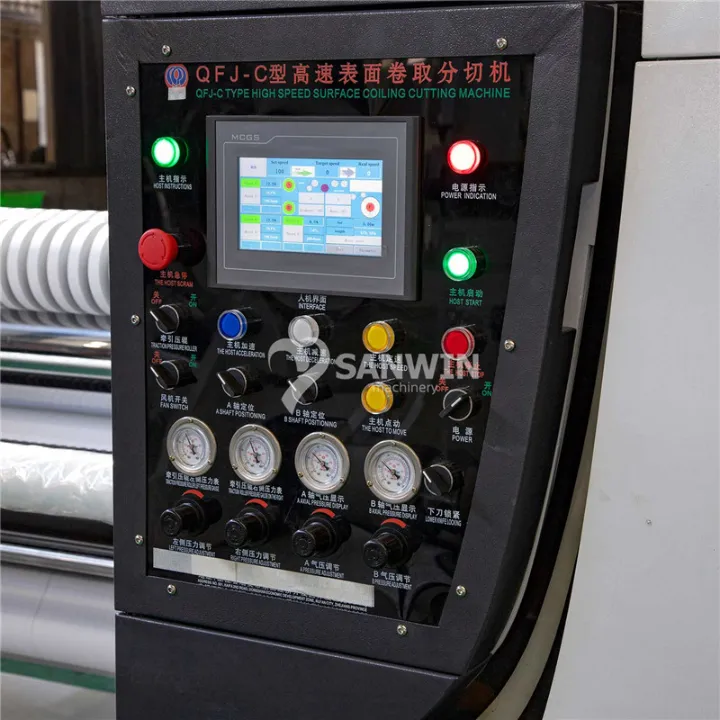

Control 1

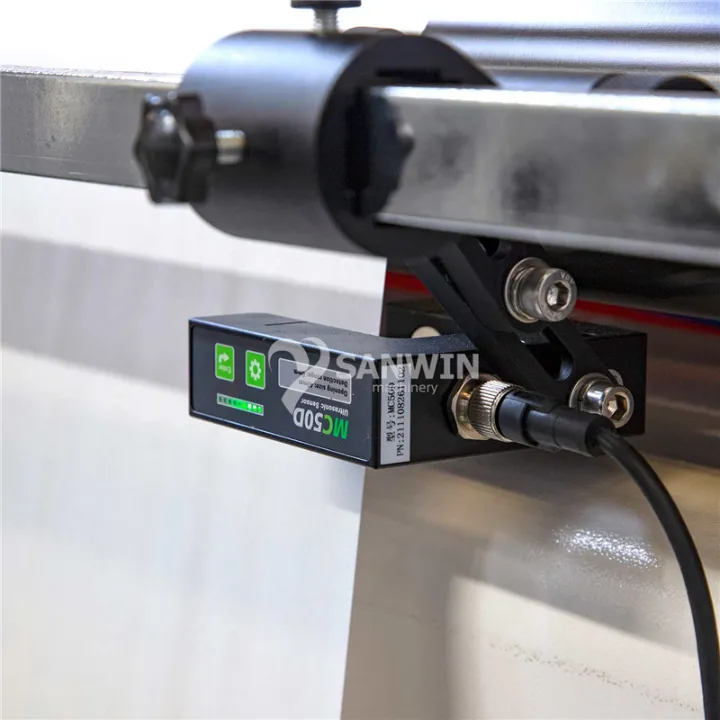

Control 2

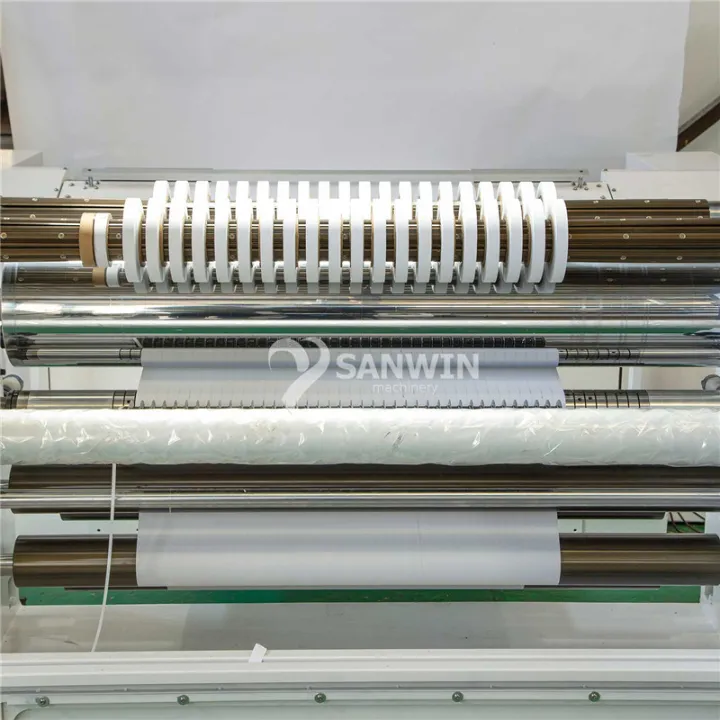

Control 3

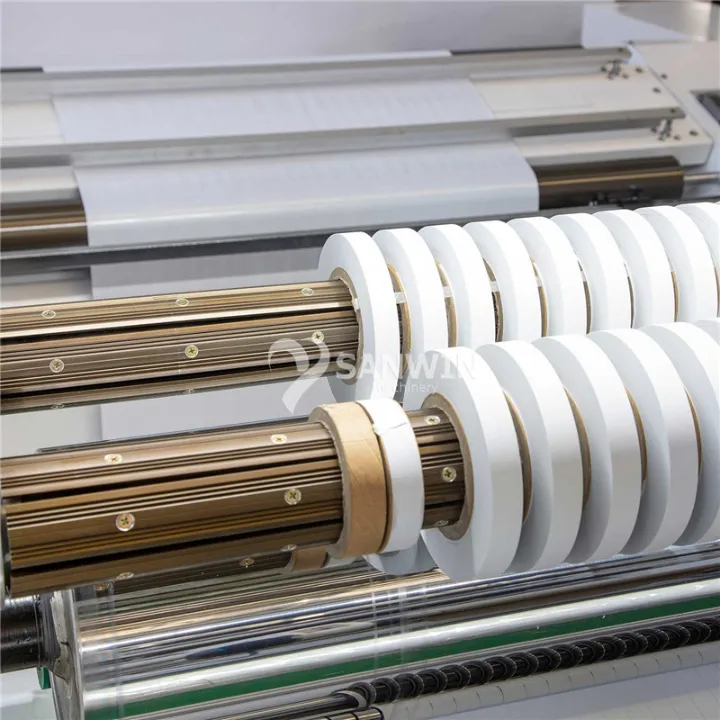

Control 4

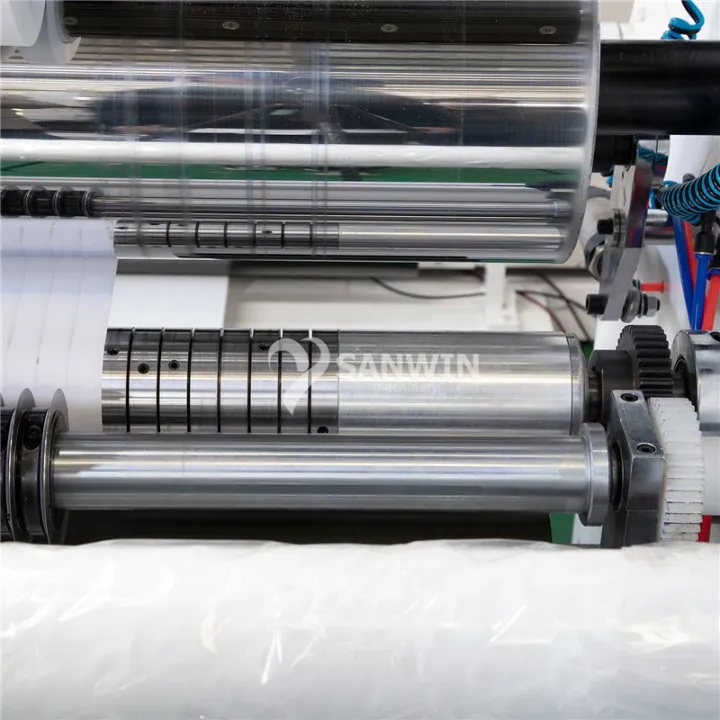

Control 5

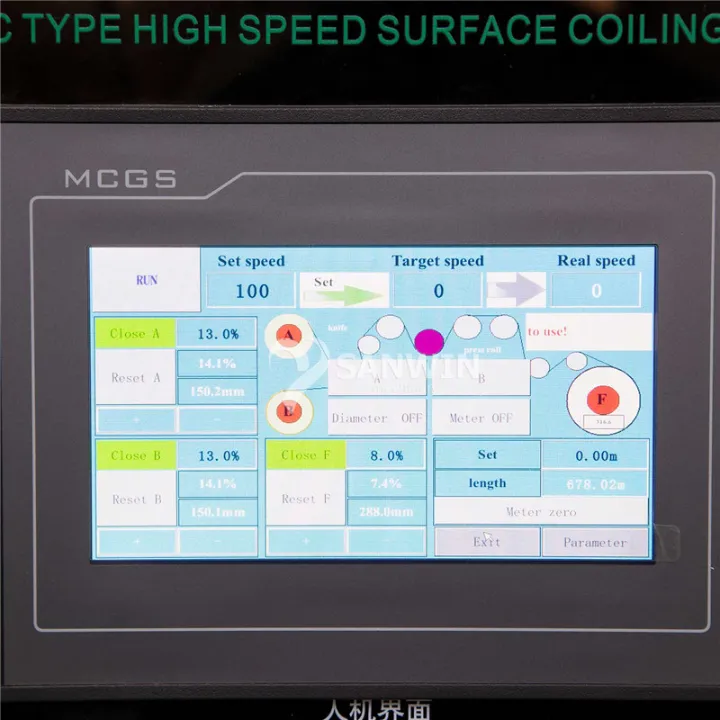

Control 6
Full Machine View
❓

Frequently Asked Questions

Q1: What materials can this slitting machine process?
This machine is versatile and suitable for slitting BOPP, PET, non-woven fabrics, and various types of paper up to 350g.
Q2: What is the maximum working speed of the FQ-1600?
The machine operates at a high speed ranging from 150 to 300 meters per minute, depending on the material and thickness.
Q3: Does the machine include automatic tension control?
Yes, it utilizes magnetic powder clutch control for both releasing and rolling tension to ensure stable operation.
Q4: How is the material aligned during the slitting process?
The machine features an automatic deviation-rectifying system with a photoelectric eye that tracks the edges or color codes of the material.
Q5: What type of control system does the machine use?
It is equipped with a Siemens PLC and an independent touch screen for flexible and user-friendly operation.
Q6: What is the minimum slitting width possible?
The minimum slitting width for this model is 50mm, making it suitable for various narrow-roll requirements.
