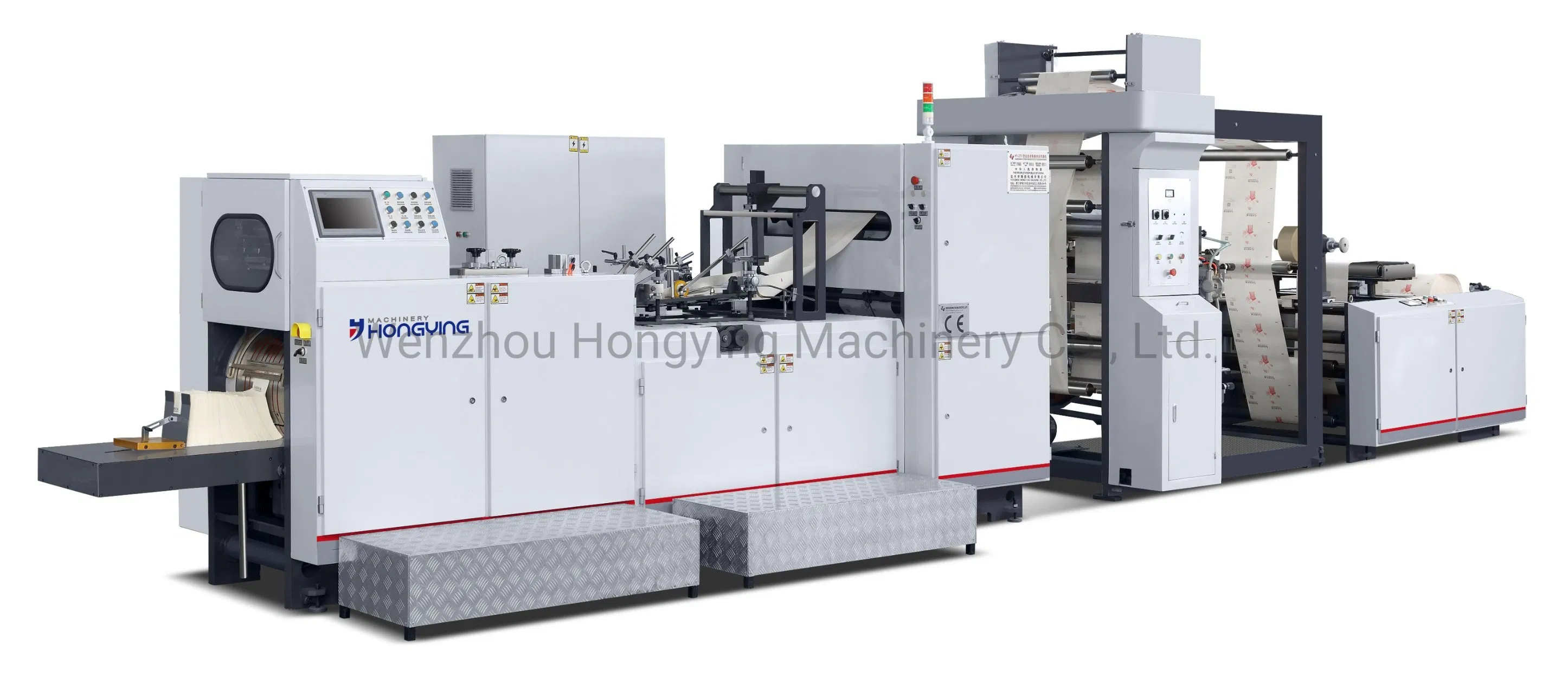

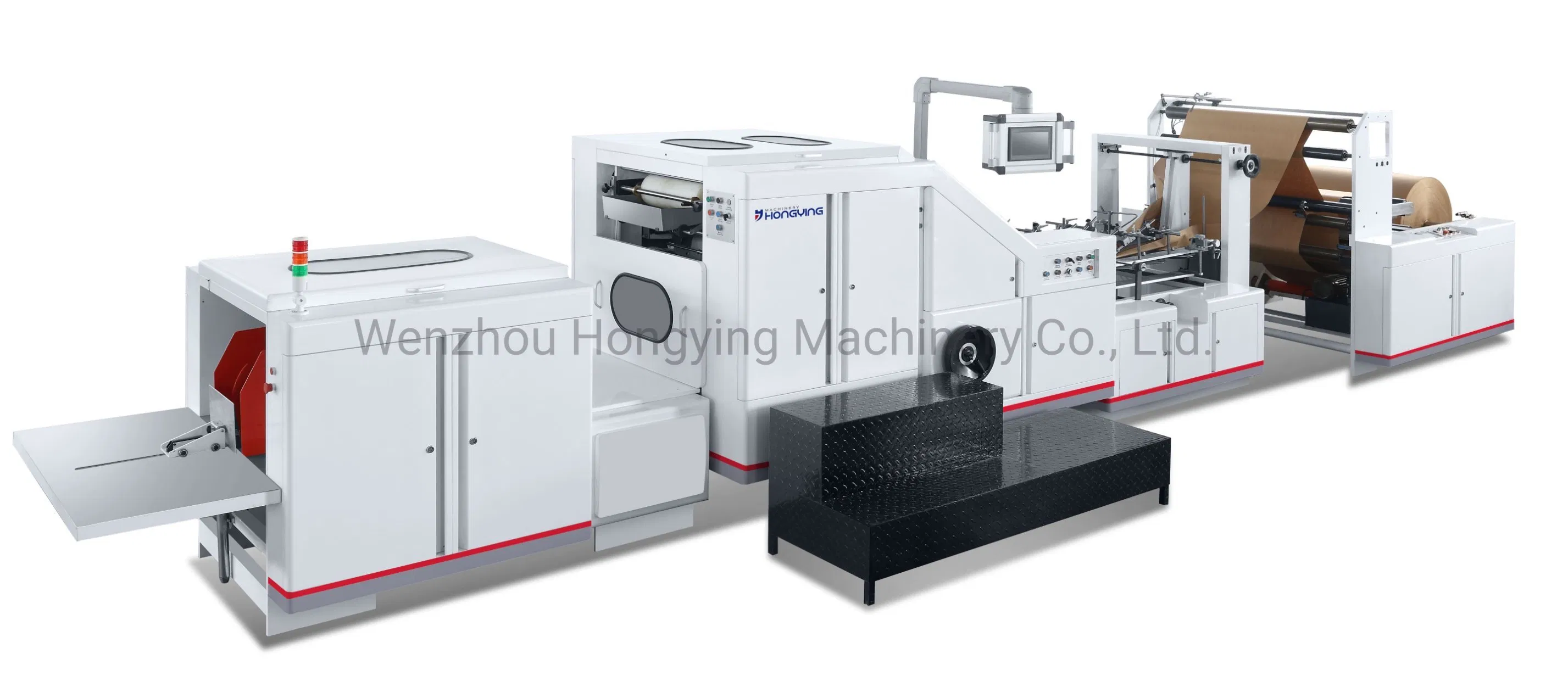

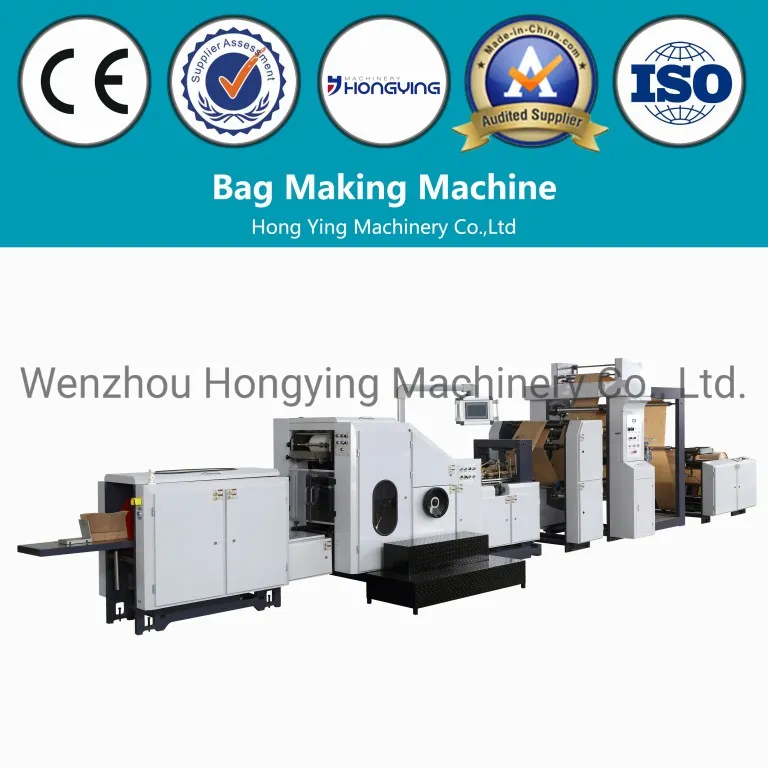

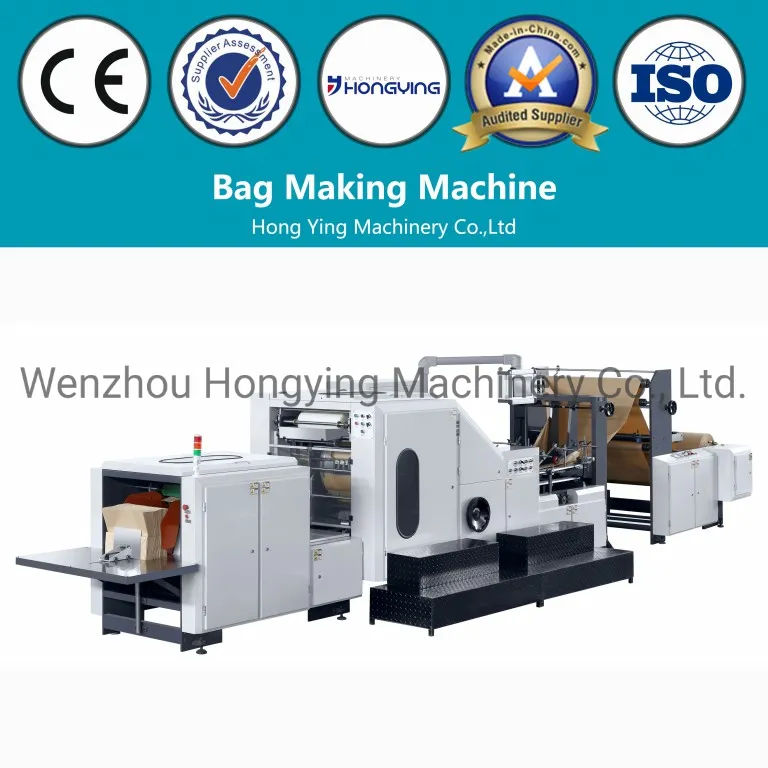

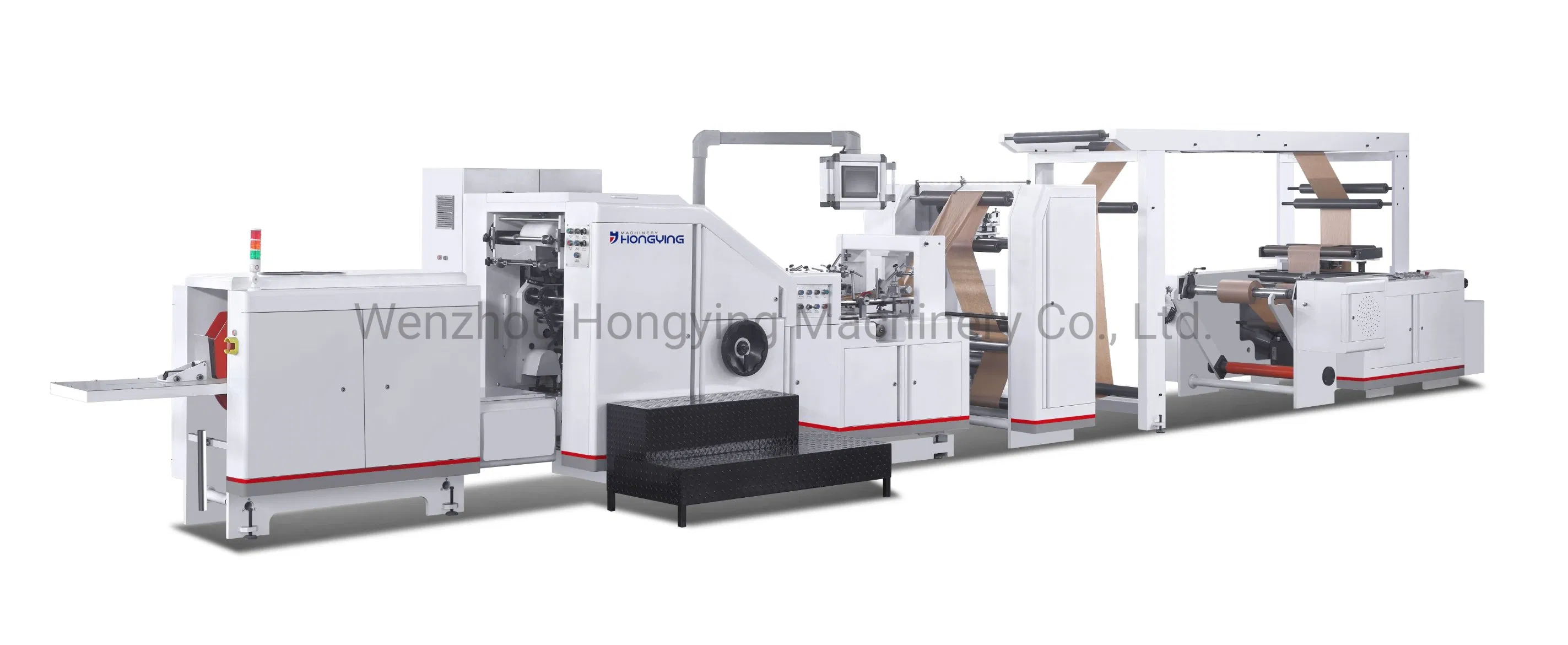

SBR-460B9 paper bag making machine with handle in line
This machine is designed for handle square bottom paper bag production. The handle forming section forms the twisted core and paper strip in roll into handles, which are then transferred to the application section. All steps, including side gluing, tube forming, cut-off, and bottom forming, are completed in-line. It is an ideal equipment for producing variable sizes of paper bags with handles.
Paper Bag Size Range (With Handle):
- Tube Length: 370 to 630 mm
- Bag Body Width: 230 to 450 mm
- Bottom Width: 75 to 180 mm
- Paper Thickness: 100 to 180 gsm
Paper Bag Size Range (Without Handle):
- Tube Length: 370 to 750 mm
- Bag Body Width: 220 to 450 mm
- Bottom Size: 75 to 180 mm
- Paper Thickness: 80 to 180 gsm
Machine Parameters:
- Max. Production Speed: 100 Pieces/Min
- Max. Paper Roll Diameter: 1500mm
- Max. Paper Roll Width: 1300mm
- Total Power: 35KW
- Weight: Approx 15000Kg
- Overall Dimension: L15000mm x W6500mm x H2700mm
❓ Frequently Asked Questions
What is the maximum production speed of the SBR-460B9?
The machine can reach a maximum production speed of 100 pieces per minute, depending on paper quality and operator skill.
What types of bags can this machine produce?
It is designed for square bottom paper bags, including shopping bags, garment bags, bread bags, and food bags, with or without handles.
What paper thickness is compatible with this equipment?
For bags with handles, it supports 100-180 gsm paper. For bags without handles, it supports 80-180 gsm paper.
Which control systems are integrated into the machine?
The machine features a German Siemens PLC for centralized control, Yaskawa servo motors from Japan, and a Schneider electric system.
Does the machine handle the gluing process automatically?
Yes, it features an automatic gluing system, including side glue application and bottom glue application, using high-quality Italian Zator equipment.
What is the maximum paper roll diameter supported?
The machine supports a maximum paper roll diameter of 1500mm, which helps minimize the frequency of roll changes.
