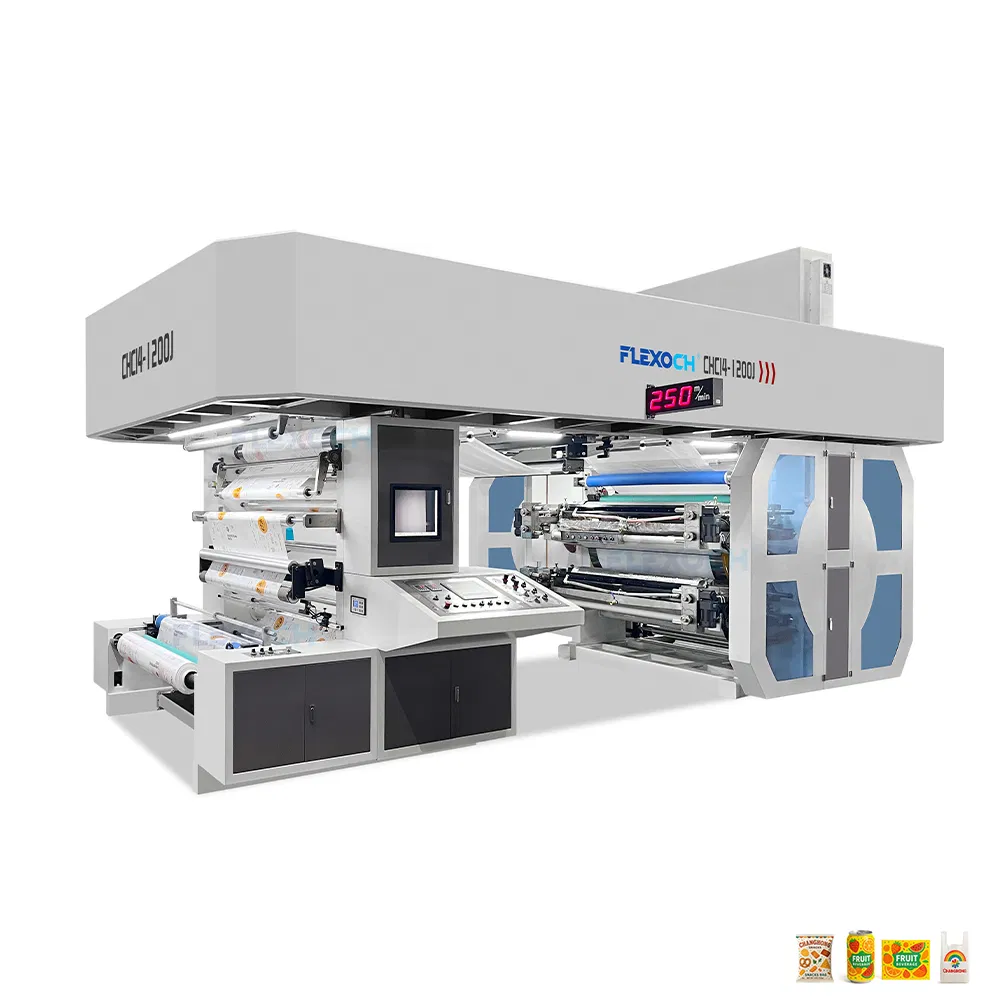

High Speed 4 6 8 Color Central Drum Ci PE Plastic Film Bag Flexo/Flexographic/Flexography Printing Machine Printer for Paper Cup

Basic Specifications

Model NO.

CHCI-J-S

Printing Color

4 Colors

Anilox Roller

Ceramic Anilox Roller

Dryer

Electric Drying

Type

Roller to Roller

Embossing Structure

Rotary Letterpress

Structure

Satellite

Application

Pre Printed Carton

Automatic Grade

Automatic

Printing Speed

250m/Min

Power

45kw

Tension

Magnetic Power and Auto Tension Controller

EPC System

Edge Position Control

Unwinder

Single Unwinder

Rewinder

Single Rewinder

Shaft

Air Shaft

HS Code

8443160090

Production Capacity

20sets/Month

Packaging & Delivery

Package Size

5500.00cm * 2000.00cm * 2600.00cm

Gross Weight

9000.000kg

Transport Package

Wrapping Film

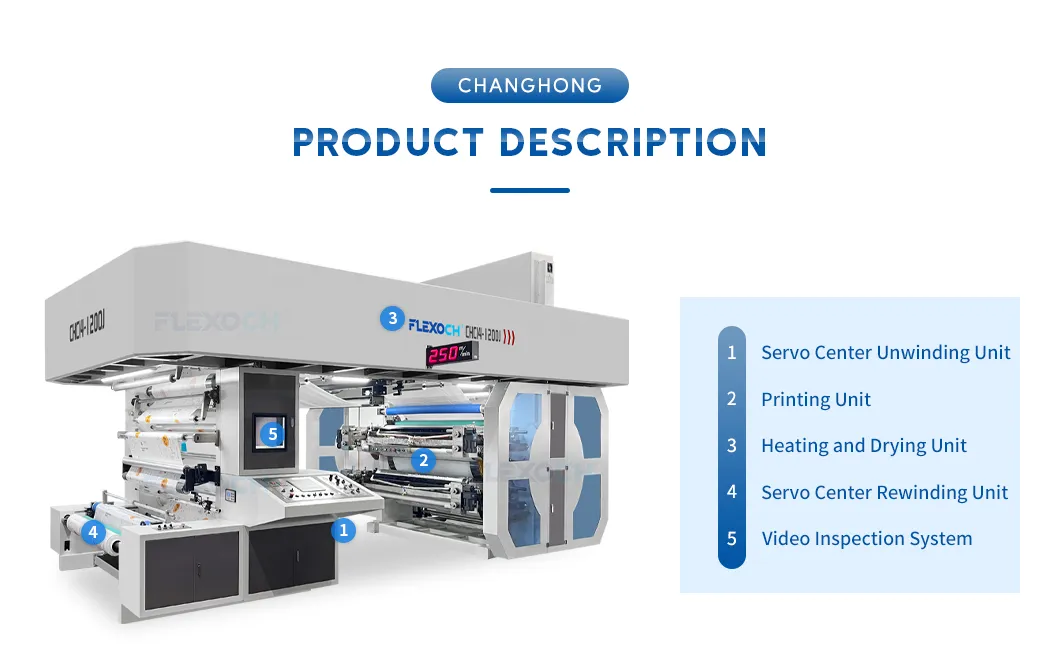

Product Description

●

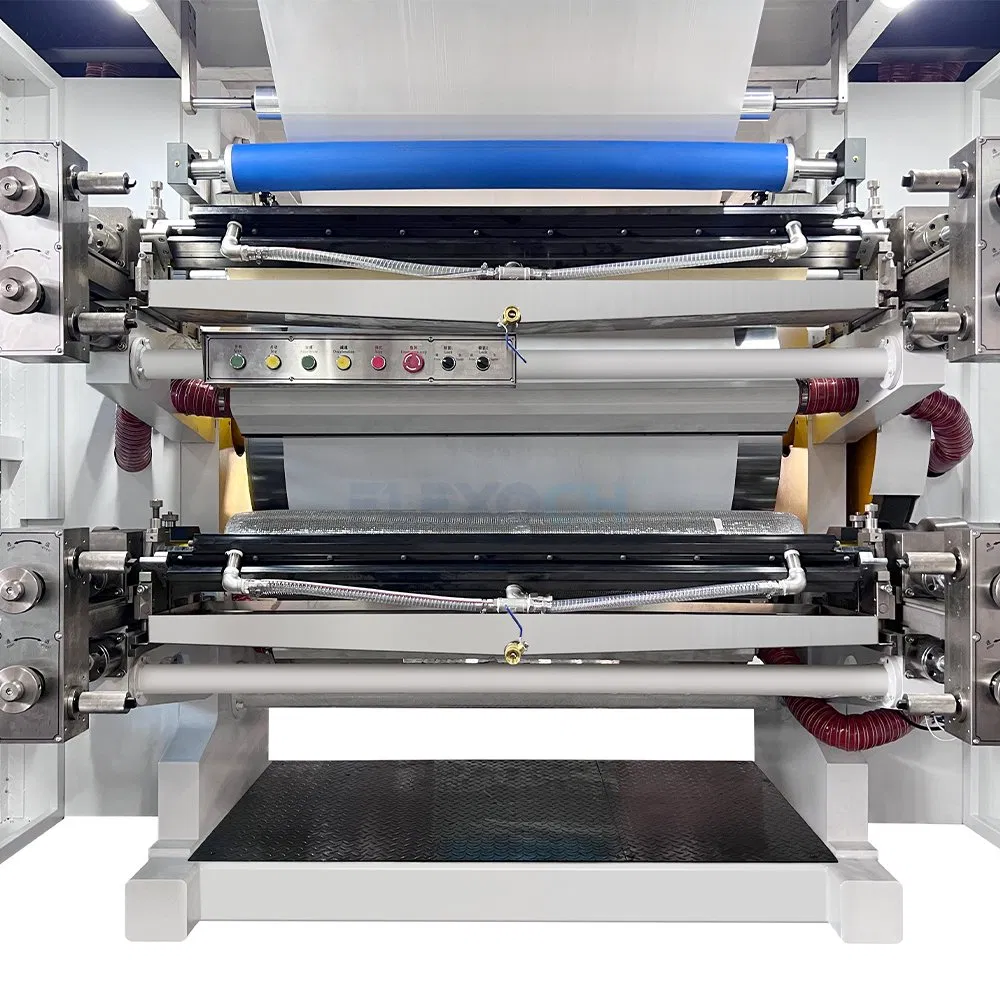

Central Impression Drum Configuration: Everything runs around one central drum — and for thin-gauge films, that matters more than most people realize. It's the secret sauce that maintains registration and prevents print quality from going haywire during a run.

●

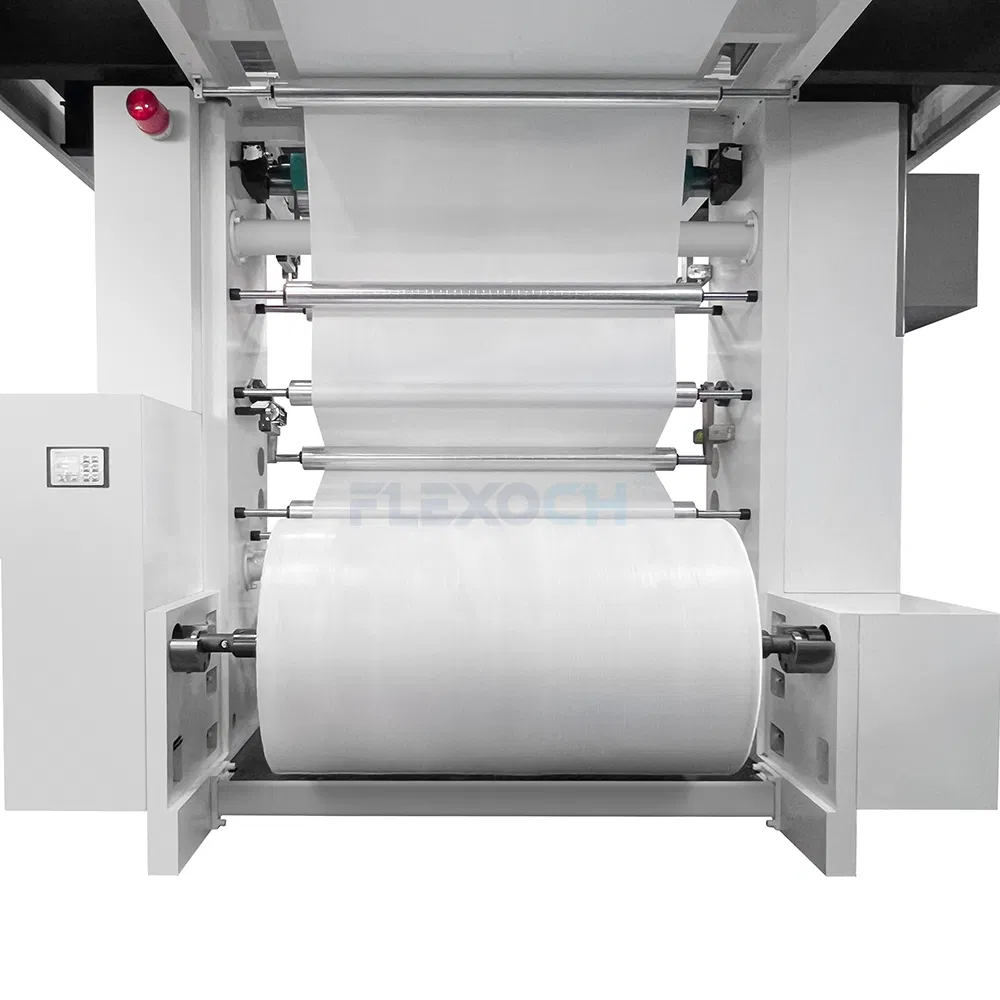

Servo Motor Unwind and Rewind Systems: Both the unwind and rewind sides run off precision servo motors, so tension is actively managed throughout the entire roll, right down to the core.

●

High-Speed Operation: The press holds up reliably at speeds reaching 250 m/min. Print quality doesn't noticeably drop off as speeds climb.

●

Full-Width Turner Bar: Built right into the web path, making full web reversal straightforward for double-sided printing or non-standard web configurations.

●

In-Line Slitting Function: Slitting is handled on the press itself, removing a chunk of handling time out of the workflow.

●

User-Friendly Control Panel: One centralized control system covers setup, operation, and troubleshooting, keeping downtime short.

●

Flexible Ink Compatibility: Water-based and solvent-based inks both run without issue, adapting to different packaging applications.

Technical Specifications

Model	CHCI-600J-S	CHCI-800J-S	CHCI-1000J-S	CHCI-1200J-S
Max. Web Width	650mm	850mm	1050mm	1250mm
Max. Printing Width	600mm	800mm	1000mm	1200mm
Max. Mechanical Speed	250m/min
Max. Printing Speed	200m/min
Max. Unwind/Rewind Dia.	φ1200mm/φ1500mm
Drive Type	Central drum with Gear drive
Printing Length (repeat)	350-900mm
Electrical Supply	Voltage 380V. 50 HZ. 3PH or specified
Ink	Water base ink or solvent ink
Range of Substrates	LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon

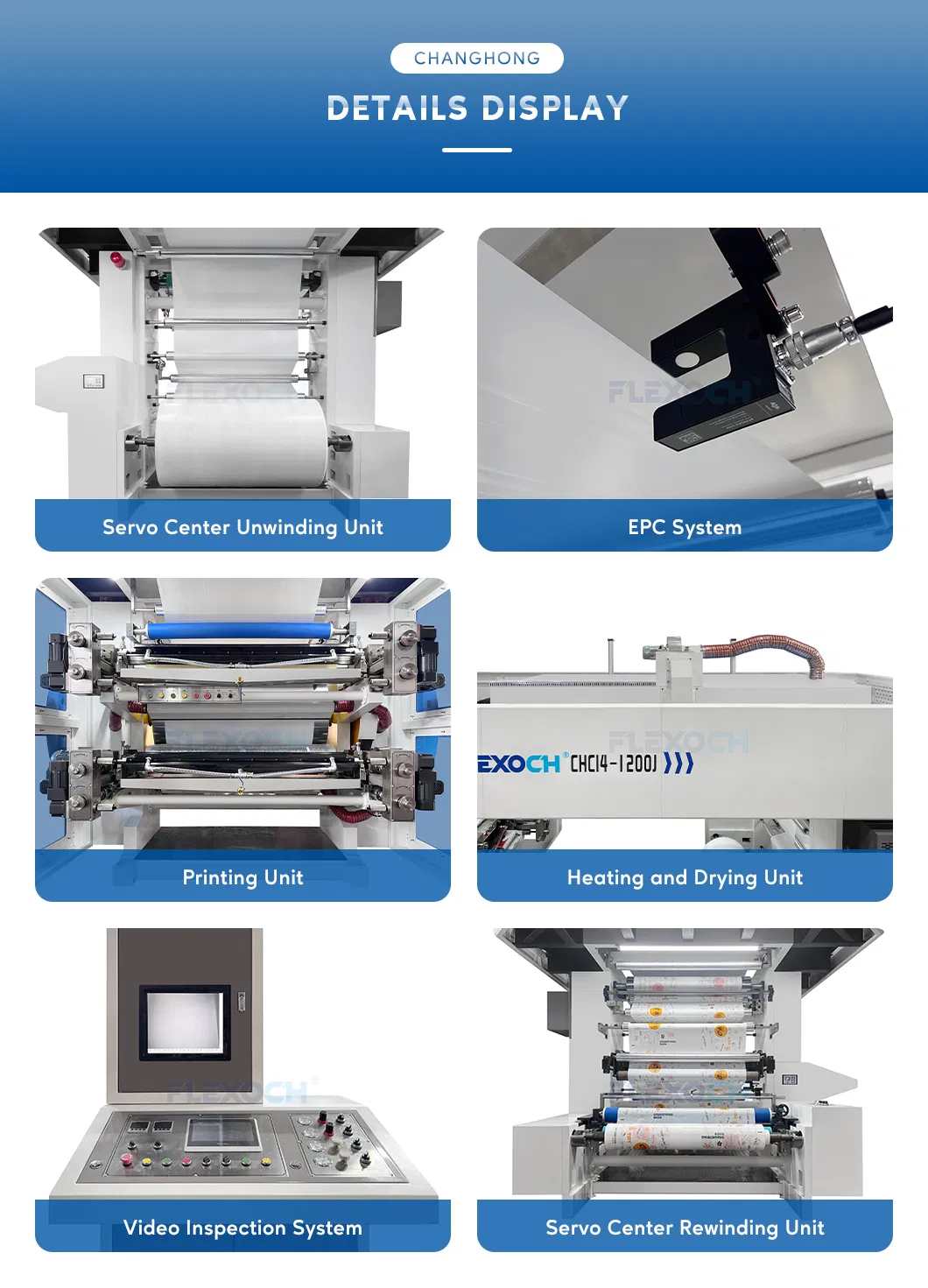

Product Gallery

Frequently Asked Questions

Q1: What types of materials can this CI flexo press handle?

Plastic films are the main focus — PE, BoPP, laminated films. If you're running food packaging, shopping bags, or labels, chances are the material you're already using will work fine on this press.

Q2: Can the CI flexo press use water-based inks?

Yes, it can. It can use both water-based and solvent-based inks. You don't have to choose just one system; the press can use either one, depending on what you need.

Q3: How easy is it to use and take care of the CI flexo press?

Everything is controlled by one panel, so operators don't have to look for settings in different parts of the machine. Daily maintenance is also easy, so it shouldn't take people off the line for long.

Q4: What is the production output of the CI flexo press?

Up to 250 m/min, and it holds that through full production shifts. For medium to large-scale film printing, the output is there — it's not just a spec sheet number.

Q5: What is the typical delivery time for this CI flexo press?

Somewhere in the 60 to 90 day range after the order is confirmed. Customization needs and production schedules can influence this timeframe.

Q6: Is technical support available after installation?

Remote support is the first call, and if that's not enough, on-site visits can be arranged. Support stays available after the press is up and running.
