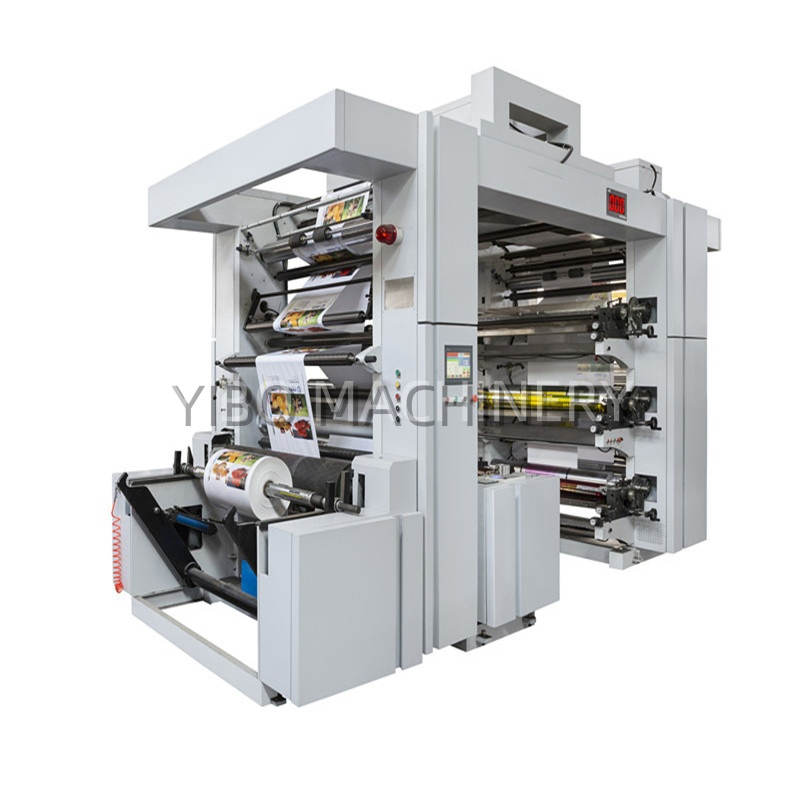

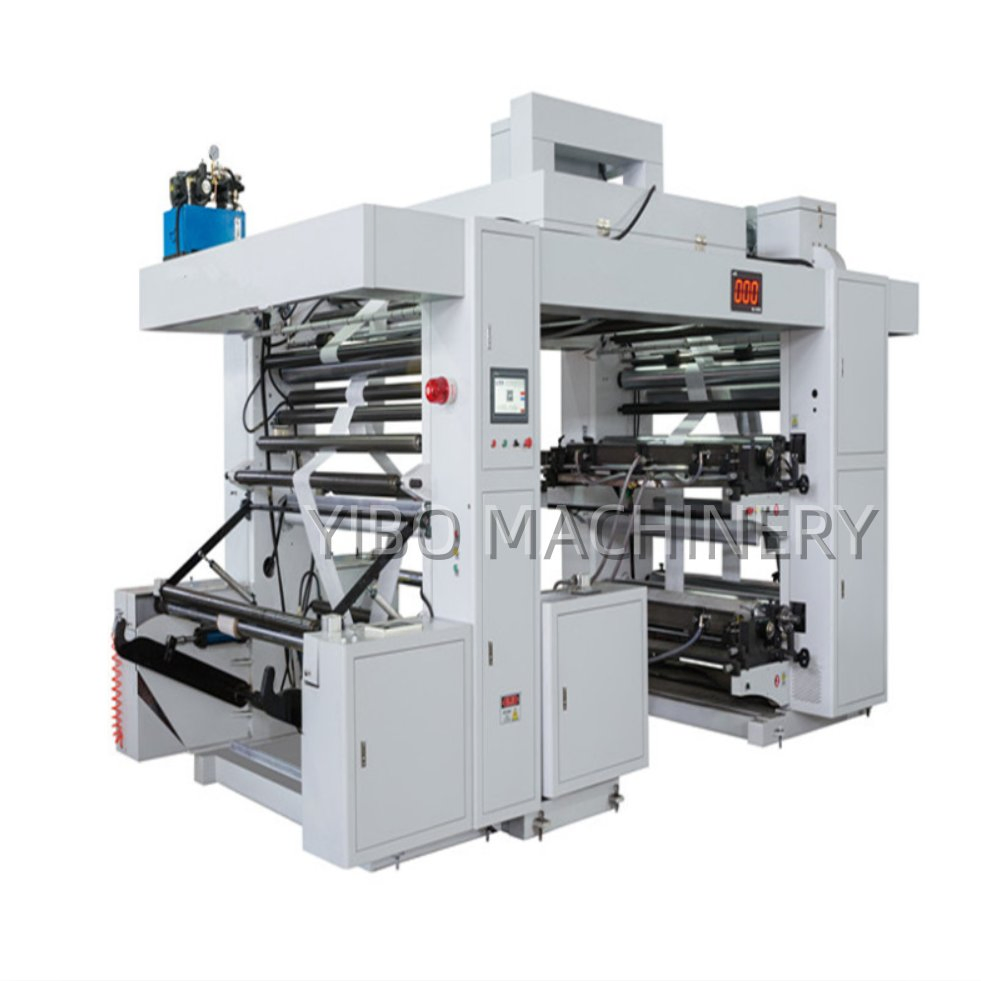

High Speed Multi Color Paper Cup/Paper Box/Paper Bag/Non-Woven Flexographic/Flexo Printing Machine
High Speed Multi Color Paper Cup/Paper Box/Paper Bag/Non-Woven Flexographic/Flexo Printing Machine
High Speed Multi Color Paper Cup/Paper Box/Paper Bag/Non-Woven Flexographic/Flexo Printing Machine
High Speed Multi Color Paper Cup/Paper Box/Paper Bag/Non-Woven Flexographic/Flexo Printing Machine
High Speed Multi Color Paper Cup/Paper Box/Paper Bag/Non-Woven Flexographic/Flexo Printing Machine
1 / 5
High Speed Multi Color Paper Cup/Paper Box/Paper Bag/Non-Woven Flexographic/Flexo Printing Machine
High Speed Multi Color Paper Cup/Paper Box/Paper Bag/Non-Woven Flexographic/Flexo Printing Machine
High Speed Multi Color Paper Cup/Paper Box/Paper Bag/Non-Woven Flexographic/Flexo Printing Machine
High Speed Multi Color Paper Cup/Paper Box/Paper Bag/Non-Woven Flexographic/Flexo Printing Machine
High Speed Multi Color Paper Cup/Paper Box/Paper Bag/Non-Woven Flexographic/Flexo Printing Machine

High Speed Multi Color Paper Cup/Paper Box/Paper Bag/Non-Woven Flexographic/Flexo Printing Machine

Customization: Available
After-sales Service: Online
Warranty: One Year
Send Inquiry

Product Description

Basic Information
Model NO. YB Printing Page Double Faced
Printing Color 8 Colors Anilox Roller Ceramic Anilox Roller
Dryer UV & IR Type Flexo
Structure Stacked Application Flexible Packaging Printing
Printing Speed 90m/min Max Material Width 600-1600mm
Control Method by PLC Machine Weight About 9200kg
Technical Parameters
1
Ink Roller: Ceramic anilox roller for precision ink transfer.
2
Ink System: Automatic circle system with independent small motor.
3
Timing: Frequency speed control for stable, low-fluctuation operation.
4
Tension Control: Magnetic powder tension control for unwinding and winding.
5
Doctor Blade: Chamber doctor blade and anilox roll system.
6
Plate Lifting: Automatic hydraulic pressure system for printing plate movement.
7
Traction Rollers: Semi-enclosed bearings with static and dynamic balance treatment.
8
Drying Device: Ventilation hair heating units with central temperature control.
9
Machine Body: Thick wall and base construction for maximum stability.
10
Control: Full PLC integrated control system.
Detailed Configuration Parameters
Printing Substrate Roll paper, plastic film, non-woven fabrics, and other flexible packaging materials.
Working Principle Unwind unit → Prepress correction → Prepress traction → Printing unit (6 color) → Heat drying → Rewind traction → Rewind unit.
Max Effective Width 770mm (for 800mm model)
Mechanical Speed 20-120m/min
Plate Thickness 2.28mm or 1.7mm (Customizable)
Ink Type Water based ink or Solvent ink
Power Supply 3P 380V 50HZ
Detailed Photos

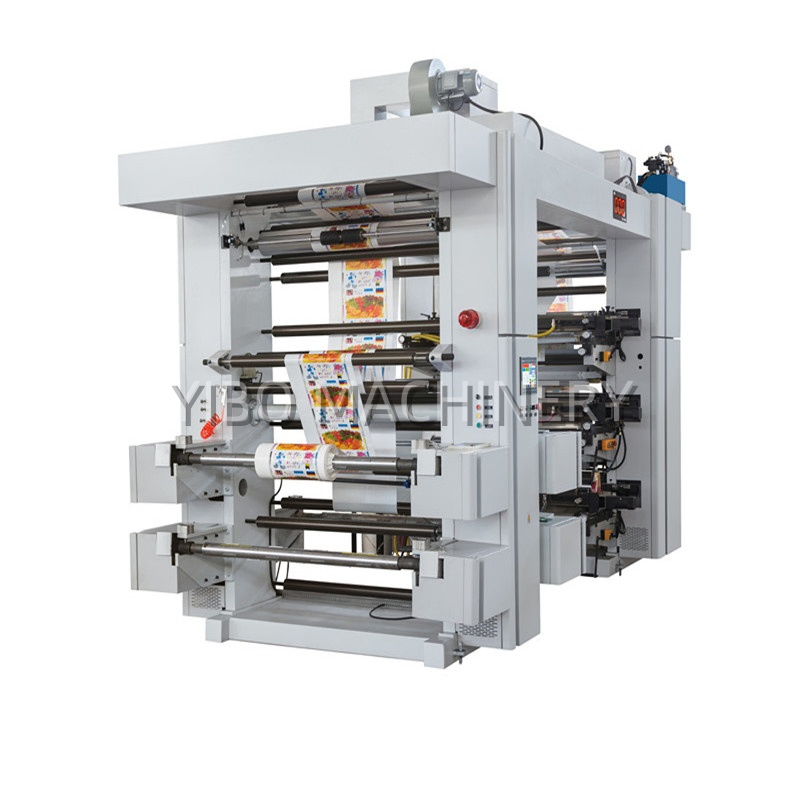

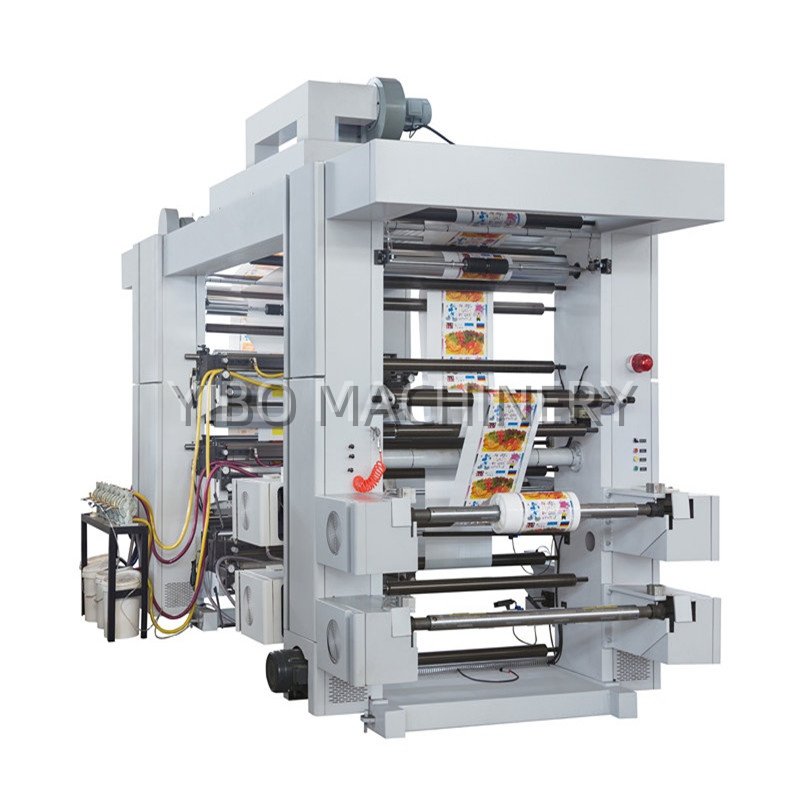

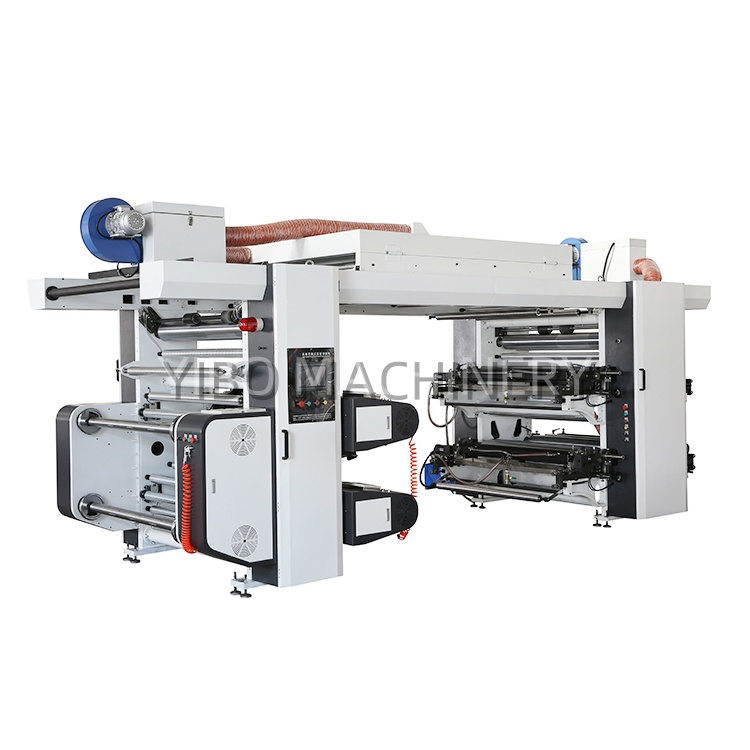

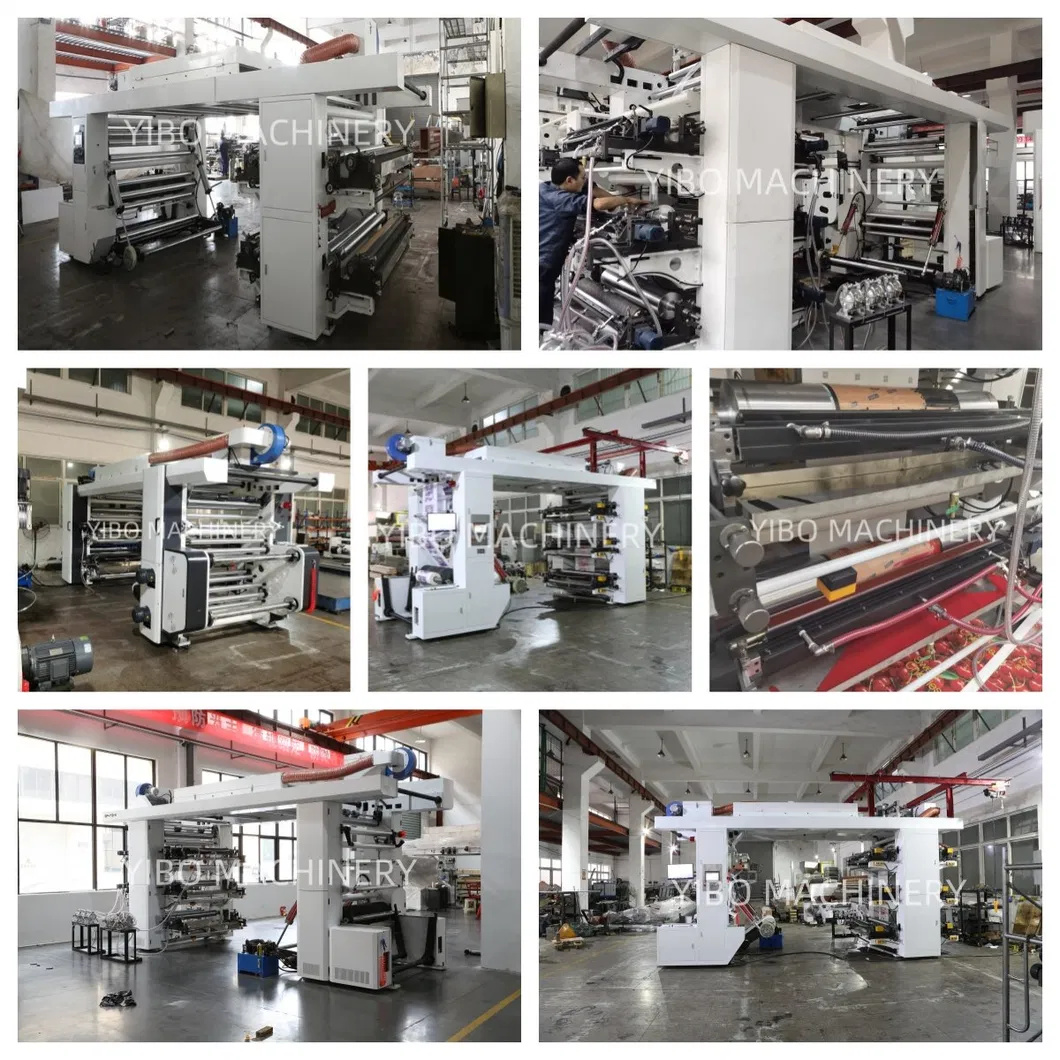

Detailed Machine Photo

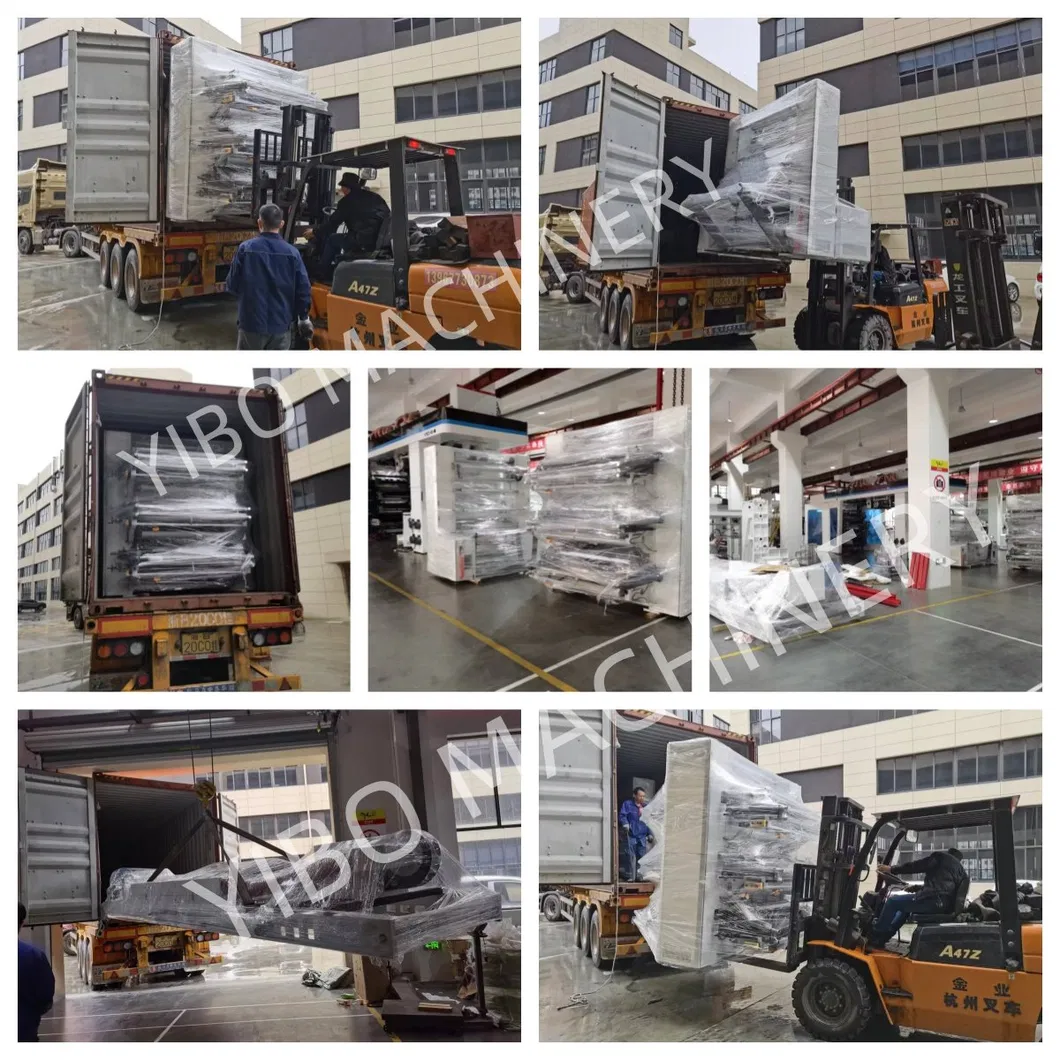

Packaging & Shipping
Packaging and Shipping
Package Size 1200cm * 800cm * 800cm
Gross Weight 1000.00kg
Client Cooperation
Client Site

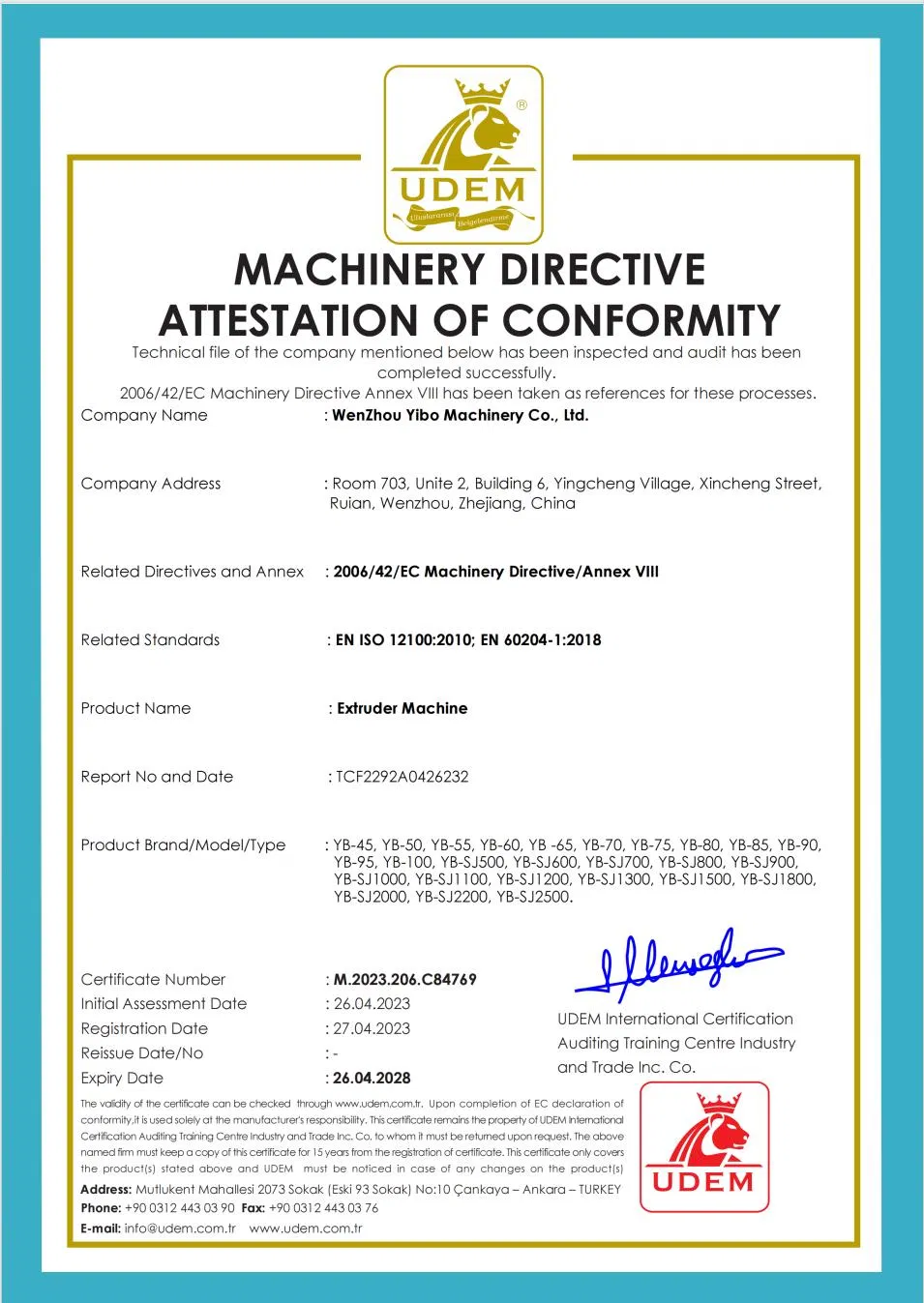

Client Production 1

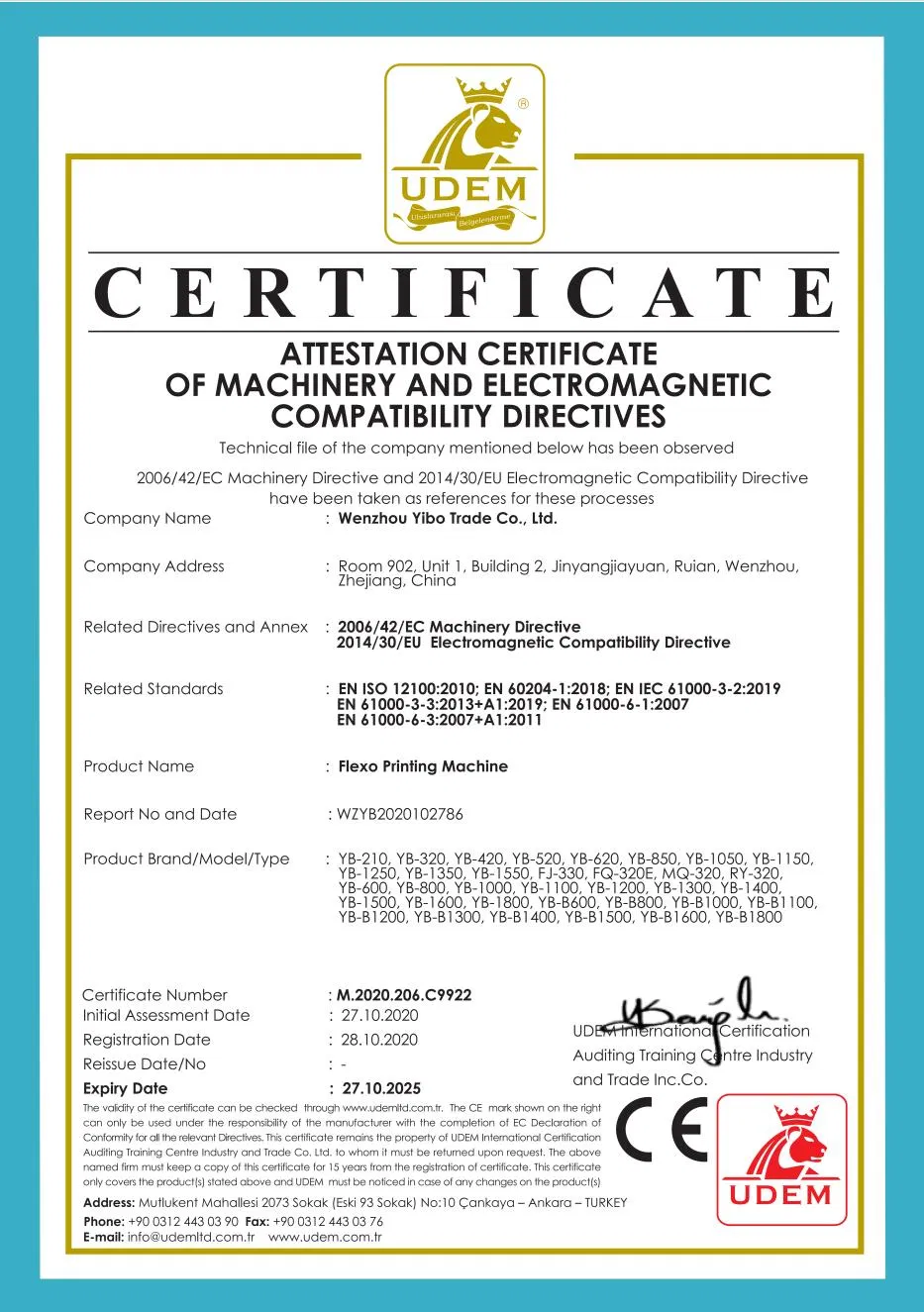

Client Production 2

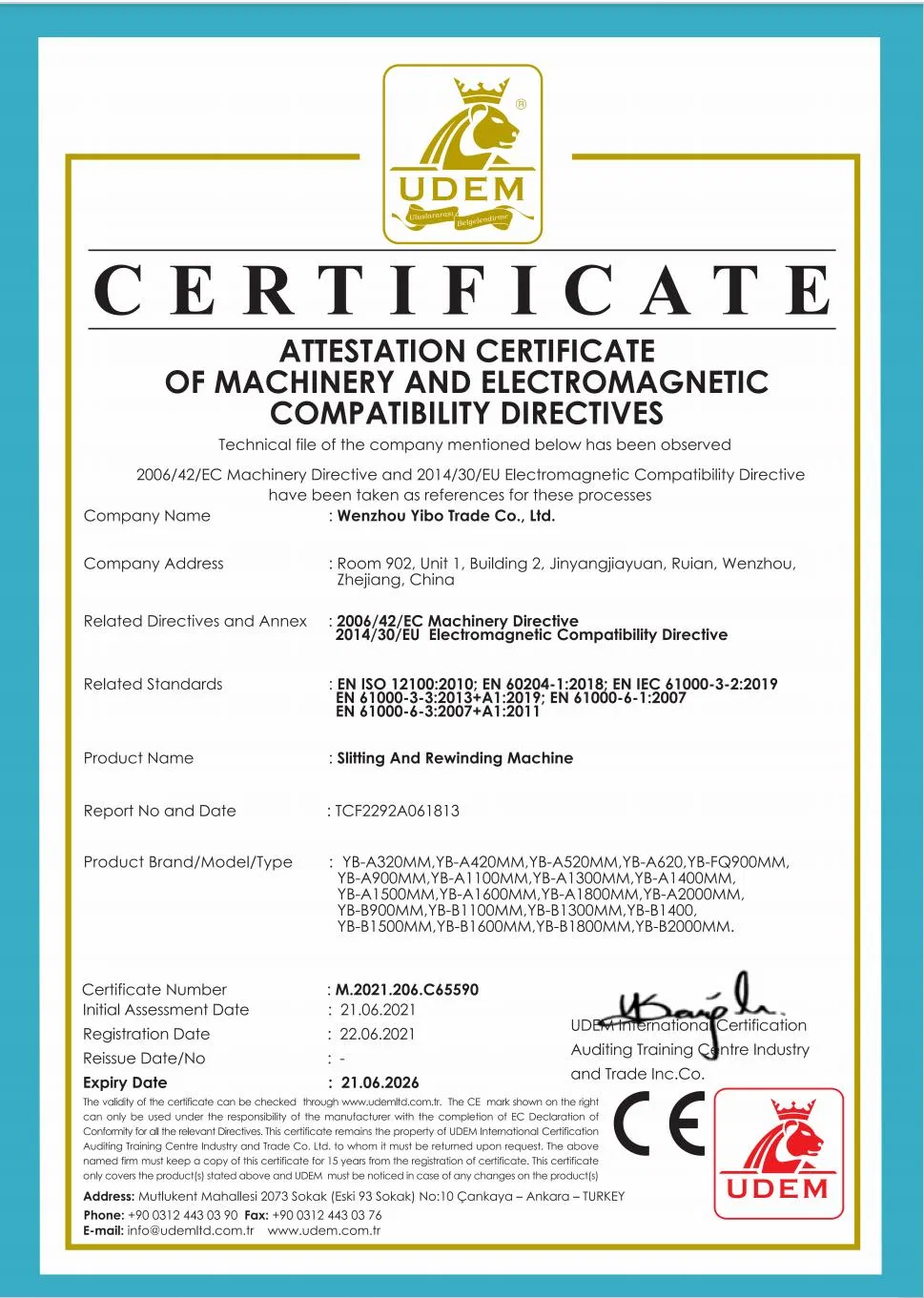

Client Production 3
Frequently Asked Questions
What materials can this flexo printing machine handle?
The machine is designed for flexible packaging materials, including roll paper, various plastic films, and non-woven fabrics.
What is the typical delivery time for an order?
Standard delivery details range from 30 to 60 days, depending on the specific configuration and requirements.
How is the machine packaged for international shipping?
We use professional packaging solutions such as wooden pallets or plastic film wrapping to ensure safety during transit.
What kind of technical support is provided for installation?
Engineers are available for international travel to assist with machine installation and setup at the buyer's location.
What is the warranty period for the equipment?
All machines come with a comprehensive one-year guarantee, which begins once the installation is successfully completed.
Which port is used for shipping?
Our standard shipping port is Ningbo Port, China.
