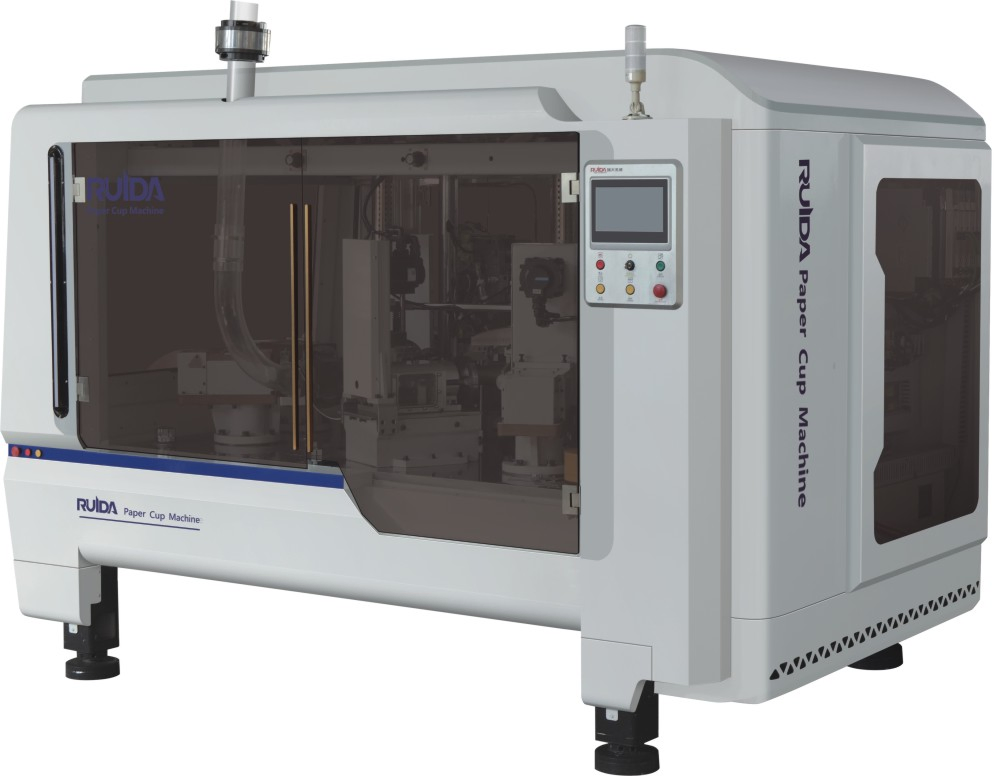

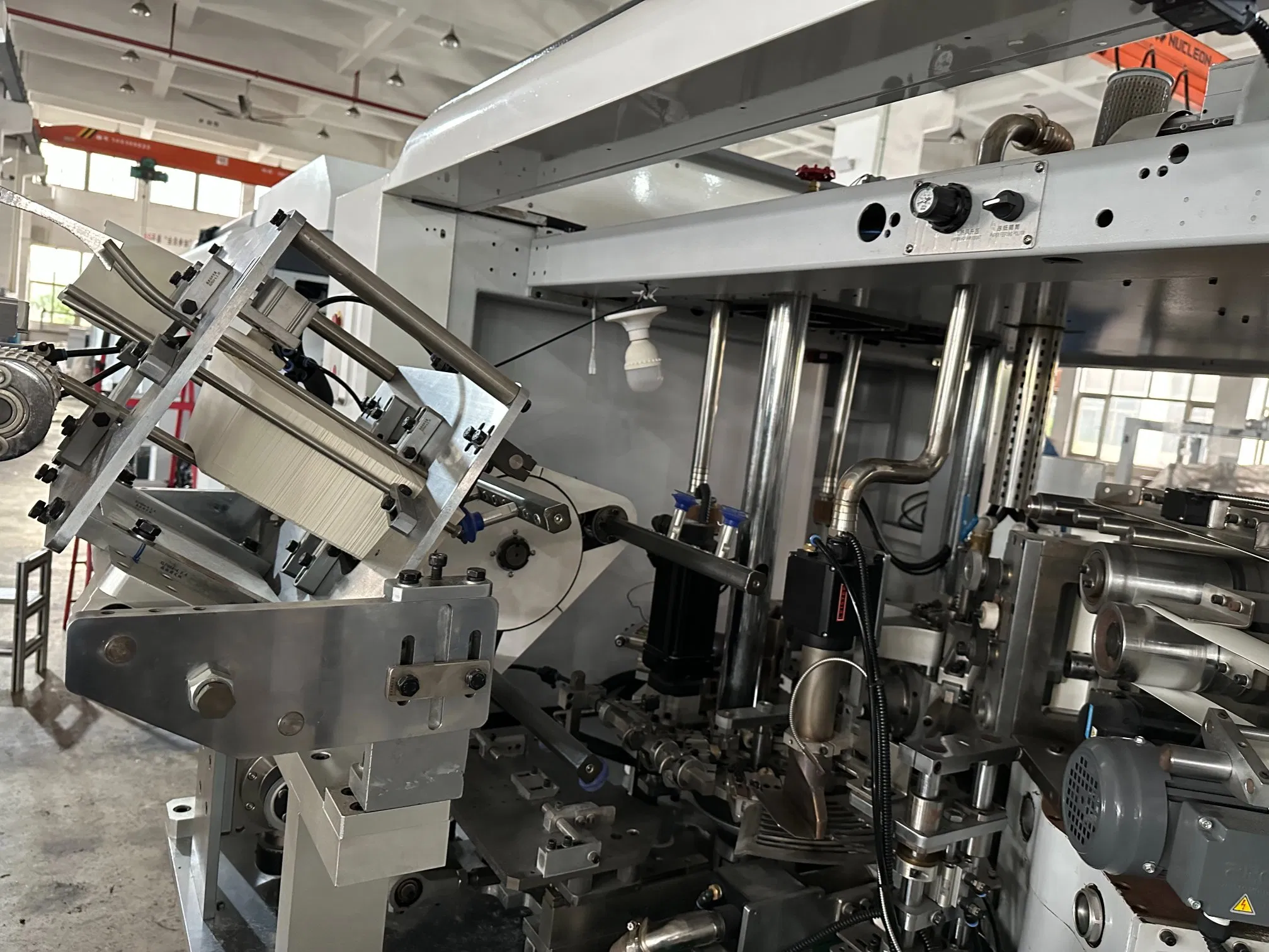

High Speed Paper Cup Forming Machine 230PCS/Min
High Speed Paper Cup Forming Machine 230PCS/Min
High Speed Paper Cup Forming Machine 230PCS/Min
High Speed Paper Cup Forming Machine 230PCS/Min
High Speed Paper Cup Forming Machine 230PCS/Min
1 / 5
High Speed Paper Cup Forming Machine 230PCS/Min
High Speed Paper Cup Forming Machine 230PCS/Min
High Speed Paper Cup Forming Machine 230PCS/Min
High Speed Paper Cup Forming Machine 230PCS/Min
High Speed Paper Cup Forming Machine 230PCS/Min

High Speed Paper Cup Forming Machine 230PCS/Min

Customization: Available
After-sales Service: 1 Year
Certification: ISO, CE
Send Inquiry

Product Description

ℹ️ Basic Information
Model NO.
RD-230A
Warranty
One Year
Condition
New
Processing Type
Forming Machine
Power
50 Kw
Gas Source
0.6m3/Min
Cup Size
6-22oz
Speed
200-230PCS/Min
Weight
7500kgs
Electricity
380V/220V
Cup Material
Single PE/Double PE Coated Paper
HS Code
84413090
⚙️ Product Description

RD-230A Horizontal High Speed Paper Cup Machine is one of our latest high-performance products. Operating at speeds of 200 to 230 cups/min, the entire system is controlled by PLC and servo motors, featuring photoelectric tracking monitoring and servo-driven paper blank feeding.

This machine is versatile, capable of producing cup sizes from 6oz to 22oz by changing molds. Its advanced horizontal structure significantly improves production stability and output efficiency.

High Speed Paper Cup Forming Machine
📊 Technical Specifications
ModelRD-230A
Cups Specifications6-22OZ
Cup Top Diameter60mm-100mm
Cup Height60mm-180mm
Cup Bottom Diameter40mm-75mm
Cups MaterialSingle PE/Double PE coated paper
Paper Specifications170-350g/m2
Speed200-230 pcs/min
Weight7500kg
Gas Source0.6m3/min
General Power50Kw
Power Supply220v/380v, 50Hz
Cup UseRound paper cups, drinking, noodle, vending cups, ice-cream, and food containers.
🖼️ Machine Details & Gallery
Machine Detail 1
Machine Detail 2
Machine Detail 3
Machine Detail 4
📦 Packaging & Shipping

All machines are packed in seaworthy wooden cases to ensure safety during transit. Shipping options include sea or air freight, according to customer requirements.

🛠️ Our Services

We provide comprehensive technical support including:

  • Technician dispatch for on-site installation and commissioning.
  • Machine adjustment and optimization.
  • Worker training at the buyer's plant.

*Note: The buyer is responsible for costs including round-trip airfare, accommodation, food, and technician salary during the service period.

❓ Frequently Asked Questions
1. What is the maximum production speed of the RD-230A?
The RD-230A is a high-speed machine capable of producing between 200 and 230 paper cups per minute, depending on the material and cup size.
2. What range of cup sizes can this machine handle?
The machine is designed to produce a wide range of round paper cups from 6oz to 22oz. Mold changes allow for different specifications within this range.
3. What types of paper material are compatible?
The RD-230A works efficiently with both Single PE and Double PE coated paper, with a paper weight range of 170-350g/m2.
4. How is the machine controlled for precision?
The machine utilizes a PLC control system combined with servo motors and photoelectric tracking to ensure high precision in feeding and forming.
5. Does the machine support double-sided PE coating?
Yes, the machine is fully compatible with both single and double PE coated paper, making it suitable for both hot and cold drink cups.
6. What kind of after-sales technical support is available?
We offer global technical support, including the dispatch of engineers for installation, machine calibration, and staff training at your facility.
