150PCS High Speed Paper Cup Making Machine China Factory

Product Overview

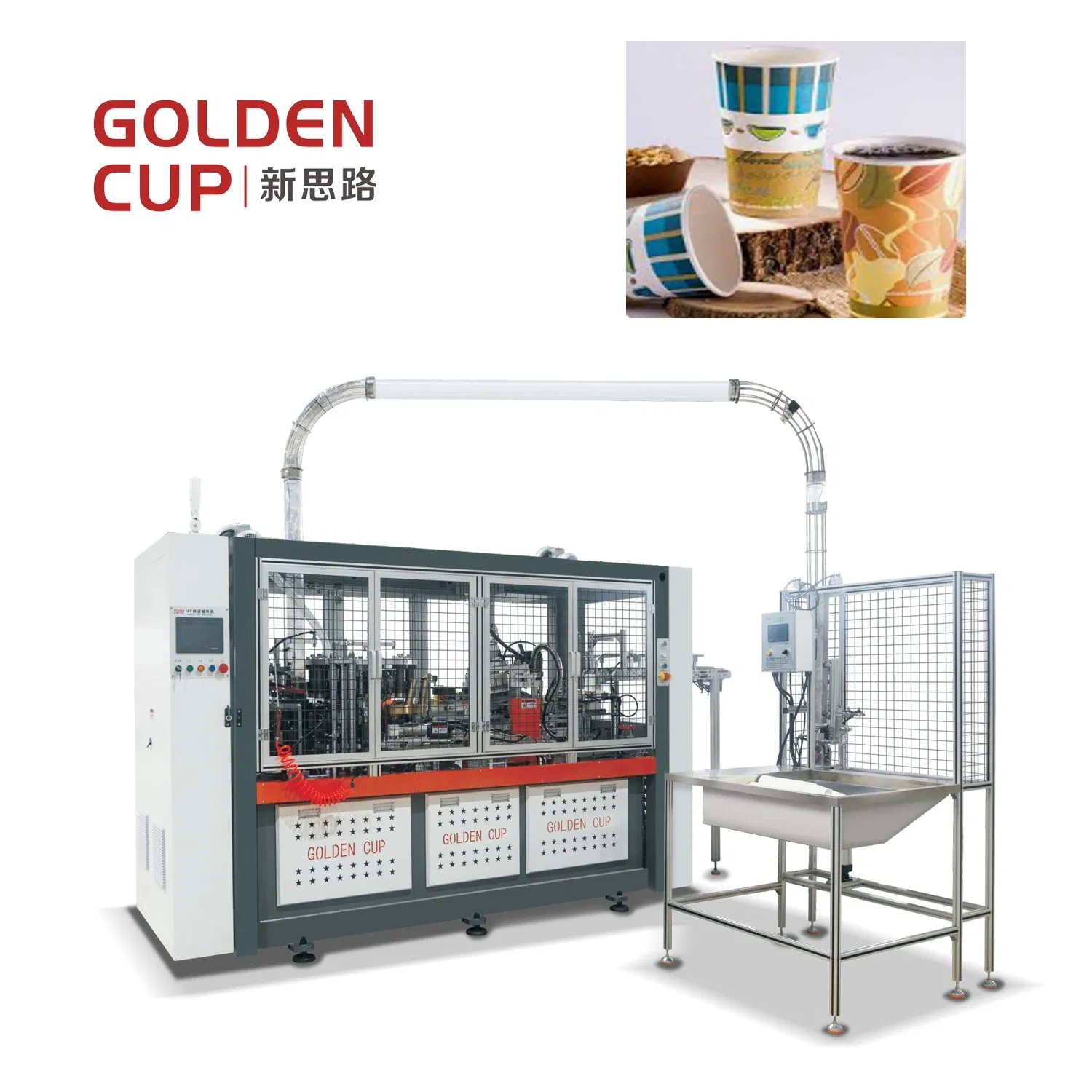

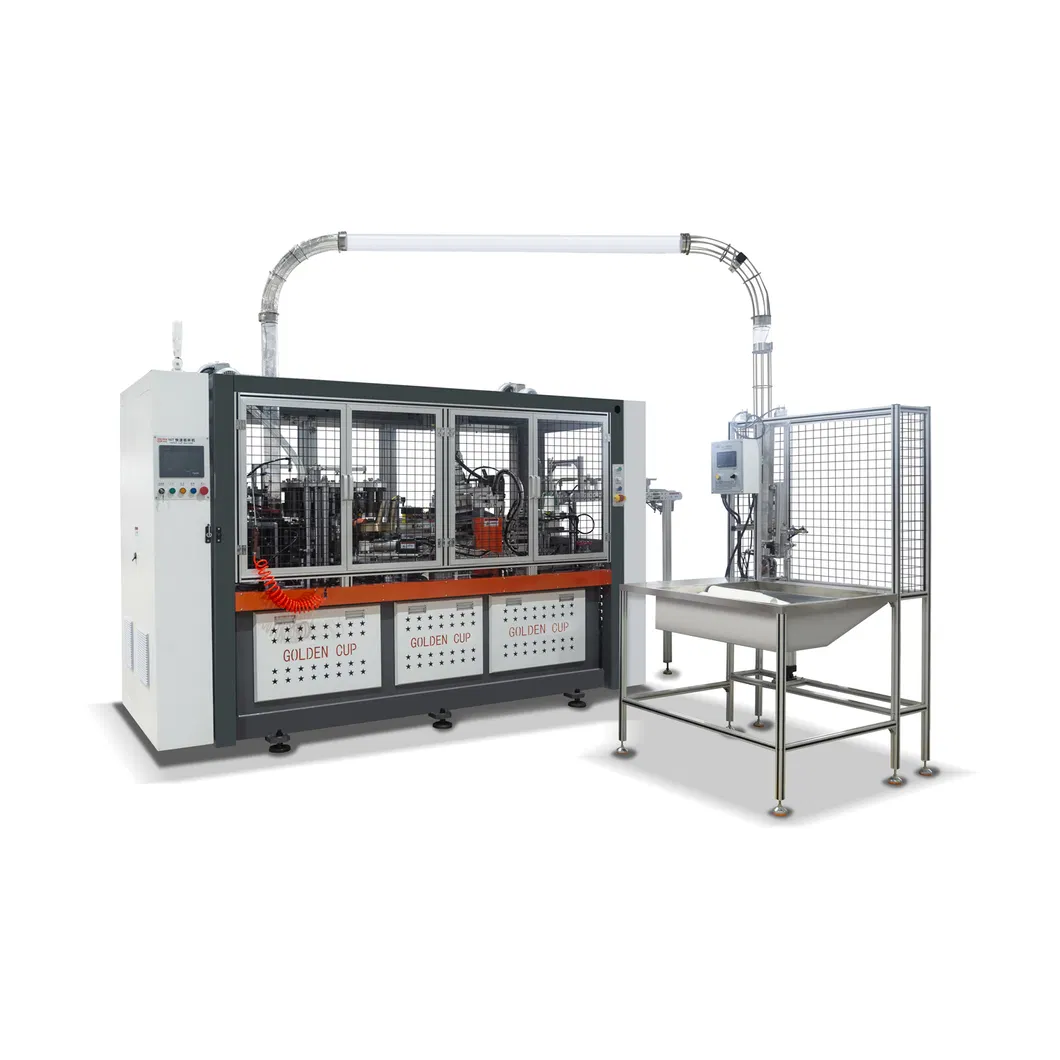

The XSL-16T High Speed Paper Cup Machine utilizes a tabletop layout, effectively isolating the forming parts from the transmission components. This advanced design ensures a clean and efficient production environment.

All transmission parts utilize a longitudinal shaft, barrel indexing cam, and gear transmission, lubricated by a specialized spray system for longevity and smooth operation. Controlled by a high-precision PLC, the entire process is monitored by photoelectric sensors with servo feeding for maximum accuracy.

⚙️

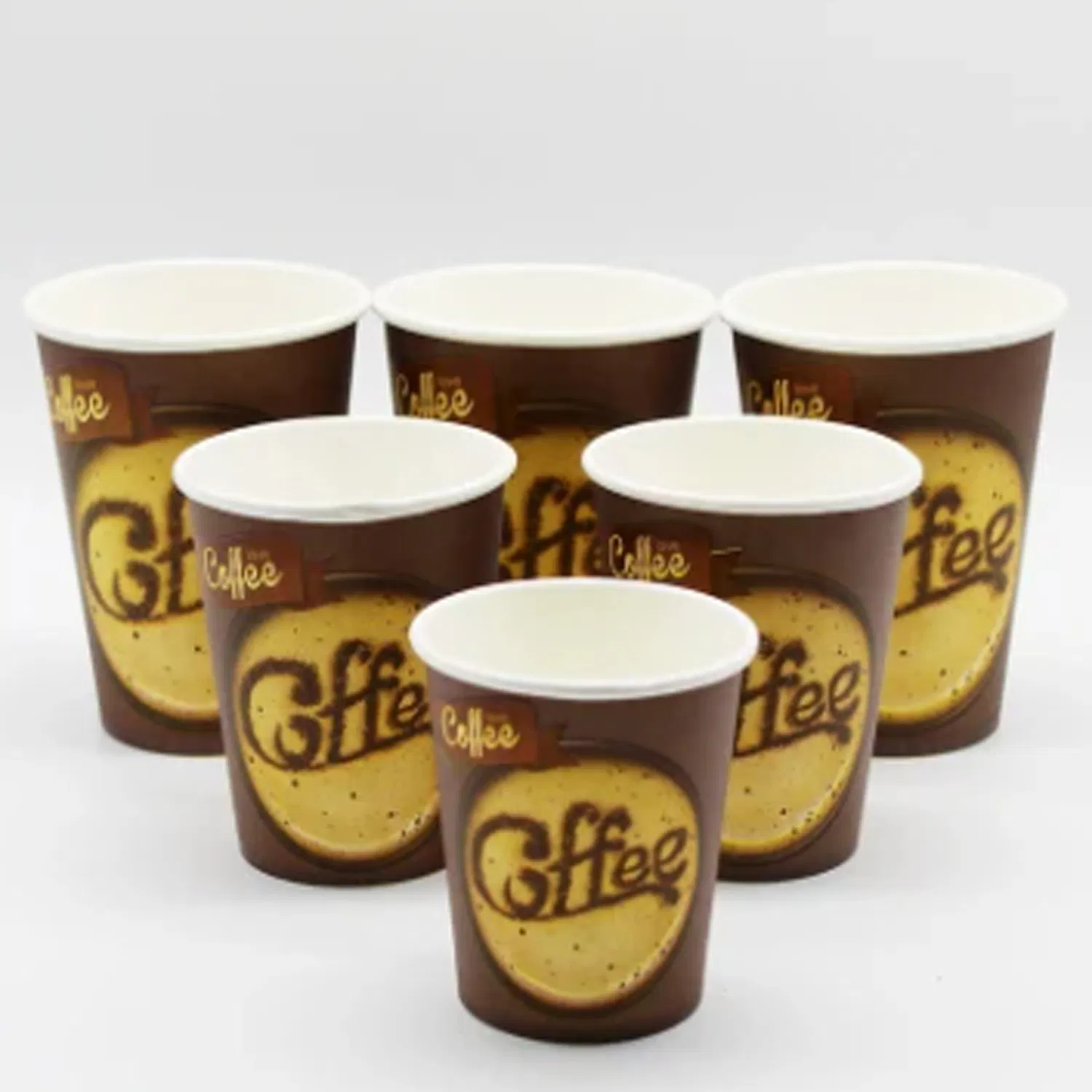

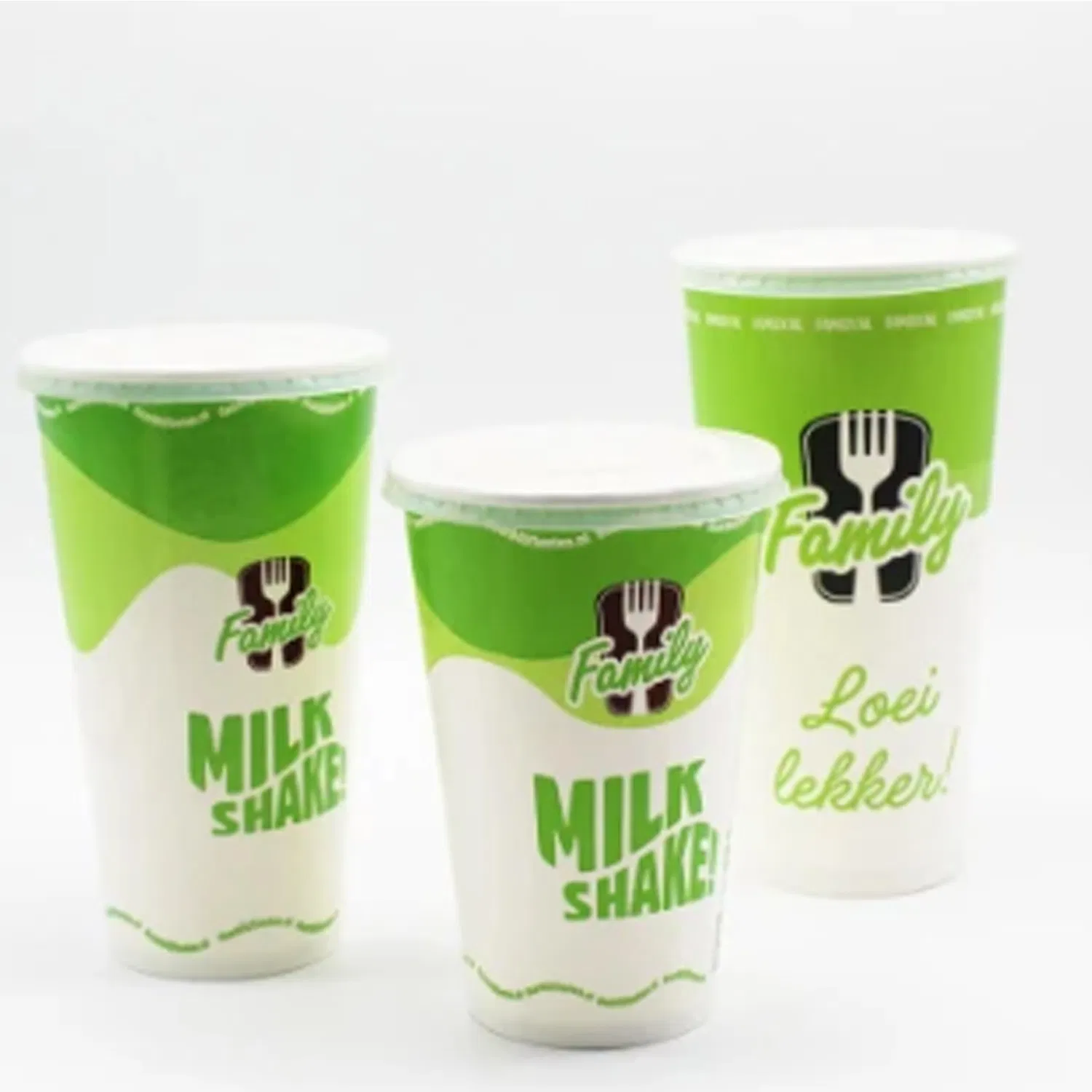

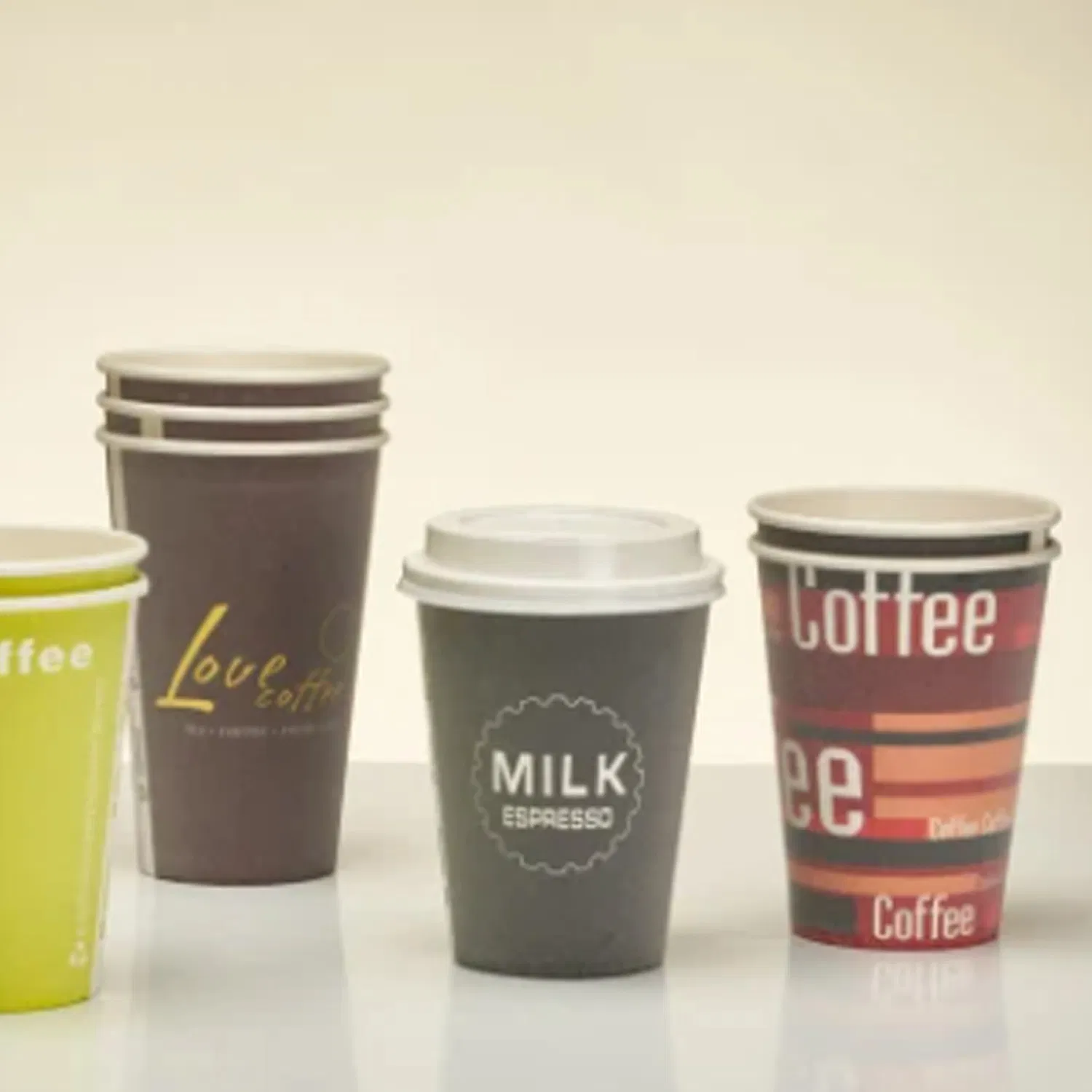

Production Range: Suitable for producing 4-16 OZ cold and hot drink cups.

⚡

High Speed: Stable production rates of 120-150 pieces per minute.

🛡️

Quality Control: Optional visual inspection system to automatically reject disqualified cups.

Technical Specifications

Parameter	Details
Model	XSL-16T High Speed Paper Cup Machine
Suitable Cup Size	Top: 60-95mm \| Bottom: 40-75mm \| Height: 50-135mm
Production Speed	120-150 pcs/min
Paper Requirement	170-380gsm single/double PE paper / PLA / Water-based
Power Supply	3 Phase, 380V, 50Hz, 21KW
Air Consumption	0.6-0.8m³/min
Machine Weight	3600 Kgs
Machine Dimensions	3700 * 1300 * 2060 mm

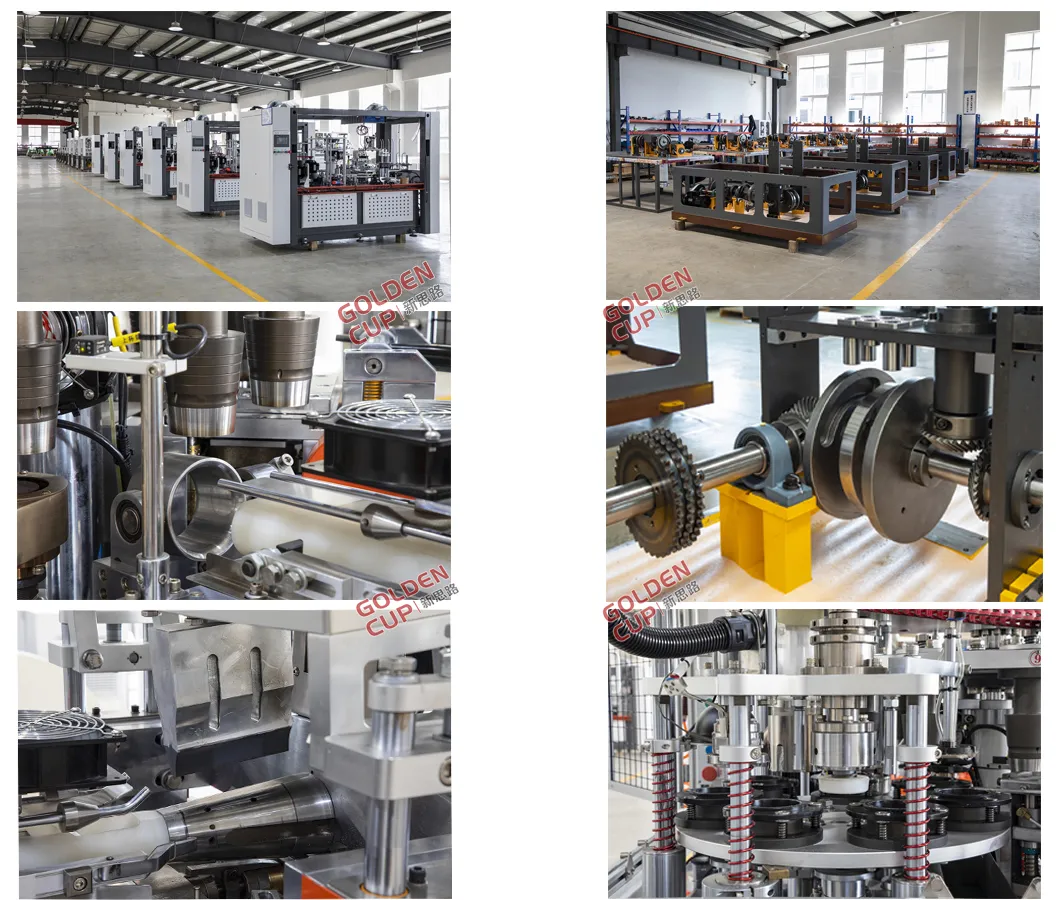

Machine Detailed Showcase

Our equipment features high-quality international brand components and precision-engineered molds to ensure stability and durability.

Packaging & Shipping

All machines are securely packed in heavy-duty wooden cases to ensure safe international transit.

Frequently Asked Questions

What is the production range of this machine?

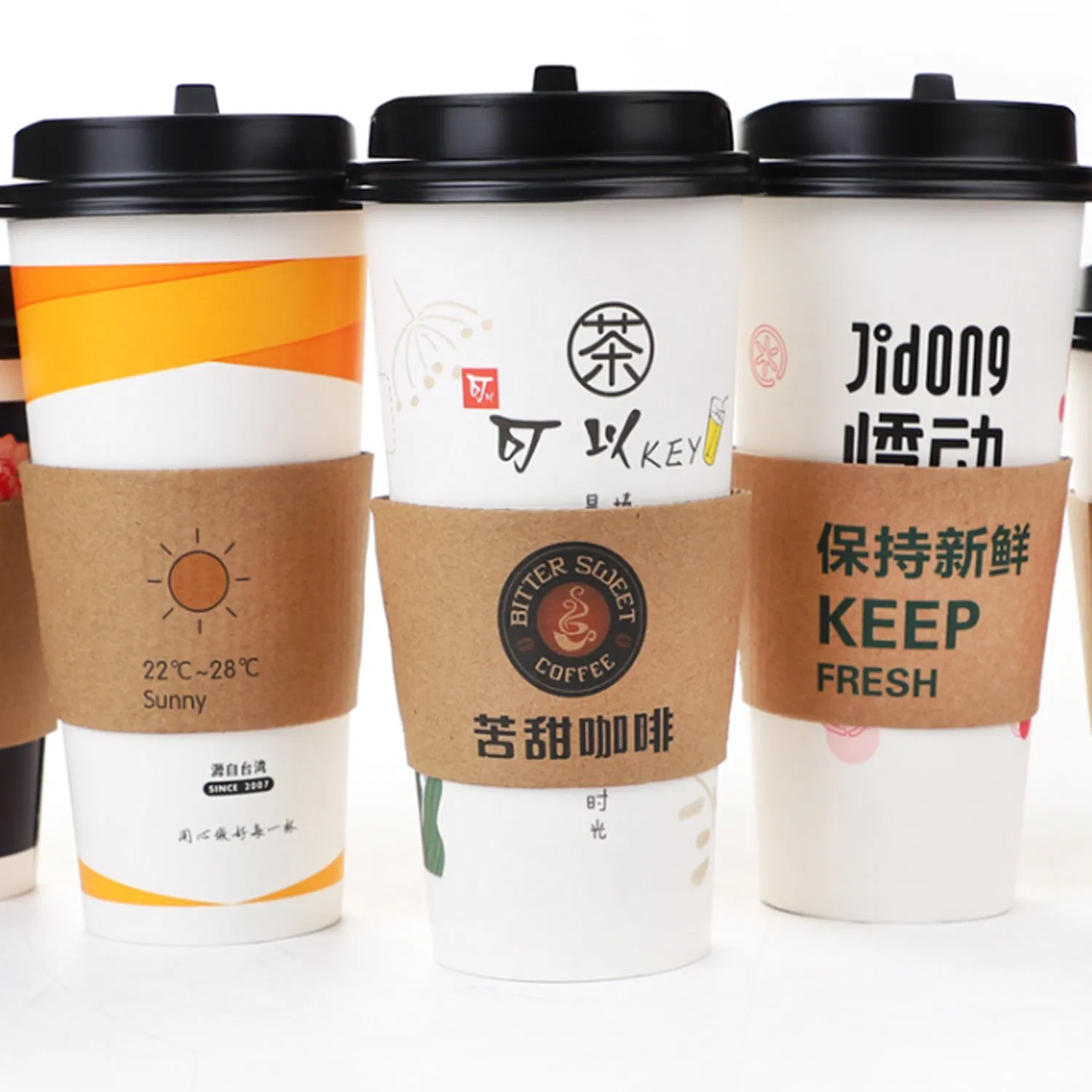

The machine can produce various sizes from 4oz to 32oz (using different molds and machines). This includes coffee cups, tea cups, ice cream cups, and salad bowls.

How fast can the XSL-16T produce cups?

The standard production speed is 120-150 pieces per minute, depending on the cup size and paper weight used.

What are the payment and delivery terms?

Standard terms require a 30% advance payment, with the balance due before delivery. The delivery time for standard machines is generally 45 working days after receiving the deposit and drawing confirmation.

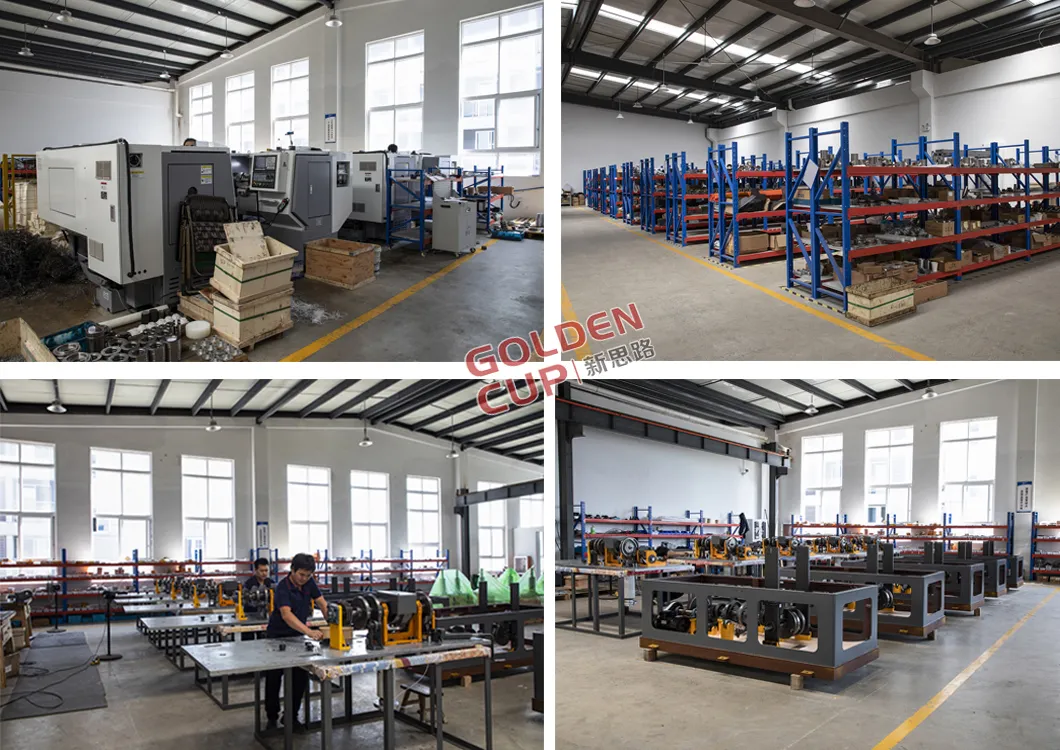

How do you ensure machine quality before shipping?

Once the machine is finished, professional engineers conduct a full test. We can send samples to the customer for quality checks, and we ensure all mechanical equipment meets specified technical requirements before shipping.

What is your after-sales service and warranty?

The machine comes with a 3-year warranty for the cam transmission parts and a 1-year warranty for electrical components. We provide lifetime maintenance services, including video support and remote technical assistance.

Do you provide installation and training?

Yes, our specialists can finish installation and labor training within 3 working days per machine. Customers are responsible for travel expenses, accommodation, and a daily salary for the engineer.
