S180 High Speed Paper Cup Forming Machine Price

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

■

Basic Information

Model NO.	S180
Cup Size(Ounce)	2-12OZ
Speed	130-150
Required Paper	Single and Double Side PE Coated Paper
Automation	Automatic
Logo Printing	With Logo Printing
Certification	CE
Customized	Customized
Condition	New
After-sales Service	12 Months
HS Code	8441400000 / 8441309000
Curling	Two Times
Hot Air	Yes
Transport Package	Wooden Box by Sea
Specification	2200mm1350mm1900mm
Production Capacity	1500sets/M

■

Packaging & Delivery

Package Size	220.00cm * 135.00cm * 190.00cm
Package Gross Weight	2500.000kg
Port of Shipment	Ningbo Port, P. R. China
Transportation	By sea

■

Product Description

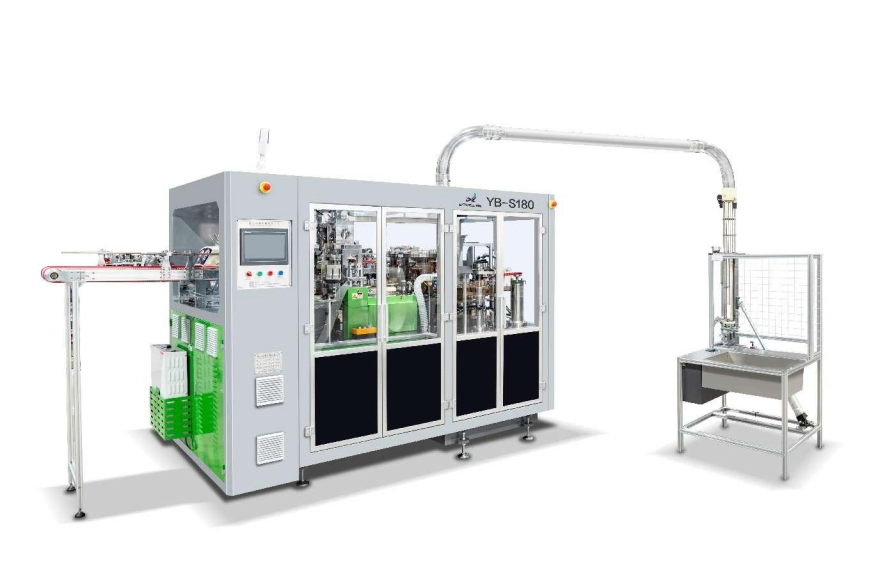

YB-S180 Paper Cup Forming Machine

S180 High Speed Paper Cup Forming Machine

The high-speed paper cup forming machine offers high performance, efficiency, and quality. The overall steel plate body and oil-draining lubrication system ensure long-term stable operation. Advanced high-precision cam drive and gear transmission make each station accurate. Servo motor tracking bottom feeding paper locks the size of bottom paper, effectively saving raw materials. The Human-machine interface PLC system controls the operation of the whole machine, while the automatic counting cup collection table reduces manual labor.

■

Main Technical Specifications

Model	MG-G800
Paper Cup Specification	2-16oz (100-450ml) (mold exchangeable) Top: 40-90mm \| Height: 60-135mm \| Bottom: 30-70mm
Paper Specification	150-350 GSM single/double PE coated paper
Production Capacity	130-150 pcs/min
Power Source	380V 50HZ 3Phases
Average Power	15KW
Air Supply Requirement	Compressed air: 0.6-0.8Mpa
Total Weight	3100KG

■

Machine Configuration

Component	Brand
Air switch	Zhengtai
Ac contactor	Schneider
Solid-state relay	Yangming
Relay	Omron
Ultrasonic wave	Even green
Open light supply	Mingwei
PLC / Screen / Servo motor	Delta
Frequency changer	Delta

*Note: Configurations are subject to the latest design and technology improvements without notice.

■

Machine Details & Features

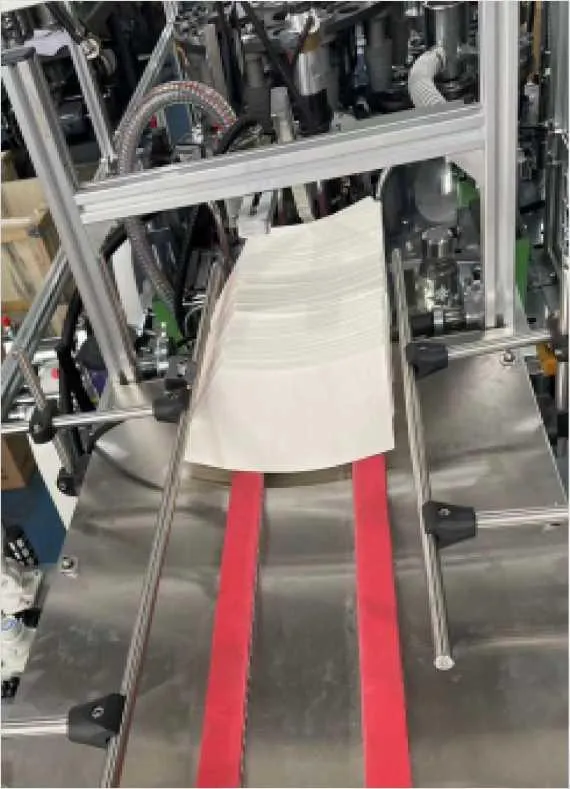

1. Added automatic paper feed device greatly reduces manual work, allowing one worker to monitor multiple devices.

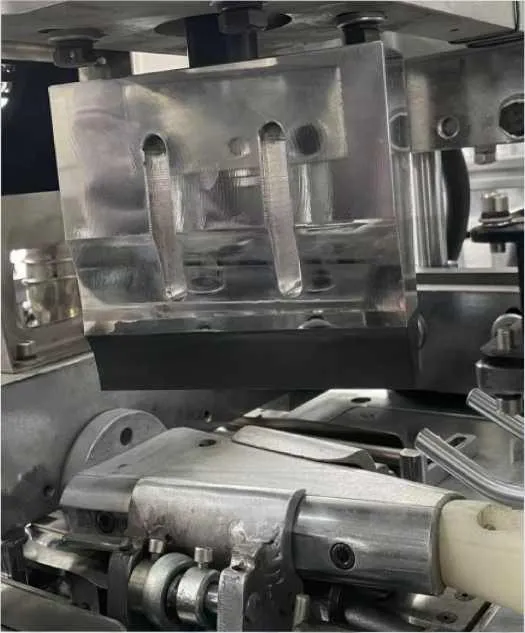

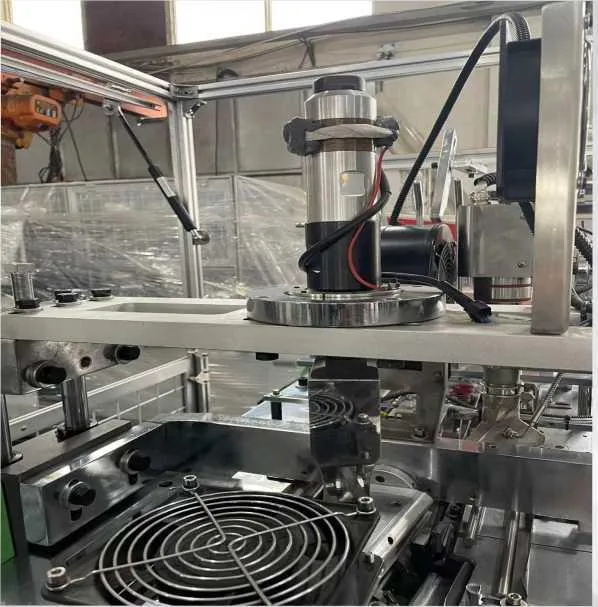

2. Ultrasonic sealing for paper cup body sleeve on horizontal forming molds. Includes four times heating in one machine.

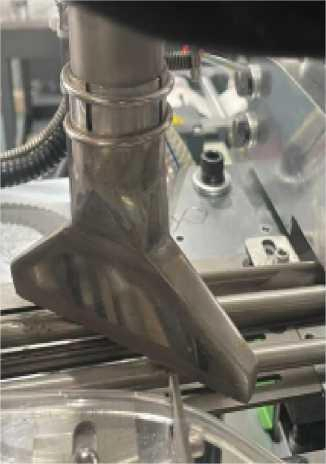

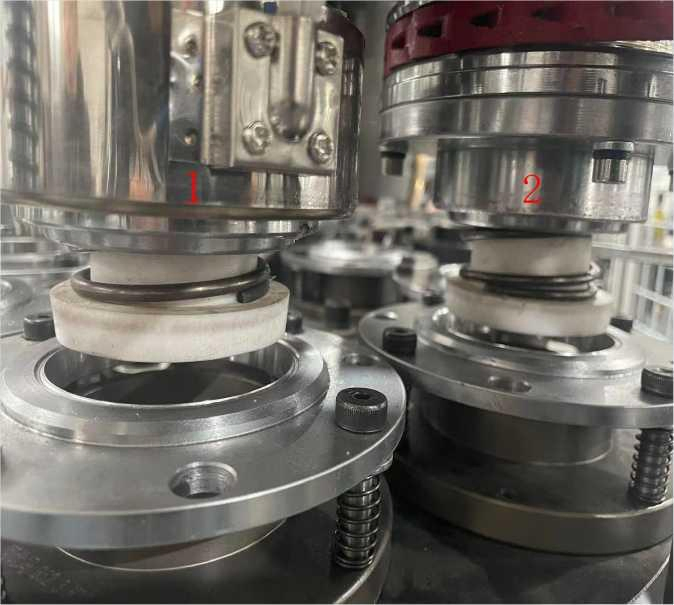

3. Advanced bottom sealing: After hot air gun heating and inward pre-folding, the bottom is sealed by an embossing device.

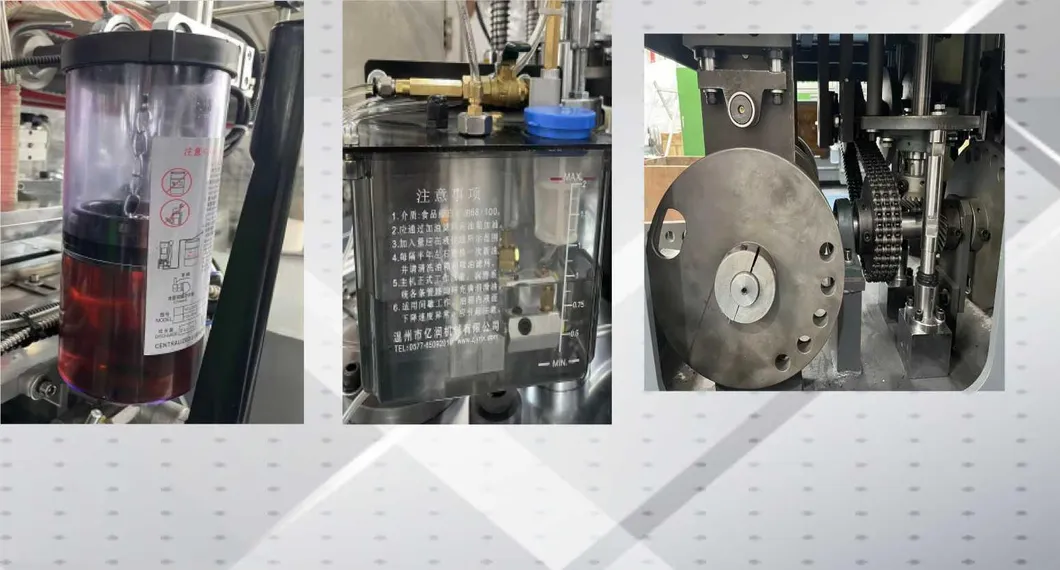

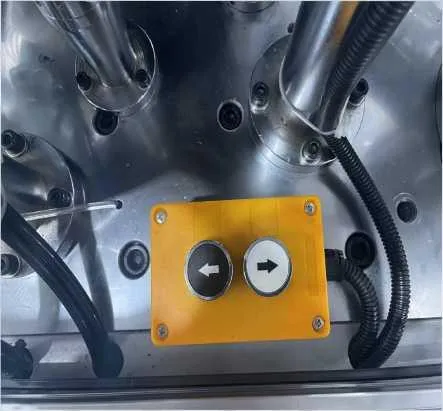

4. Control & Lubrication: Three control buttons around the machine for easy access. Automatic oil circulation system improves part service life.

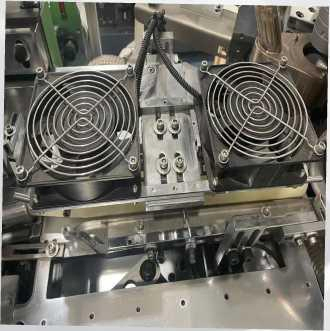

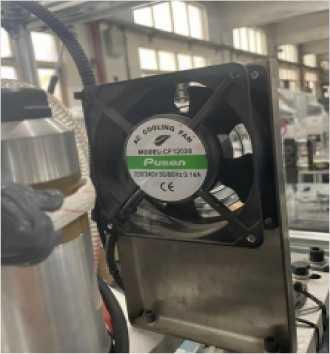

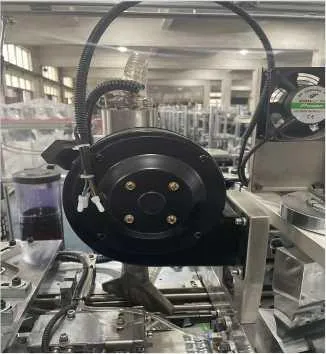

5. Multiple cooling fans keep the machine in optimal condition during high-speed operation.

■

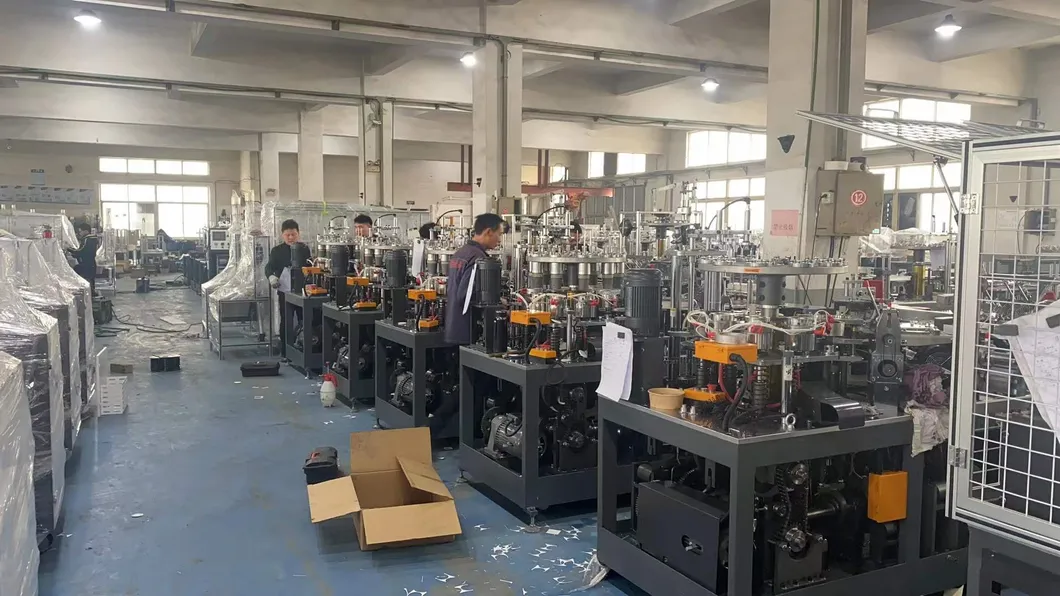

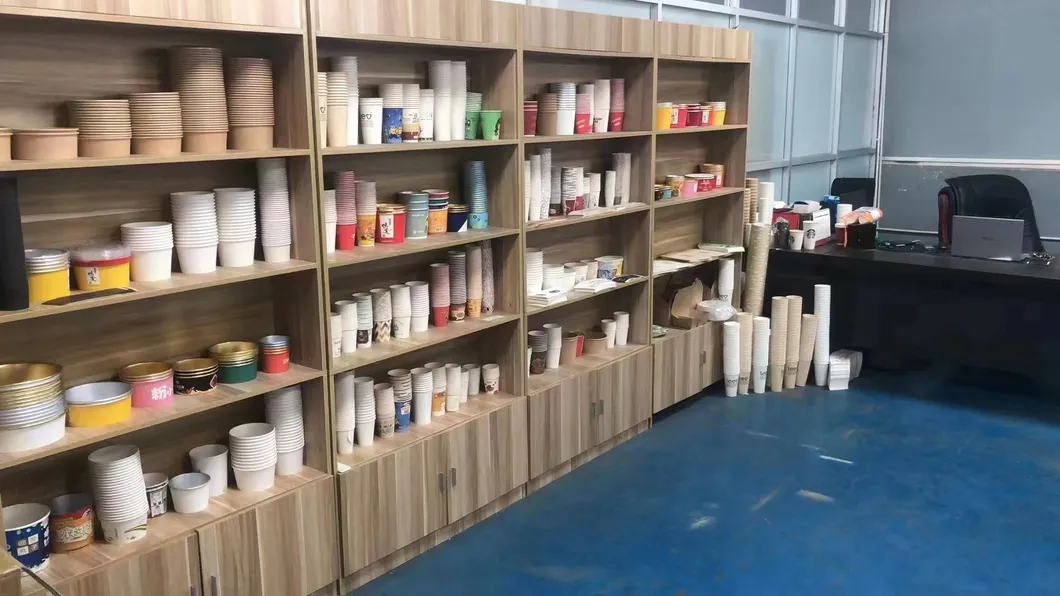

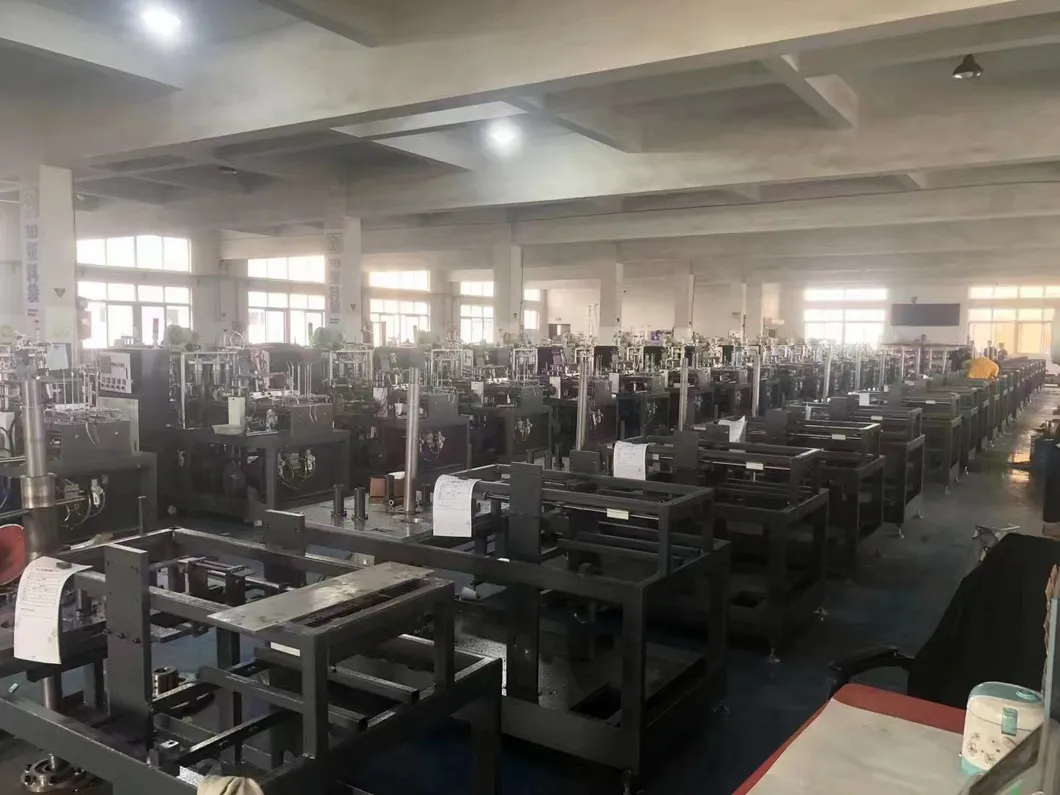

Workshop Display

Frequently Asked Questions

Q1: What is the maximum production speed of the S180 machine? A: The machine operates at a high speed of 130 to 150 pieces per minute.

Q2: What range of paper cup sizes can this machine produce? A: It is designed to produce paper cups ranging from 2oz to 12oz (with some models supporting up to 16oz via mold exchange).

Q3: What type of paper material is required for operation? A: The machine is compatible with both Single and Double Side PE Coated Paper, typically between 150-350 GSM.

Q4: How does the automatic lubrication system benefit the machine? A: The automatic oil circulation system ensures all gear components operate smoothly, which significantly improves the service life of parts during high-speed runs.

Q5: What is the warranty period for the S180 forming machine? A: The standard warranty period is 13 months, starting from the ocean shipping date.

Q6: Does the machine require an external air supply? A: Yes, it requires compressed air with a pressure range of 0.6-0.8Mpa.
