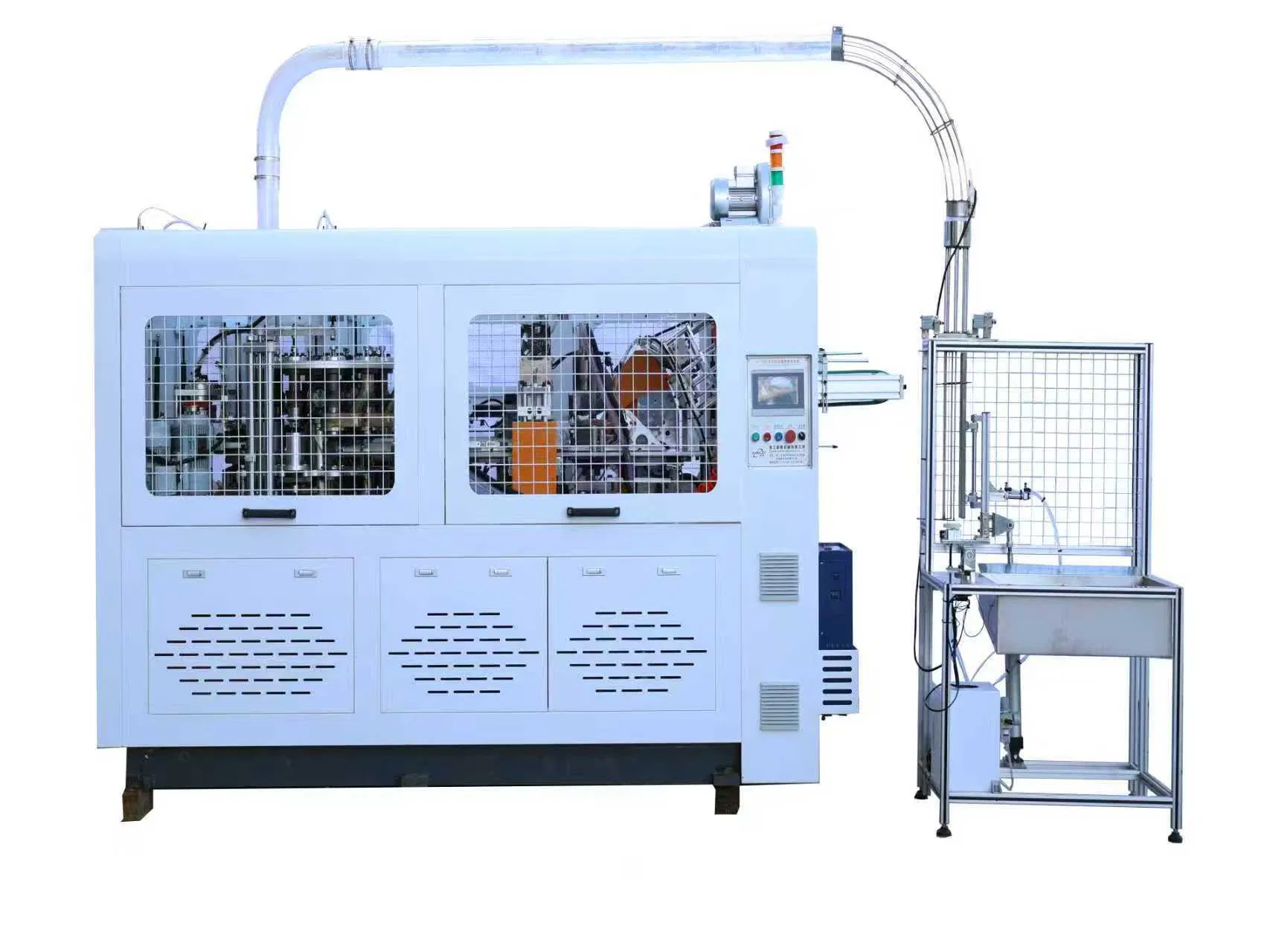

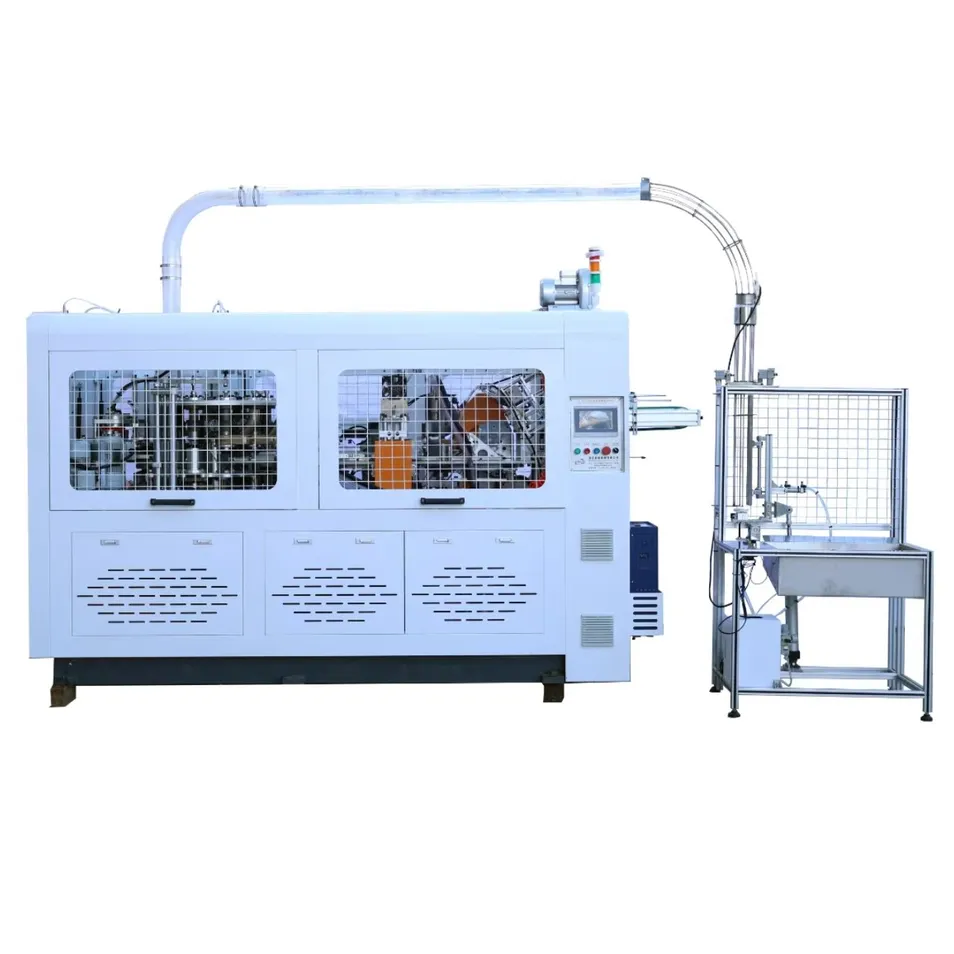

XL-160s High Speed Disposable Paper Cup Forming Machine

Customization:	Available
Warranty:	1 Year
Applicable Objects:	Beverage

📊 Basic Information

Model NO.	XL-160s
Cup Size	5-16oz
Speed	120-160PCS/Min
Required Paper	Single and Double Side PE Coated Paper
Automation	Automatic
Logo Printing	With Logo Printing
Certification	CE
Weight	4000kgs
Power Supply	3 Phase 380V
Paper Weight	210-330GSM
Dimensions	2800mm x 1100mm x 1800mm
Origin	China
Production Capacity	100/Month

⚙️ Product Description

XL - 160S High-Speed Intelligent Paper Cup Machine

XL-160s High Speed Disposable Paper Cup Forming Machine

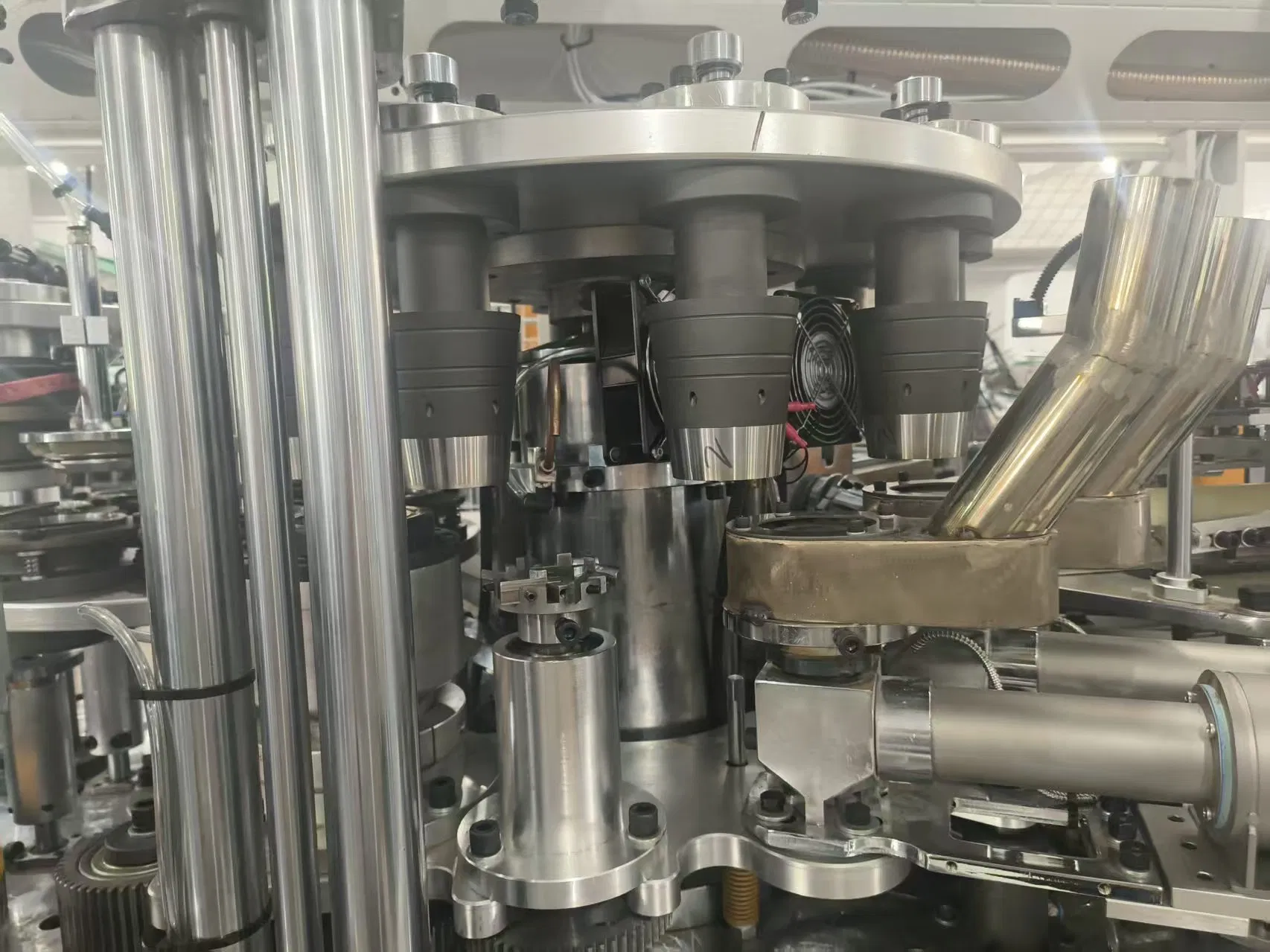

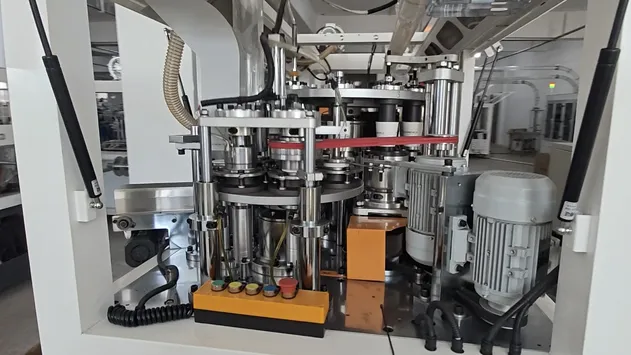

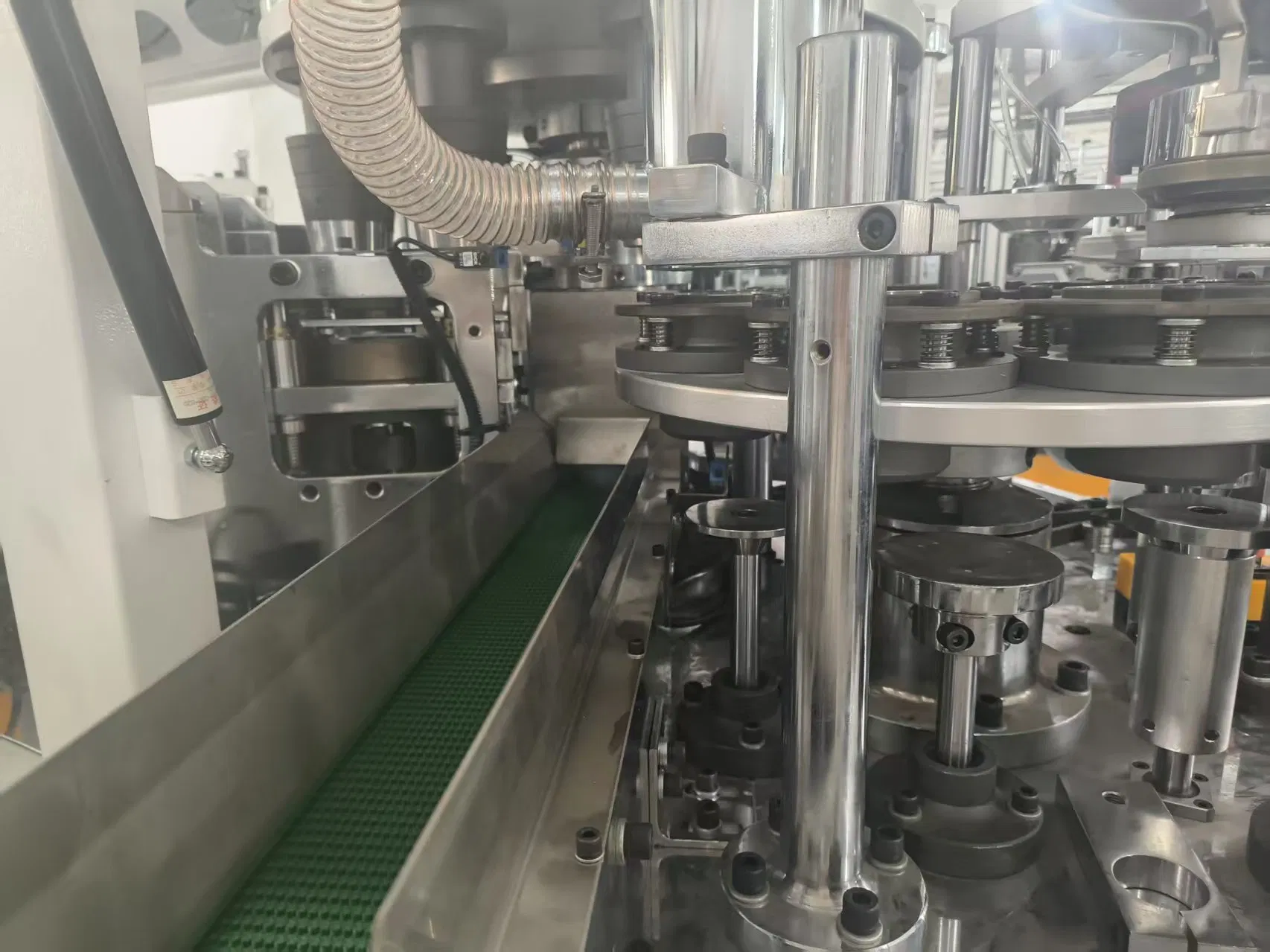

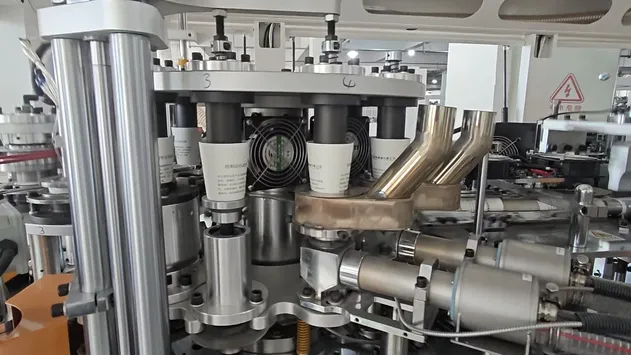

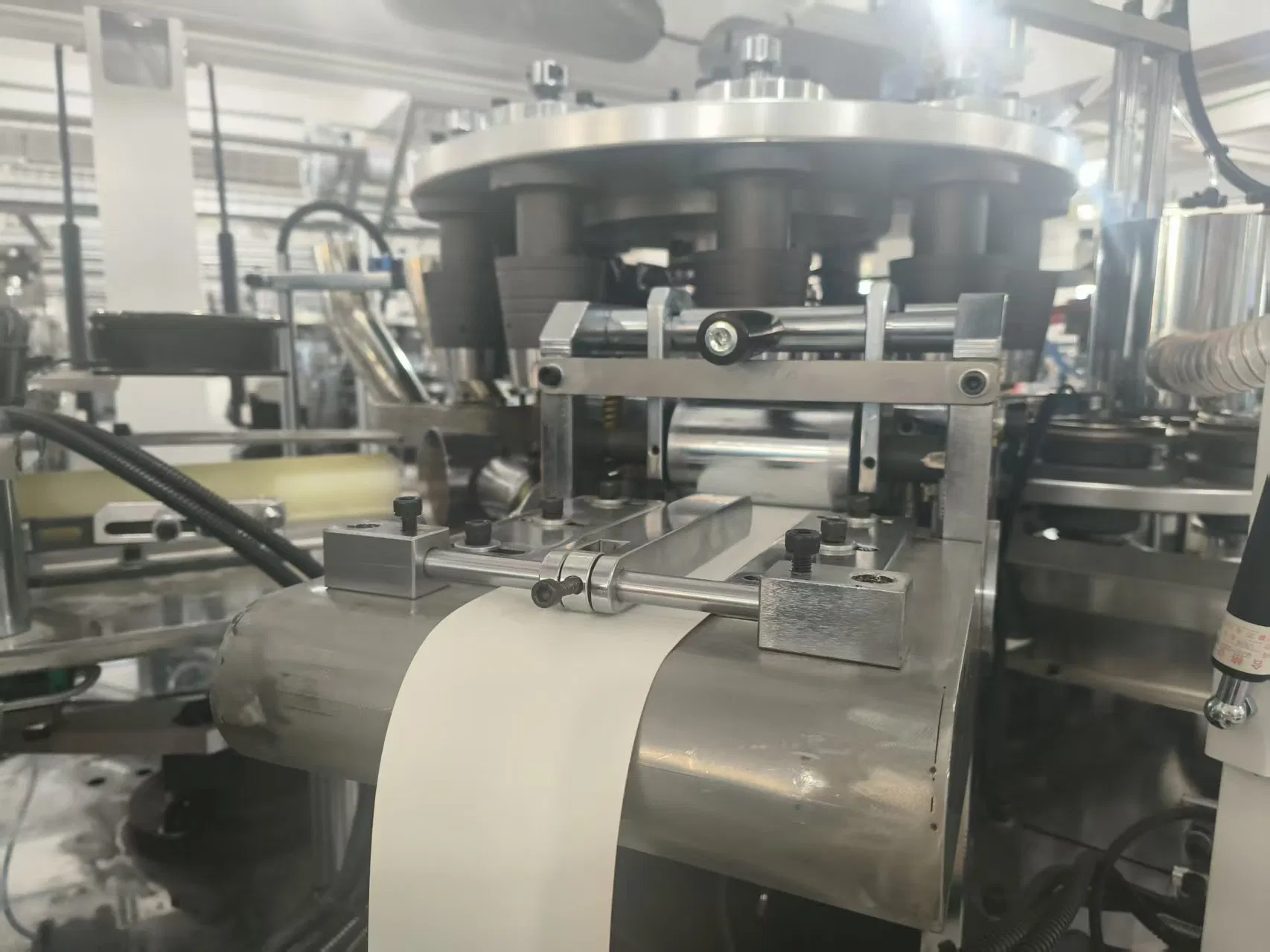

The XL-160S features a tabletop layout, isolating drive components below and molds above for easy cleaning. It utilizes automatic spray lubrication, longitudinal drive structure, and gear drive for maximum stability.

Capacity: 150-160 pcs/min
Application: Hot and cold cups (5 to 16 OZ)

📋 Technical Specifications

Model name	XL-160S
Weight	4000 kg
Packing Size	2800 x 1100 x 1800 mm
Power Supply	3 phase 380V
Compressed Air	0.6-0.8MPa, 0.5m³/min
Production Capacity	150-160 pcs/min
Paper Type	Single/Double PE Coated or PLA
Paper Weight	210-330gsm

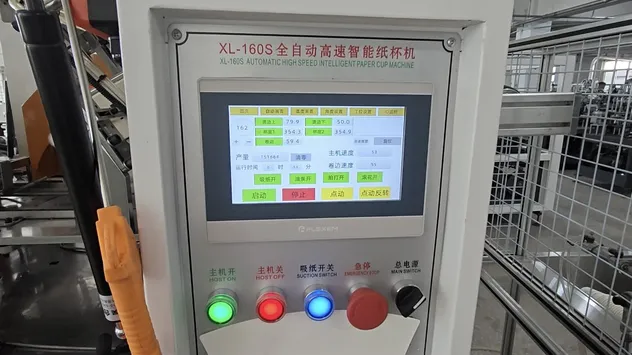

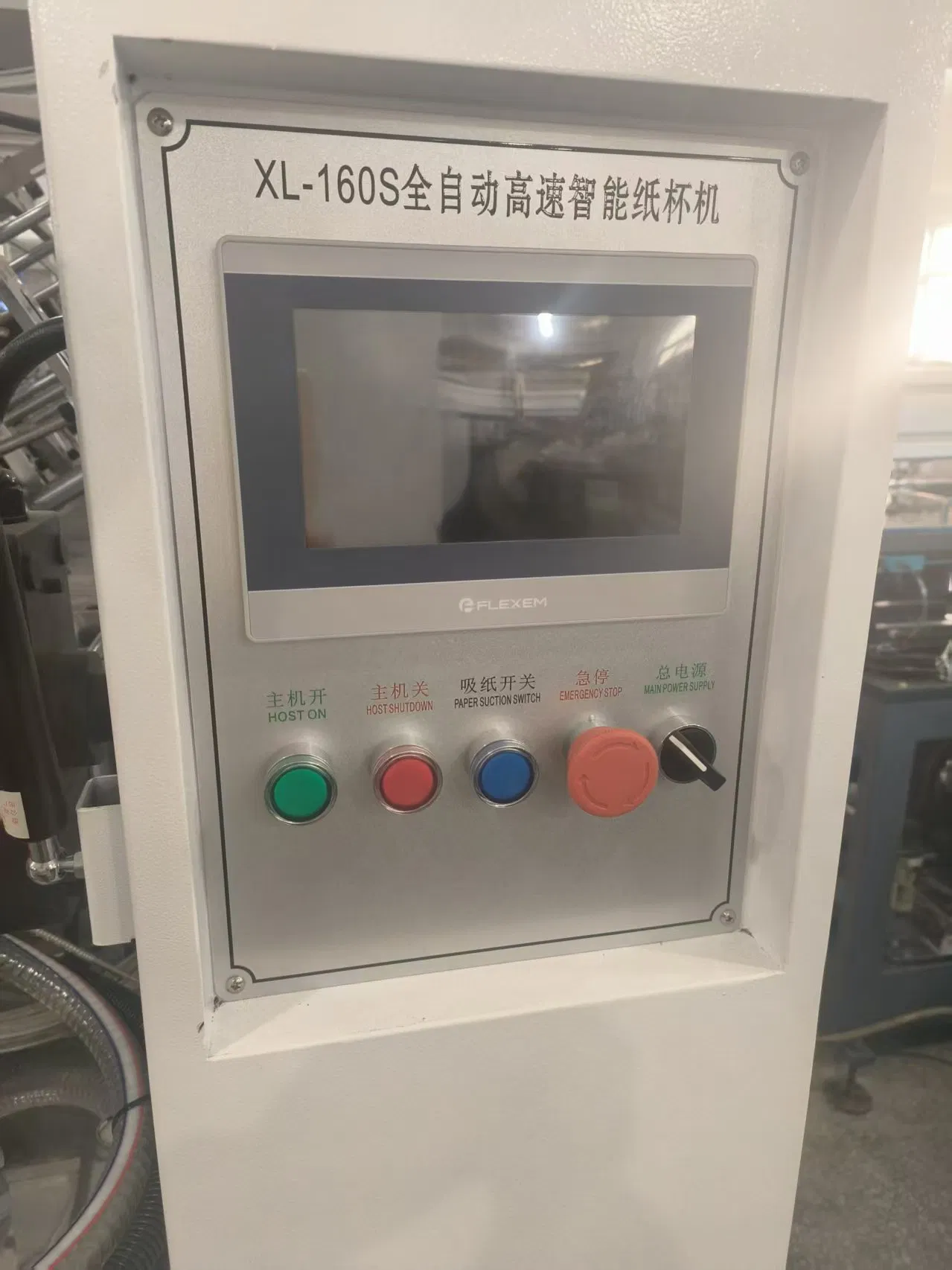

Control Panel	10 inch Touch Screen

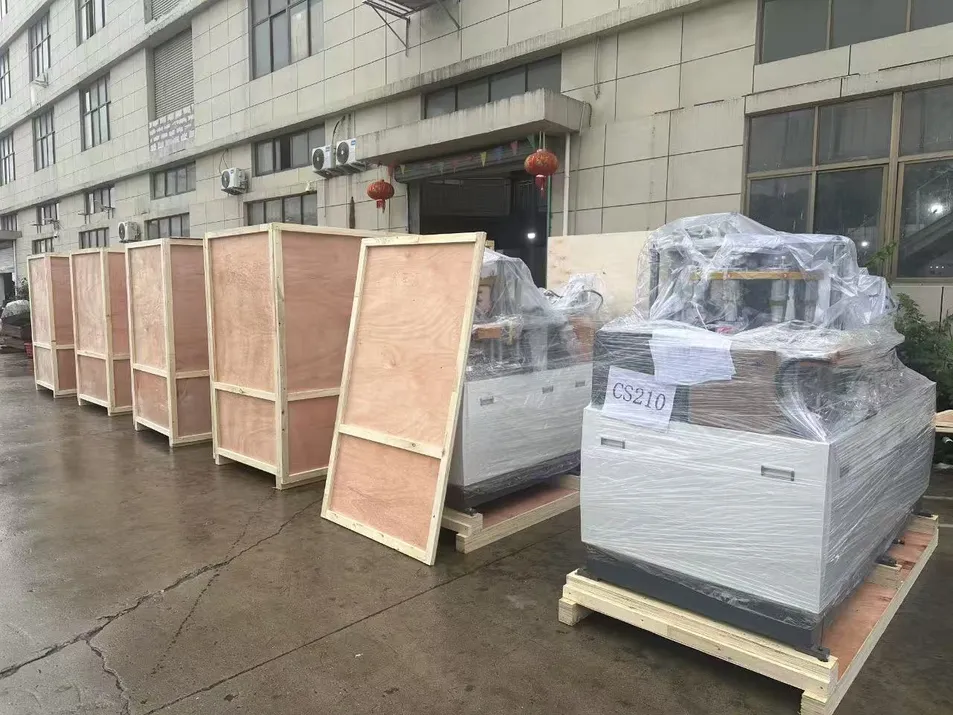

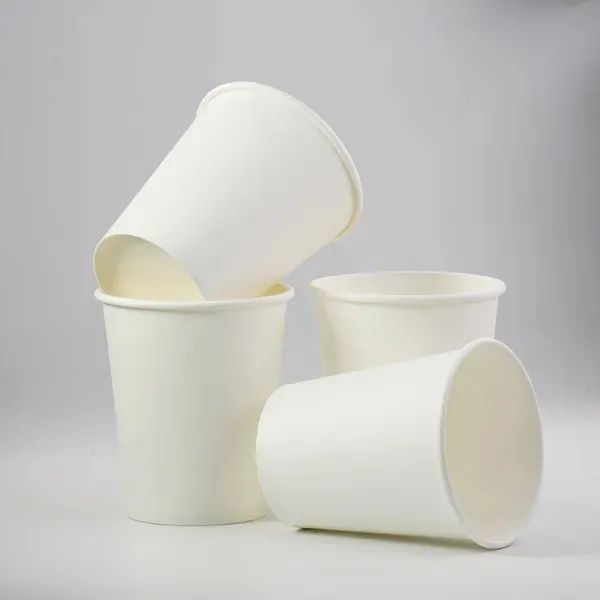

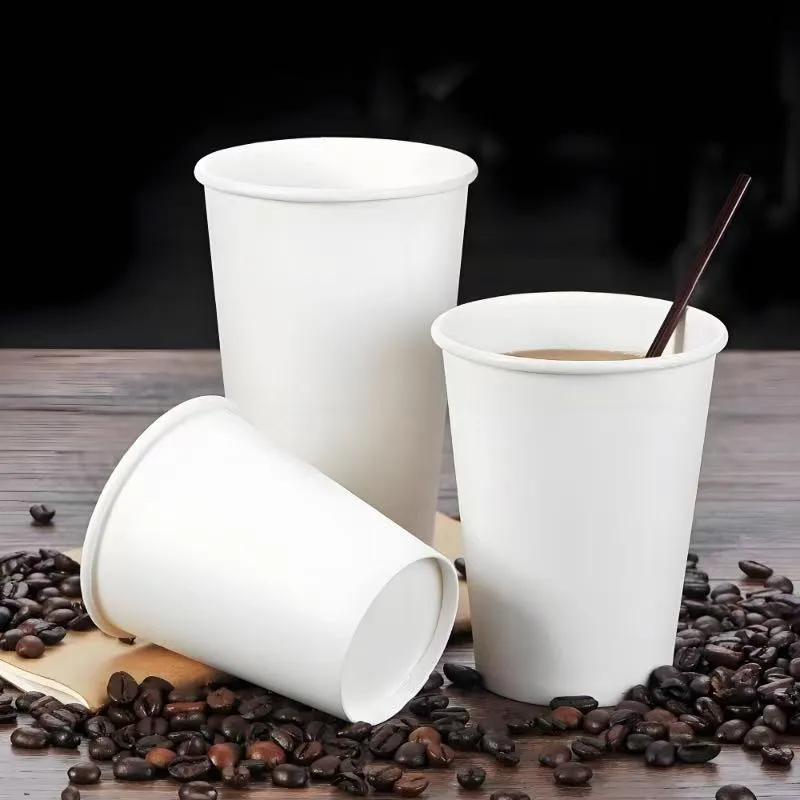

☕ Sample Products & Shipping

🏢 Company Profile

Professional Paper Cup Machine Manufacturer

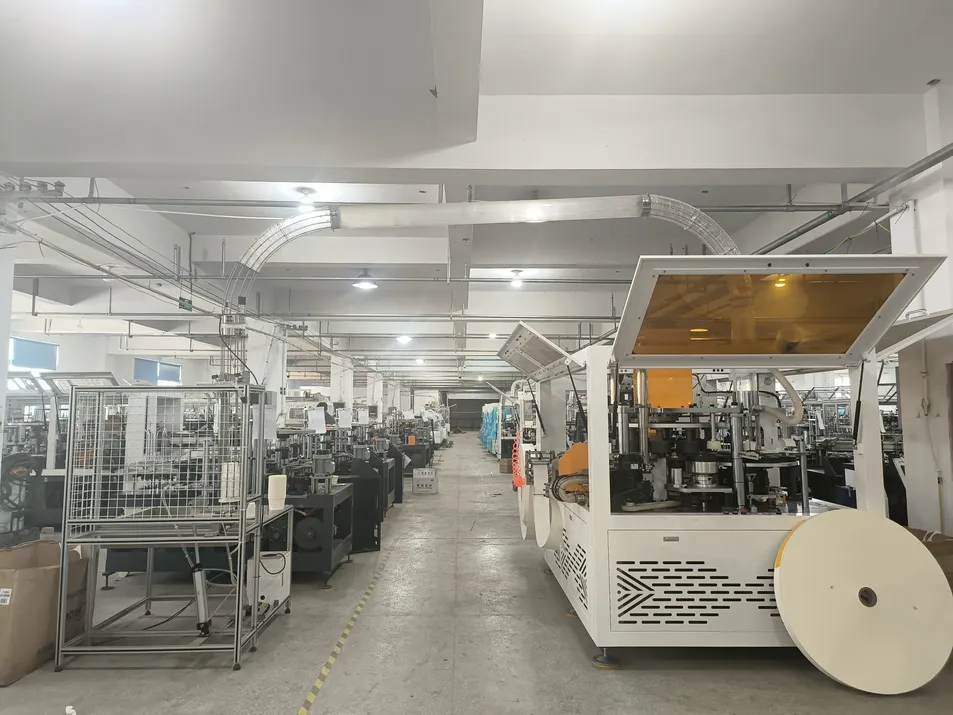

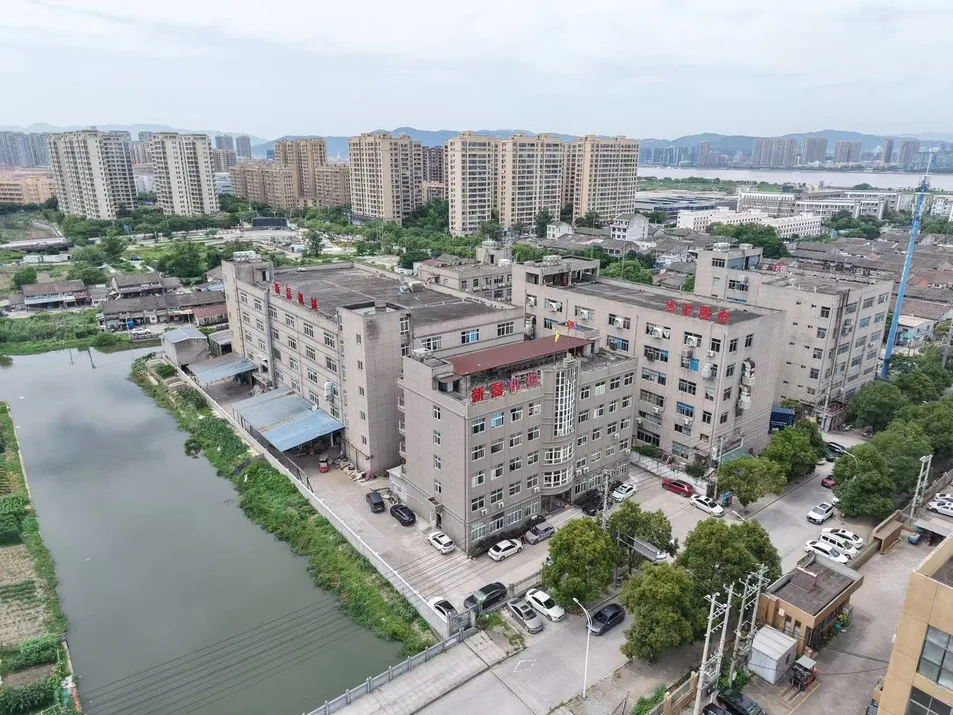

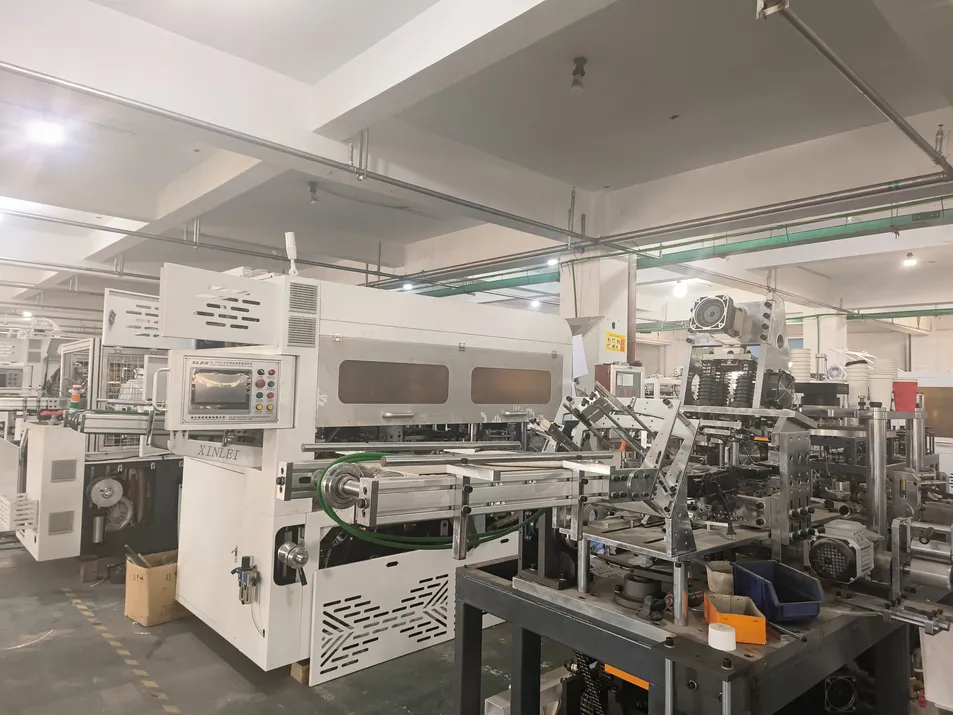

We operate a 10,000 square meter production workshop with a complete pre-sales and after-sales team. We are a manufacturing factory with independent import and export rights, ensuring advantageous pricing and a comprehensive service experience.

❓ Frequently Asked Questions

What is the manufacturing time for orders?

Standard models typically ship in 30-35 days, while customized units require approximately 40–45 days.

What documents do you provide for export?

We provide a full export documentation package, including the Commercial Invoice, Packing List, and Bill of Lading.

What should I do after receiving the machine?

All machines are fully debugged before delivery. You will receive a debugging video for inspection. Upon arrival, the machine is "plug and play" after unpacking and connecting the power supply.

What are the accepted payment methods?

We require a 30% deposit via T/T in advance, with the remaining 70% balance paid via T/T before shipment.

Can the machine be customized for specific cup sizes?

Yes, custom configurations and mold adjustments are available upon request to meet your specific production needs.

What other products do you manufacture?

In addition to high-speed paper cup machines, we produce double wall paper cup machines, paper bowl making machines, and both semi-automatic and full-automatic paper bag making machines.
