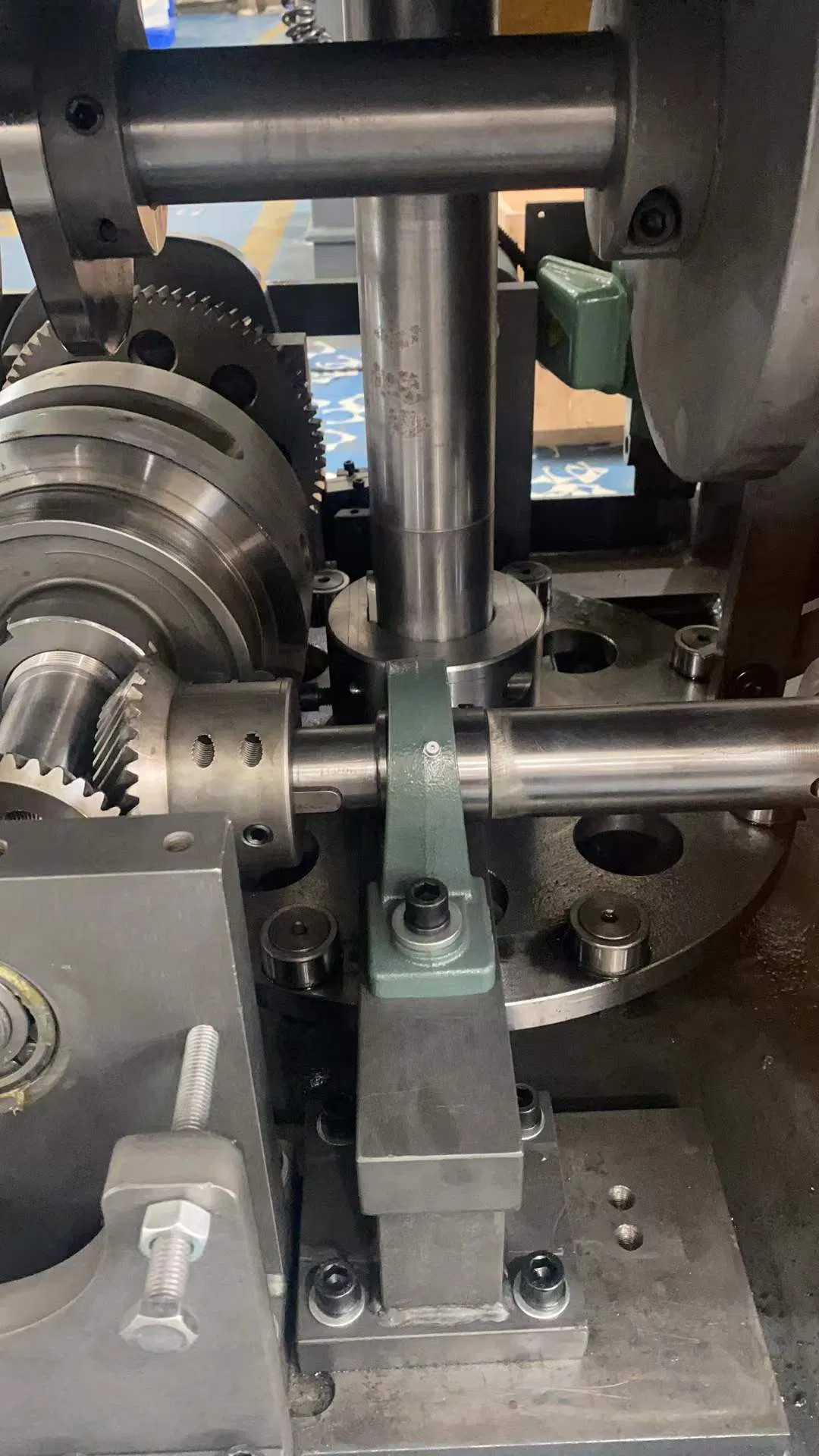

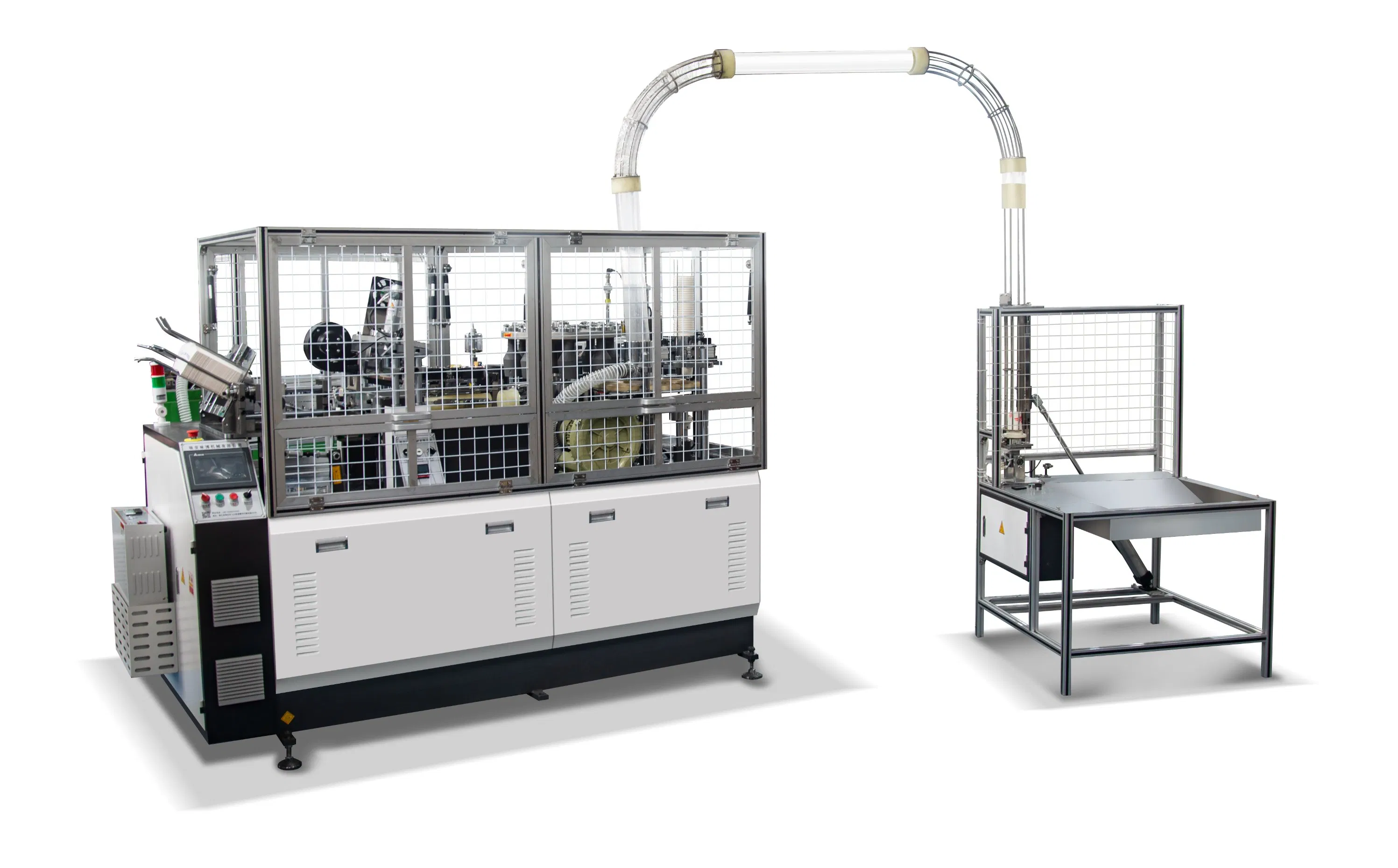

Yongbo Ruian High Speed Paper Cup Forming Machine Yb-Wt70
Yongbo Ruian High Speed Paper Cup Forming Machine Yb-Wt70
Yongbo Ruian High Speed Paper Cup Forming Machine Yb-Wt70
Yongbo Ruian High Speed Paper Cup Forming Machine Yb-Wt70
Yongbo Ruian High Speed Paper Cup Forming Machine Yb-Wt70
1 / 5
Yongbo Ruian High Speed Paper Cup Forming Machine Yb-Wt70
Yongbo Ruian High Speed Paper Cup Forming Machine Yb-Wt70
Yongbo Ruian High Speed Paper Cup Forming Machine Yb-Wt70
Yongbo Ruian High Speed Paper Cup Forming Machine Yb-Wt70
Yongbo Ruian High Speed Paper Cup Forming Machine Yb-Wt70

Yongbo Ruian High Speed Paper Cup Forming Machine Yb-Wt70

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.
YB-WT70
Cup Size
2-12OZ
Speed
80-100pcs/min
Required Paper
Single and Double Side PE Coated Paper
Automation
Automatic
Certification
CE
Condition
New
After-sales
12 Month
📋

Product Description

High Speed Paper Cup Forming Machine
🔹
Quotation: YB-WT70 Double Wall Paper Cup Machine FOB Ningbo.
🔹
Packing Type: Wooden base plate, damp proof plastic lining, fully-closed plate-box external.
🔹
Delivery Time: 30 days after receiving the deposit payment.
🔹
Payment Terms: 30% deposit by T/T in advance, 70% balance after qualified acceptance before delivery.
🔹
Guarantee: 12 months guarantee period after receiving the machine.
🔍

Brief Description

The YB-WT70 high-speed double wall paper cup forming machine is a multi-station high speed paper cup making equipment, mainly utilized for making the outer-sleeve of paper cups and paper bowls. The paper cup former is installed with a frequency converter, forming and sealing equipment and other devices, thereby realizing a huge output.

Machine Detail 1
Machine Detail 2
Machine Detail 3
Machine Detail 4

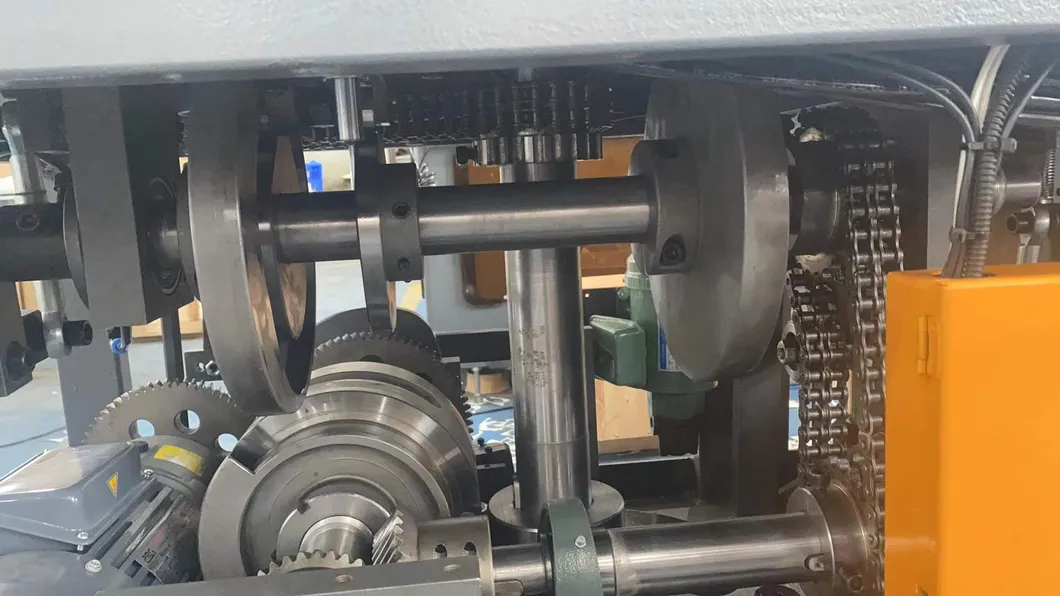

Machine Detail 5

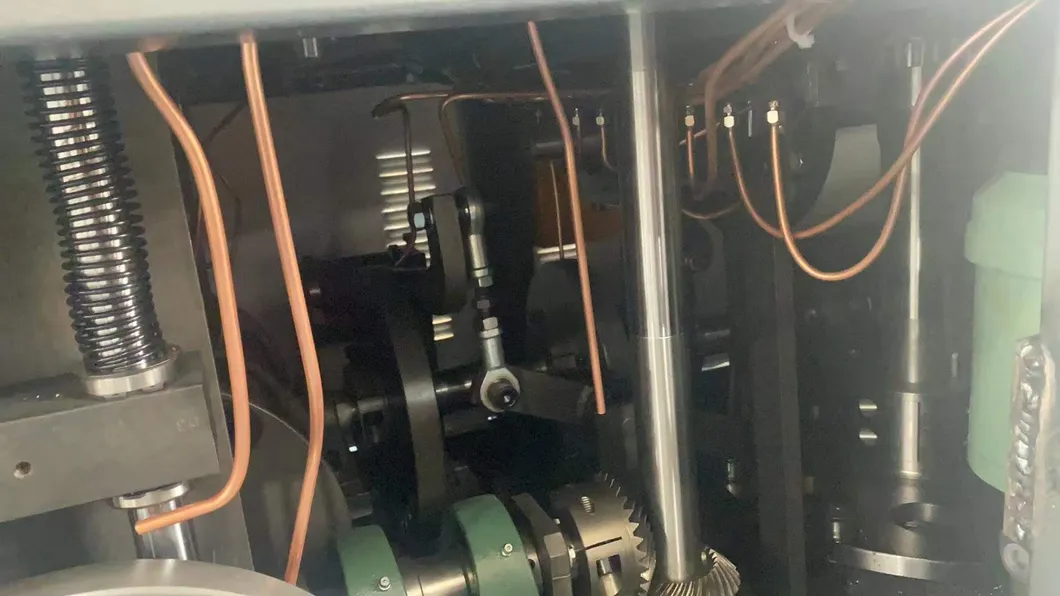

Machine Detail 6

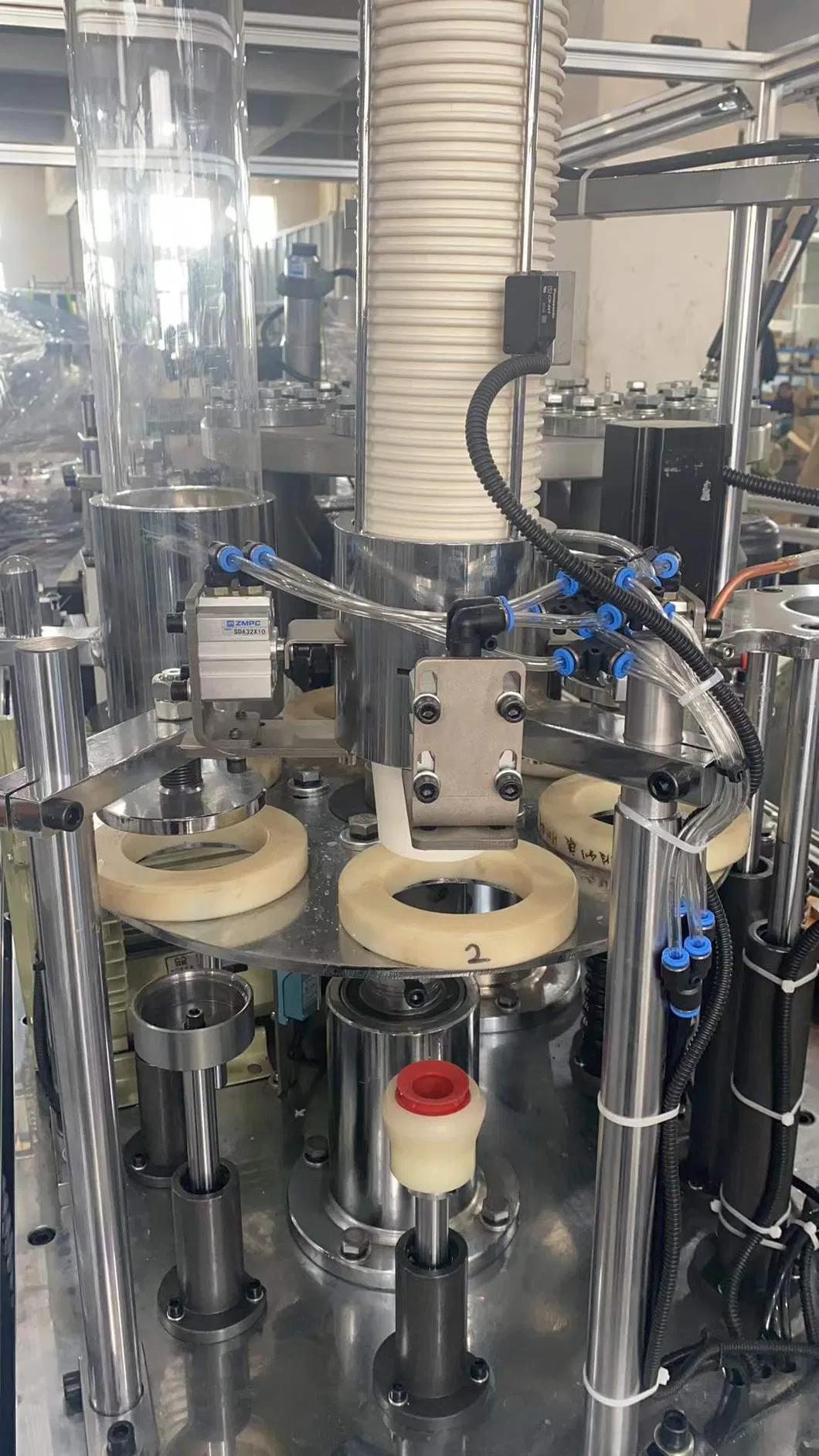

Machine Detail 7

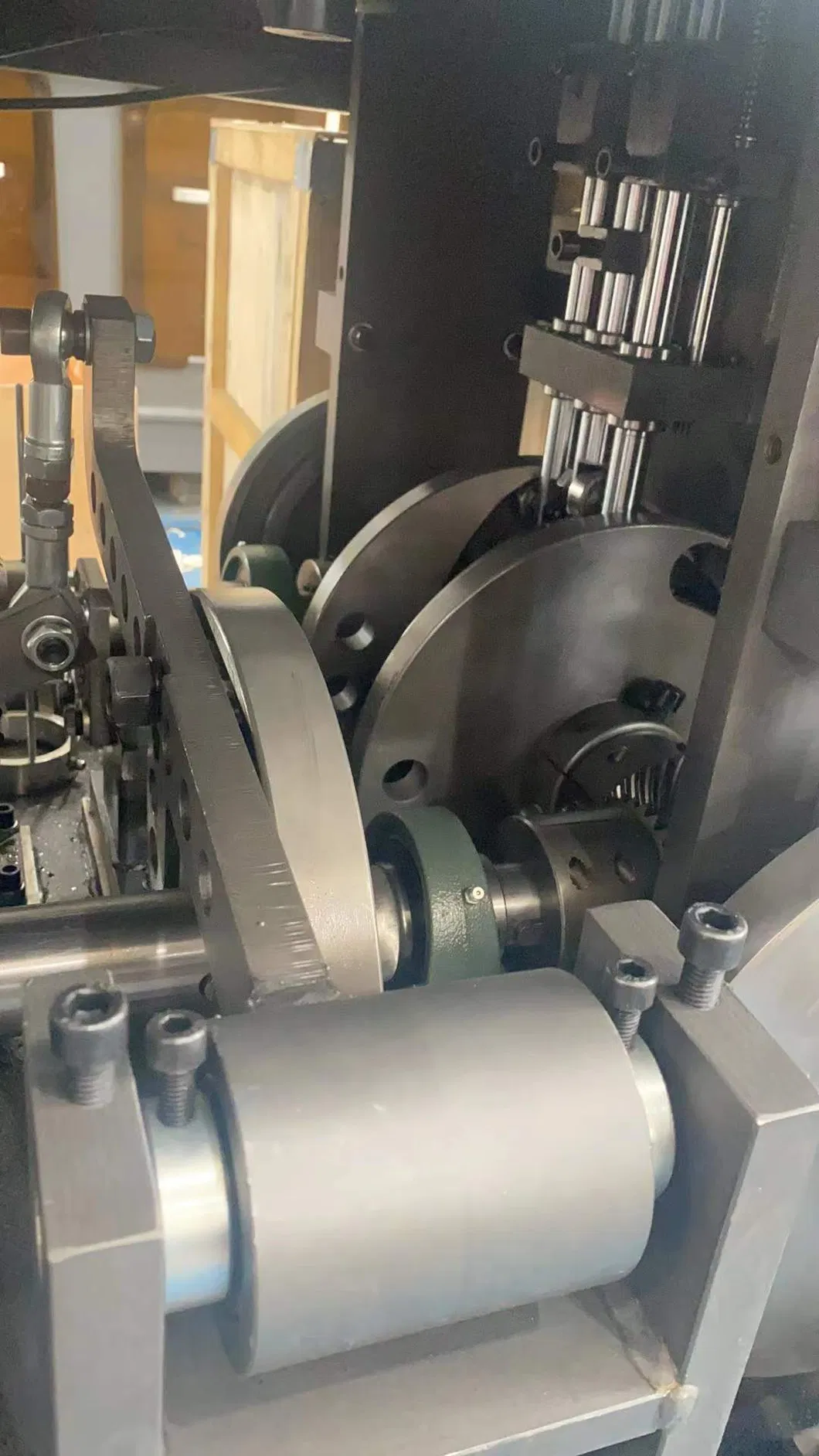

Machine Detail 8
☕

Samples

Paper Cup Samples
⚙️

Main Technical Specification

Paper Cup Specification4-12oz (mold exchangeable)
Paper Specification150-350 GSM single/double PE coated paper
Production Capacity70-90 pcs/min
Power Source380V 50HZ 3Phases
Average Power5KW (glue box 3.8KW)
Air Supply RequirementPressure: 0.4 Mpa; Output: 0.6cbm/min
Total Weight1700KG
Package Size (L*W*H)2350*960*1700mm
🏭

Production Environment

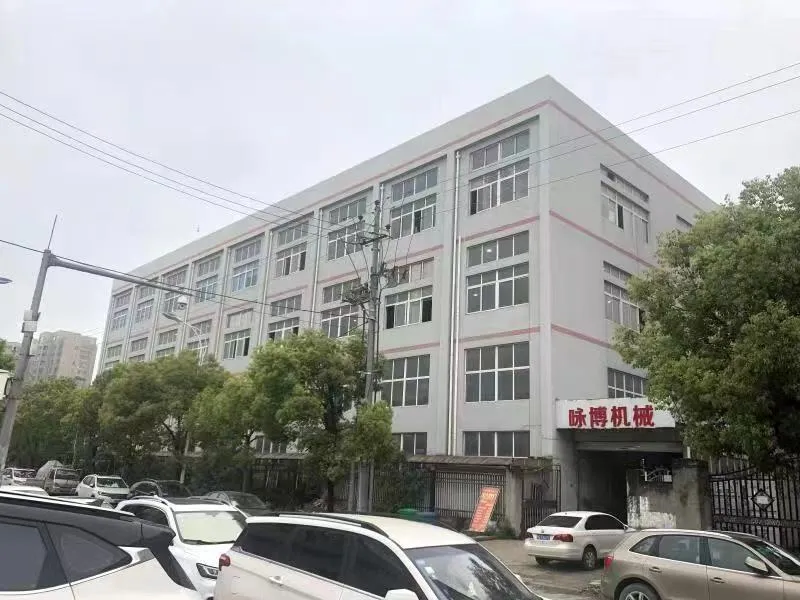

Factory View 1

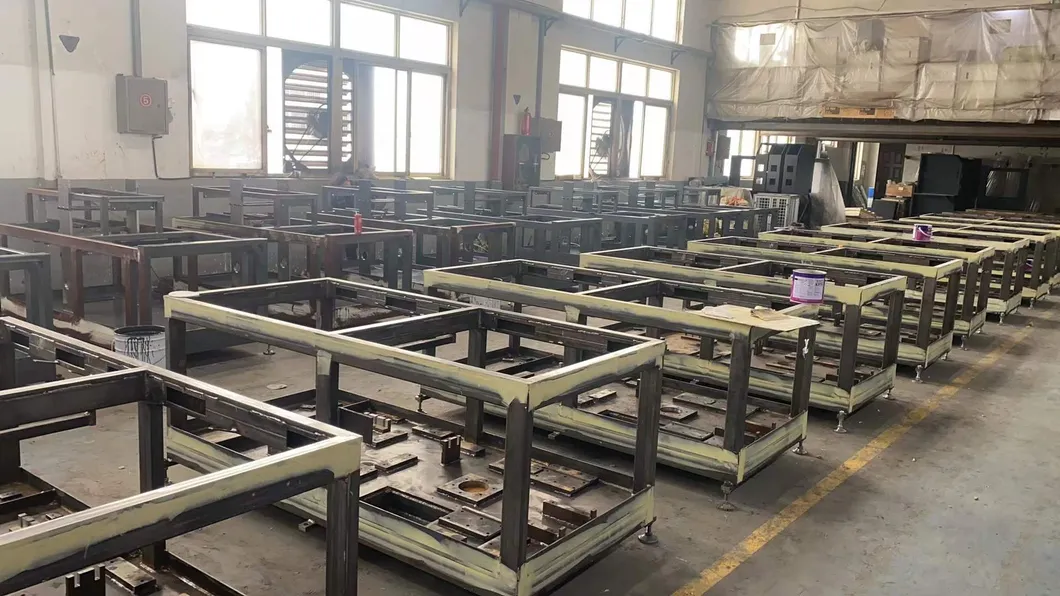

Factory View 2
Factory View 3

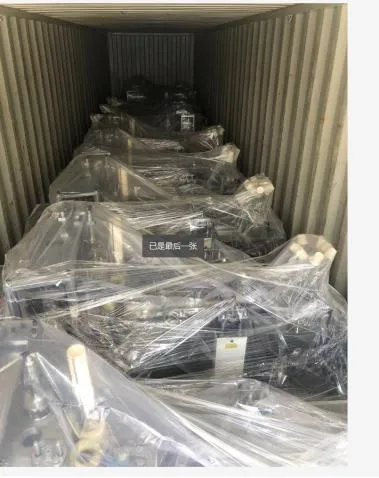

Factory View 4

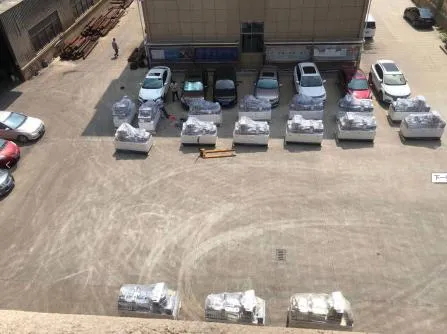

Factory View 5
Factory View 6

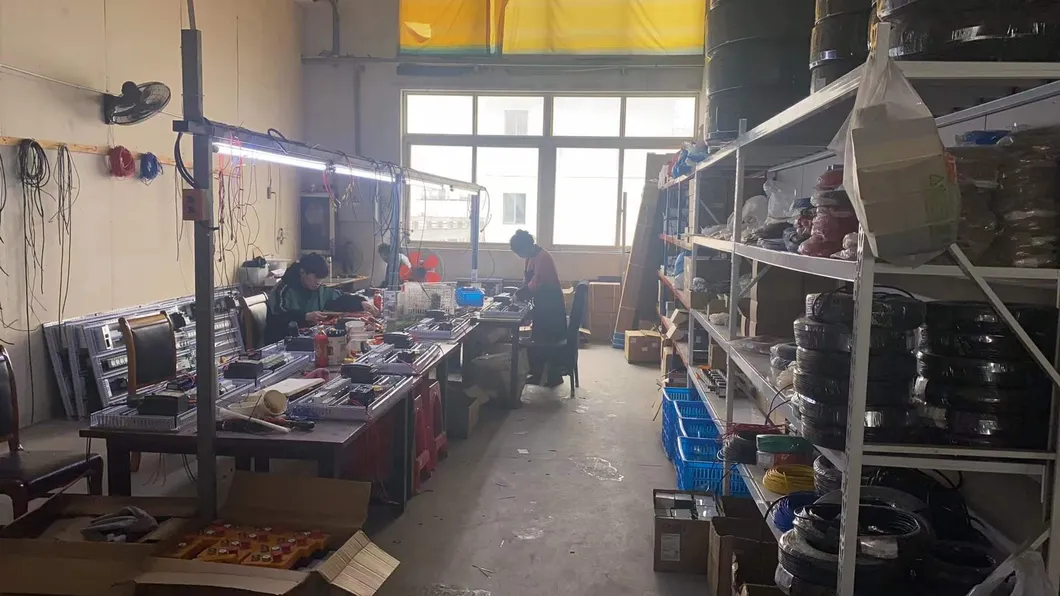

Factory View 7

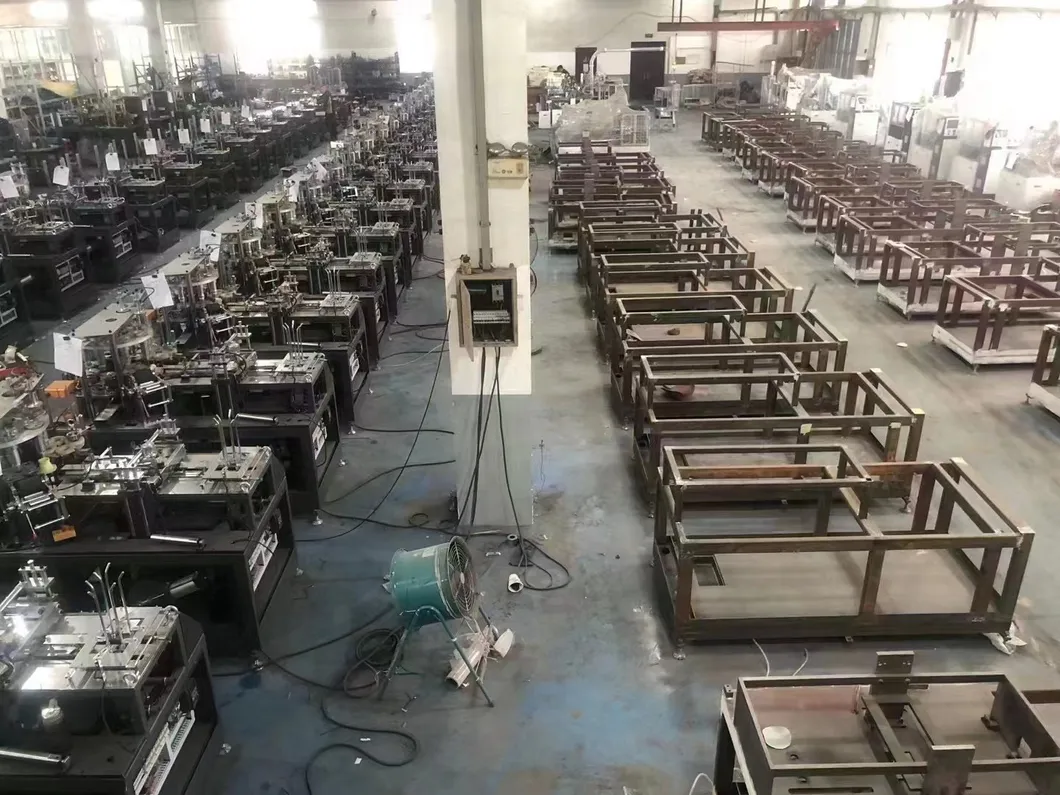

Factory View 8

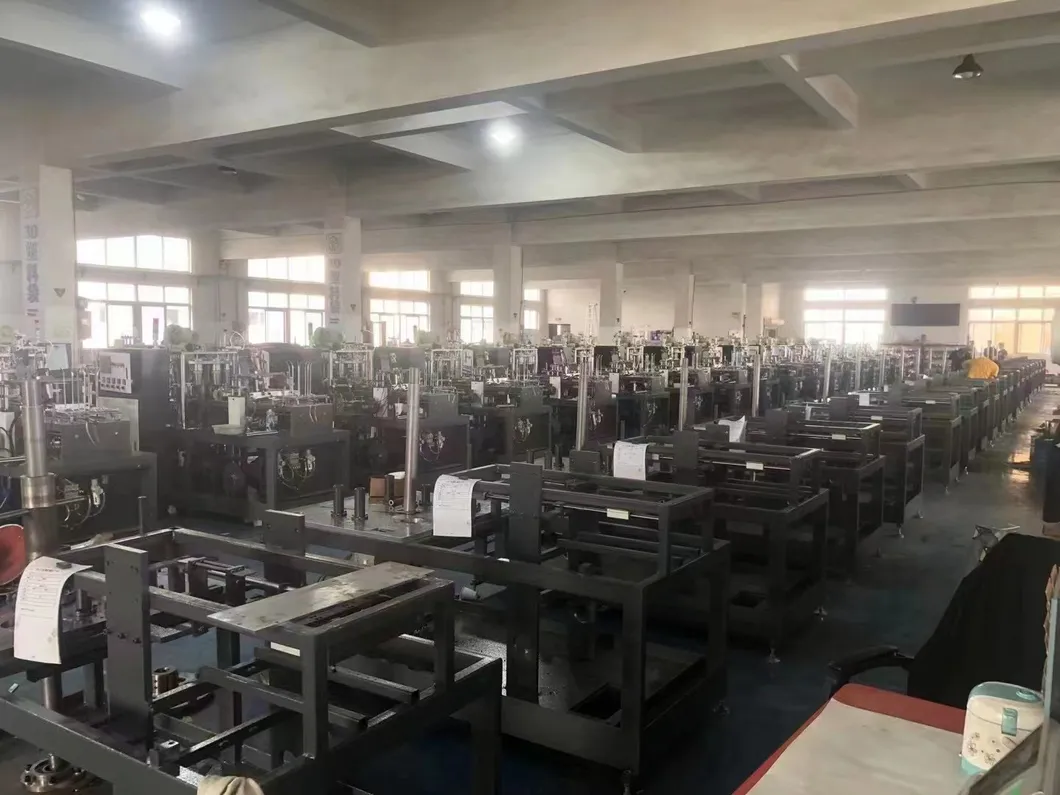

Factory View 9
❓

Frequently Asked Questions

1. What is the production speed of the YB-WT70 machine?
The machine operates at a high speed of 80-100 pieces per minute, with a stable production capacity of 70-90 pcs/min depending on the material.
2. What range of cup sizes can this machine produce?
It is designed for cup sizes ranging from 2oz to 12oz. The molds are exchangeable to accommodate different specifications within this range.
3. What kind of paper material is required?
The machine is compatible with both single and double-side PE coated paper, with a weight range of 150 to 350 GSM.
4. What are the power and air supply requirements?
It requires a 380V 50HZ 3-phase power source and an air supply with 0.4 Mpa pressure and 0.6cbm/min output.
5. Is there a guarantee period for the equipment?
Yes, we provide a 12-month guarantee period starting from the date the machine is received.
6. Do you provide installation and training services?
Yes, technicians can be sent for installation, debugging, and training of your personnel upon request.
